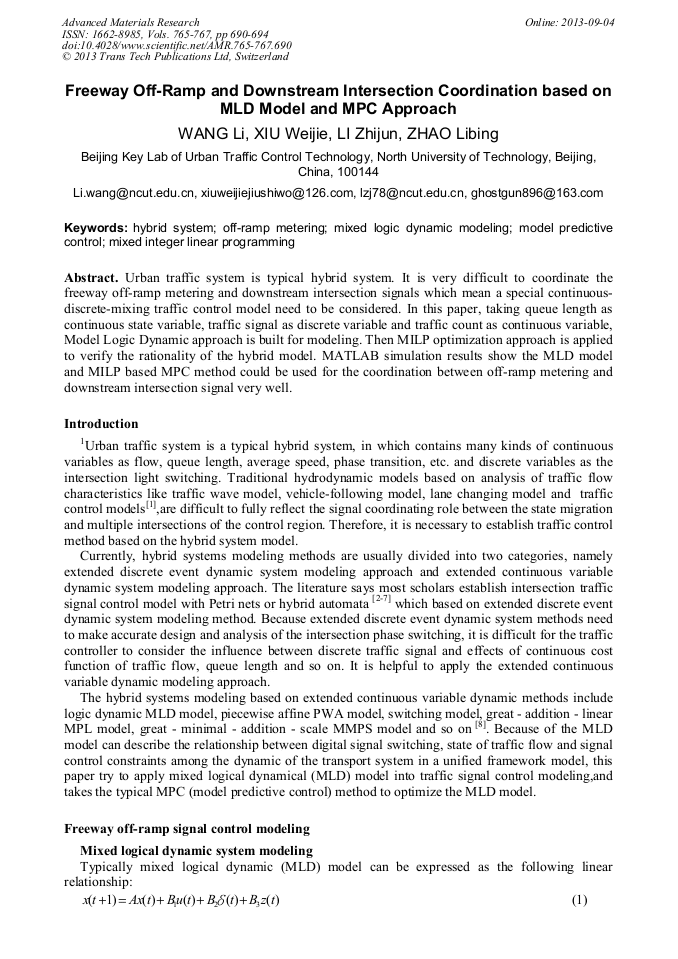

Freeway Off-Ramp and Downstream Intersection Coordination Based on MLD Model and MPC Approach

Abstract:

Urban traffic system is typical hybrid system. It is very difficult to coordinate the freeway off-ramp metering and downstream intersection signals which mean a special continuous-discrete-mixing traffic control model need to be considered. In this paper, taking queue length as continuous state variable, traffic signal as discrete variable and traffic count as continuous variable, Model Logic Dynamic approach is built for modeling. Then MILP optimization approach is applied to verify the rationality of the hybrid model. MATLAB simulation results show the MLD model and MILP based MPC method could be used for the coordination between off-ramp metering and downstream intersection signal very well.

• Periodical: Advanced Materials Research (Volumes 765-767)
• Pages: 690-694
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.765-767.690
• Online since: September 2013
• Authors: Li Wang, Wei Jie Xiu, Zhi Jun Li, Li Bing Zhao
• Keywords: Hybrid System, Mixed Integer Linear Programming, Mixed Logic Dynamic Modeling, Model Predictive Control (MPC), Off-Ramp Metering

References

[1] Hoogendoorn S.P., Bovy P.H.L. State-of-the-art of vehicular traffic flow modeling. [EB/OL] http: /citeseerx. ist. psu. edu/viewdoc/ summary?doi=10. 1. 1. 106. 9913, TU Delft digital repository (Netherlands).

[2] Júlvez,J., Boel R.K. A continuous Petri net approach for model predictive control of traffic systems[J]. IEEE Transactions on Systems, Man and Cybernetics, Part A: Systems and Humans., 2010, 686-697.

DOI: 10.1109/tsmca.2010.2041448

[3] Dotoli, M., Fanti, M.P., Iacobellis, G. Validation of an Urban Traffic Network Model using Colored Timed Petri Nets[J]. IEEE International Conference on Systems, Man and Cybernetics. Oct. 2005, 1347-1352.

DOI: 10.1109/icsmc.2005.1571334

[4] Badamchizadeh, M.A., Joroughi, M. Deterministic and stochastic Petri net for urban traffic systems[C]. IEEE 2nd International Conference on Computer and Automation Engineering (ICCAE), 2010: 364-368.

DOI: 10.1109/iccae.2010.5451406

[5] Chen Yangzhou, Li Hongfeng, Ni Jin. Periodic linear differential automata modeling and analysis of T shaped intersection signal timing [J]. Control Theory and Applications, 2011, 28 (12): 1773-1778.

[6] Ni Jin, Chen Yangzhou, Zhang Liguo, Li Hongfeng. Hybrid automata model and signal coordination control of two adjacent intersections [J]. Traffic Information and Security, 2011, 29 (3): 5-9.

[7] Fan Liquan, Chen Yangzhou, Li Zhenlong. Freeway area-wide coordinated control research based on hybrid fuzzy switching [J]. Ttraffic Information and Safety, 2009, S1: 44-48.

[8] Zou Yuanyuan. Prediction controller design and performance analysis of hybrid dynamic system [D]. Shanghai: Shanghai Jiao Tong University, 2009. 9.

[9] Yao Ronghan, Wang Dianhai. The maximum equivalent queue length model and its spatiotemporal properties [J]. Journal of Dalian University of Technology, 2010, 50 (5): 699-70.
