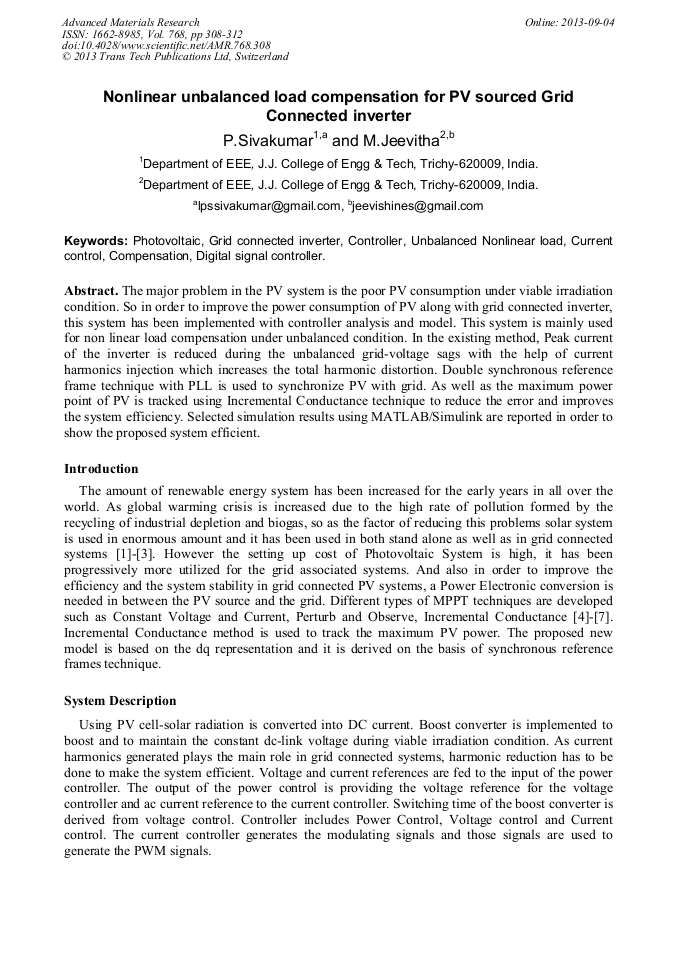

Nonlinear Unbalanced Load Compensation for PV Sourced Grid Connected Inverter

Abstract:

The major problem in the PV system is the poor PV consumption under viable irradiation condition. So in order to improve the power consumption of PV along with grid connected inverter, this system has been implemented with controller analysis and model. This system is mainly used for non linear load compensation under unbalanced condition. In the existing method, Peak current of the inverter is reduced during the unbalanced grid-voltage sags with the help of current harmonics injection which increases the total harmonic distortion. Double synchronous reference frame technique with PLL is used to synchronize PV with grid. As well as the maximum power point of PV is tracked using Incremental Conductance technique to reduce the error and improves the system efficiency. Selected simulation results using MATLAB/Simulink are reported in order to show the proposed system efficient.

• Periodical: Advanced Materials Research (Volume 768)
• Pages: 308-312
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.768.308
• Online since: September 2013
• Authors: P. Sivakumar, M. Jeevitha
• Keywords: Compensation, Controller, Current Control, Digital Signal Controller, Grid Connected Inverter, Photovoltaic (PV), Unbalanced Nonlinear Load

References

[1] S. B. Kjaer, J. K. Pedersen, and F. Blaabjerg, A review of single-phase grid-connected inverters for photovoltaic modules, IEEE Trans. Ind. Appl., vol. 41, no. 5, p.1292–1306, Sep. /Oct. (2005).

DOI: 10.1109/tia.2005.853371

[2] Jaume Miret, Miguel Castilla, Antonio Camacho, Luis Garcia de Vicuna, and Jose Matas, Current control reference calculation issues for the operation of renewable source grid interface VSCs under unbalanced voltage sags, IEEE transactions on power electronics, Vol. 27. NO. 10. OCTOBER (2012).

DOI: 10.1109/tpel.2011.2167761

[3] Jan T. Bialasiewicz, Renewable Energy Systems With Photovoltaic Power Generators: Operation and Modeling, IEEE transactions on industrial electronics, vol. 55, no. 7, july (2008).

DOI: 10.1109/tie.2008.920583

[4] Mr.A. Hari Prasad, Mr.Y. Rajasekhar Reddy and Dr. P.V. Kishore, Photovoltaic Cell as Power Quality conditioner for Grid connected system, International Journal of Scientific & Engineering Research Volume 2, Issue 10, Oct-(2011).

[5] Amirnaser Yazdani, and Prajna Paramita Dash, A Control Methodology and Characterization of Dynamics for a Photovoltaic System Interfaced with a Distribution Network, IEEE transactions on Power Delivery, vol. 24, no. 3, July-(2009).

DOI: 10.1109/tpwrd.2009.2016632

[6] Jaume Miret, Miguel Castilla, Antonio Camacho, Luıs Garcıa de Vicuna, and Jose Matas , Control Scheme for Photovoltaic Three-Phase Inverters to Minimize Peak Currents During Unbalanced Grid-Voltage Sags, IEEE transactions on Power Electronics, Vol. 27, No. 10, October (2012).

DOI: 10.1109/tpel.2012.2191306

[7] Jiabing Hu, Yikang He, Modeling and Control of Grid-Connected Voltage-Sourced Converters under Generalized Unbalanced Operation Conditions, IEEE transactions on energy conversion, vol. 23, no. 3, september (2008).

DOI: 10.1109/tec.2008.921468

[8] Michael E. Ropp and Sigifredo Gonzalez, Development of MATLAB/SIMULINK model of a single phase grid-connected photovoltaic system, IEEE transactions on energy conversion (2009).

DOI: 10.1109/tec.2008.2003206

[9] Jaume Miret, Miguel Castilla, Antonio Camacho, Luis Garcia de Vicuna, and Jose Matas, Current control reference calculation issues for the operation of renewable source grid interface VSCs under unbalanced voltage sags, IEEE transactions on power electronics, Vol. 27. NO. 10. OCTOBER (2012).

DOI: 10.1109/tpel.2011.2167761

[10] Yousef Mahmoud, W. Xiao and H. H. Zeineldin, A Simple Approach to Modeling and Simulation of Photovoltaic Modules, IEEE transactions on Sustainable Energy, Vol. 3, No. 1, January (2012).

DOI: 10.1109/tste.2011.2170776

[11] Andreas Theocharis, Thomas Zacharias, Dimitrios Tsanakas and John Milias-Argitis, Modeling of a grid connected photovoltaic system using a Geometrical Transformer Model, Zeszyty Problemowe – Maszyny Elektryczne Nr 84/(2009).

[12] Rym Marouani and Abdelkader Mami, Voltage Oriented Control Applied to a Grid Connected Photovolatic System with Maximum Power Point Tracking Technique, American Journal of Applied Science 7(8): 1168-1173, 2010 ISSN 1546-9239.

DOI: 10.3844/ajassp.2010.1168.1173

[13] N. Kroutikova, C.A. Hernandez-Aramburo and T.C. Green, State-space model of grid-connected inverters, IET Electr. Power Appl., (2007).

DOI: 10.1049/iet-epa:20060276
