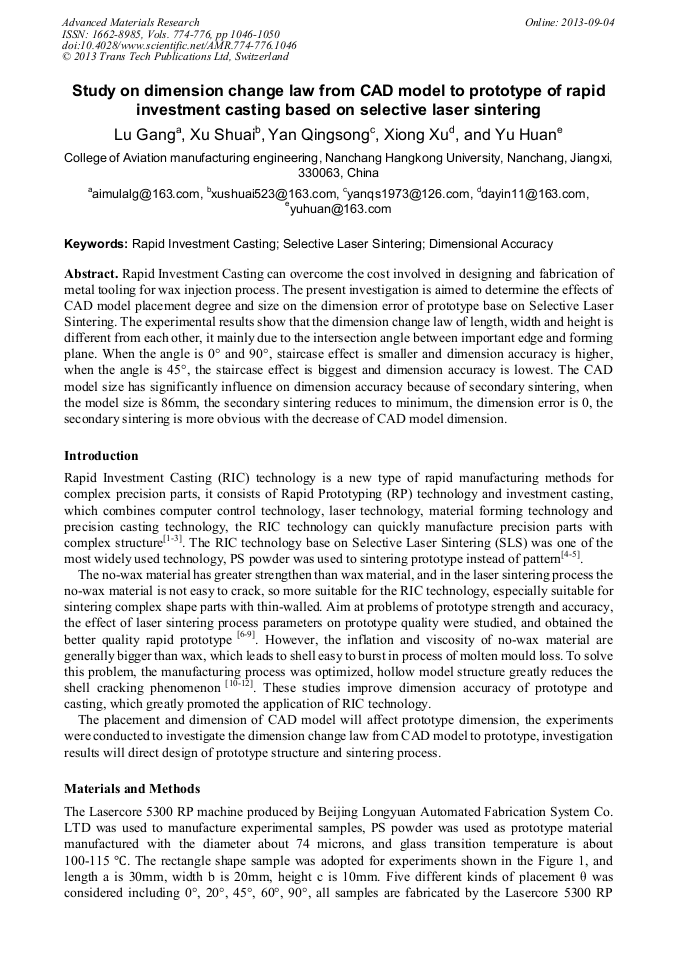

Study on Dimension Change Law from CAD Model to Prototype of Rapid Investment Casting Based on Selective Laser Sintering

Abstract:

Rapid Investment Casting can overcome the cost involved in designing and fabrication of metal tooling for wax injection process. The present investigation is aimed to determine the effects of CAD model placement degree and size on the dimension error of prototype base on Selective Laser Sintering. The experimental results show that the dimension change law of length, width and height is different from each other, it mainly due to the intersection angle between important edge and forming plane. When the angle is 0° and 90°, staircase effect is smaller and dimension accuracy is higher, when the angle is 45°, the staircase effect is biggest and dimension accuracy is lowest. The CAD model size has significantly influence on dimension accuracy because of secondary sintering, when the model size is 86mm, the secondary sintering reduces to minimum, the dimension error is 0, the secondary sintering is more obvious with the decrease of CAD model dimension.

• Periodical: Advanced Materials Research (Volumes 774-776)
• Pages: 1046-1050
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.774-776.1046
• Online since: September 2013
• Authors: Gang Lu, Shuai Xu, Qing Song Yan, Xu Xiong, Huan Yu
• Keywords: Dimensional Accuracy, Rapid Investment Casting, Selective Laser Sintering

References

[1] Wu H.H., Li D.C., Chen X.J. Rapid casting of turbine blades with abnormal film cooling holes using integral ceramic casting molds[J]. The International Journal of Advanced Manufacturing Technology, 2010, 50(1): 13~19.

DOI: 10.1007/s00170-009-2502-0

[2] B. Mondal., S. Kundu., A. K. Lohar., ea al. Net-shape manufacturing of intricate components of A356/SiCp composite through rapid-prototyping-integrated investment casting[J]. Materials Science and Engineering A, 2008, 498: 37~41.

DOI: 10.1016/j.msea.2007.10.126

[3] P. C. Maity., J. Maity. Development of high strength ceramic shell for investment casting[J]. Indian Foundry Journal, 2011, 47(7): 23~26.

[4] K. Dotchev., S. Soe. Rapid manufacturing of patterns for investment casting: improvement of quality and success rate[J]. Rapid Prototyping Journal, 2006, 12(3): 156~164.

DOI: 10.1108/13552540610670735

[5] S. P. Soe. Improving dimensional accuracy in the productionof a CastFormTM polystyrene pattern for investment casting[J]. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 2010, 224: 1663~1670.

DOI: 10.1243/09544054jem1566

[6] K. D. Dotchev., S. S. Dimov., D. T. Pham et al. Accuracy issues in rapid manufacturing CastFormTM patterns[J]. Manufacture Engineers, Part B: Journal of Engineering Proceedings of the Institution of Mechanical, 2006, 221: 53~67.

DOI: 10.1243/09544054jem676

[7] C. W. Lee., C. K. Chua., C. M. Cheah., et al. Rapid investment casting: direct and indirect approaches via fused deposition modeling[J]. Adv Manuf Technol, 2004, 23: 93-101.

DOI: 10.1007/s00170-003-1694-y

[8] R. Hague., P. M. Dickens. Improvements in investment casting with stereolithography patterns[J]. Manufacture Engineers, Part B: Journal of Engineering Proceedings of the Institution of Mechanical, 2001, 215: 1~11.

DOI: 10.1243/0954405011515046

[9] Munish Chhabra., Rupinder Singh. Rapid casting solutions: a review. Rapid Prototyping Journal, 2011, 17(5): 328-350.

DOI: 10.1108/13552541111156469

[10] Chen X.J., Li D.C., Wu H.H., et al. Analysis of ceramic shell cracking in stereolithography-based rapid casting of turbine blade[J]. Adv Manuf Technol, 2011, 55: 447~455.

DOI: 10.1007/s00170-010-3064-x

[11] R. Hague., G. D' Costa., P. M. Dickens. Structural design and resin drainage characteristics of QuickCast 2. 0[J]. Rapid Prototyping Journal, 2001, 7(2): 66~72.

DOI: 10.1108/13552540110386682

[12] W. L. Yao., Ming C. Leu. Analysis of shell cracking in investment casting with laser stereolithography patterns[J]. Rapid Prototyping Journal, 1999, 5(1): 12~20.

DOI: 10.1108/13552549910251837
