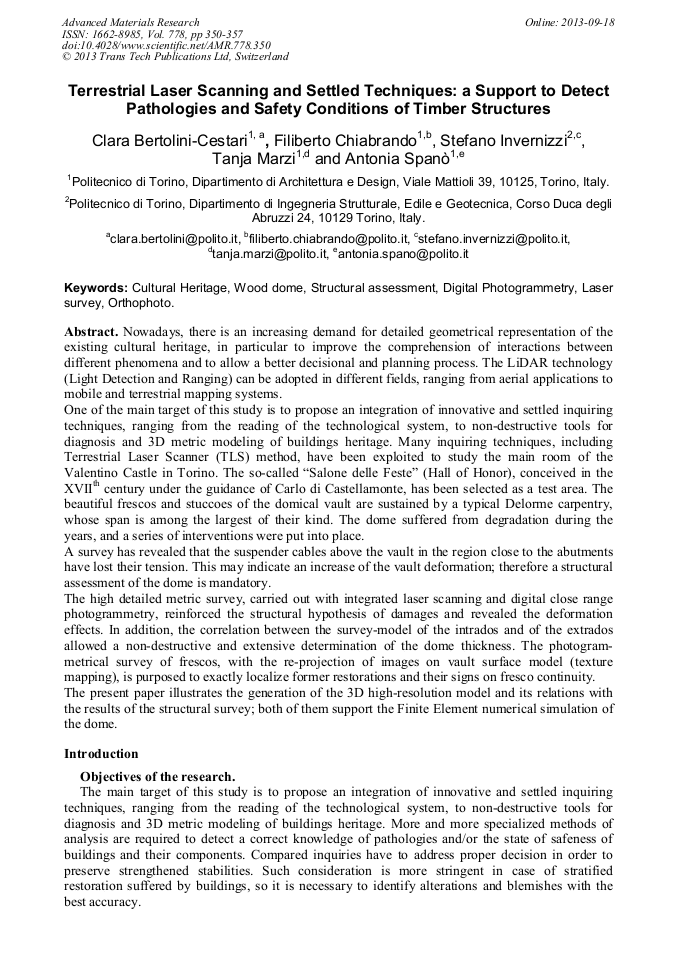

Terrestrial Laser Scanning and Settled Techniques: A Support to Detect Pathologies and Safety Conditions of Timber Structures

Abstract:

Nowadays, there is an increasing demand for detailed geometrical representation of the existing cultural heritage, in particular to improve the comprehension of interactions between different phenomena and to allow a better decisional and planning process. The LiDAR technology (Light Detection and Ranging) can be adopted in different fields, ranging from aerial applications to mobile and terrestrial mapping systems. One of the main target of this study is to propose an integration of innovative and settled inquiring techniques, ranging from the reading of the technological system, to non-destructive tools for diagnosis and 3D metric modeling of buildings heritage. Many inquiring techniques, including Terrestrial Laser Scanner (TLS) method, have been exploited to study the main room of the Valentino Castle in Torino. The so-called “Salone delle Feste”, conceived in the XVII^th century under the guidance of Carlo di Castellamonte, has been selected as a test area. The beautiful frescos and stuccoes of the domical vault are sustained by a typical Delorme carpentry, whose span is among the largest of their kind. The dome suffered from degradation during the years, and a series of interventions were put into place. A survey has revealed that the suspender cables above the vault in the region close to the abutments have lost their tension. This may indicate an increase of the vault deformation; therefore a structural assessment of the dome is mandatory. The high detailed metric survey, carried out with integrated laser scanning and digital close range photogrammetry, reinforced the structural hypothesis of damages and revealed the deformation effects. In addition, the correlation between the survey-model of the intrados and of the extrados allowed a non-destructive and extensive determination of the dome thickness. The photogram-metrical survey of frescos, with the re-projection of images on vault surface model (texture mapping), is purposed to exactly localize formers restoration and their signs on frescos continuity. The present paper illustrates the generation of the 3D high-resolution model and its relations with the results of the structural survey; both of them support the Finite Element numerical simulation of the dome.

• Periodical: Advanced Materials Research (Volume 778)
• Pages: 350-357
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.778.350
• Online since: September 2013
• Authors: Clara Bertolini-Cestari, Filiberto Chiabrando, Stefano Invernizzi, Tanja Marzi, Antonia Spanò
• Keywords: Cultural Heritage, Digital Photogrammetry, Laser Survey, Orthophoto, Structural Assessment, Wood Dome

References

[1] C. Bertolini Cestari, S. Invernizzi, A. Spanò, L. Mallamaci, Laser modeling and structural assessment of a XVIIth century wooden dome. In: 8th International Conference on Structural Analysis of Historical Constructions, (2012) 2280-2287.

[2] C. Roggero Bardelli, A. Scotti, Il Castello del Valentino - The Valentino Castle, L'Arciere, Torino, (1994).

[3] C. Bertolini Cestari, Un problema di recupero: le strutture di copertura del castello del Valentino. In G. Tampone (ed. ), Il restauro del legno, Proc. of the 2nd National Congress, Nardini, Firenze, (1989).

[4] P. De l'Orme, Nouvelles inventions pour bien bastir à petits frais, Frédéric Morel, Paris, 1561.

[5] F. De Cesaris, Gli elementi costruttivi tradizionali. In Restauro architettonico, G. Carbonara (ed. ), vol. II, Utet, Torino (1996).

[6] Vosselman, G., Maas, H. -G., Airborne and Terrestrial Laser Scanning; London (UK) Whittles Publishing, (2010).

[7] http: /www. leica-geosystems. com.

[8] http: /europe. faro. com/home.

[9] A. Spanò, C. Guardini A sustainable approach in 3d documentation for historical buildings restoration. Valentino Castle buildingyard. In Proc. of 5th International Congress on Science and technology for the Safeguard of Cultural Heritage in the Mediterranean Basin, 22nd– 25th November 2011, Istanbul (2011).

[10] C. Trevisan, Per la storia della Stereotomia. Geometrie, metodi e costruzioni, Aracne, Roma, (2011).

[11] J. Maine DIANA Finite Element Analysis User's Manual Release 9. 4. 4 TNO DIANA bv, Delft, The Netherlands (2012).

[12] C. Bertolini Cestari, S. Invernizzi, A. Spanò, M. Nicola, A. Torretta, T. Marzi, S. Cravanzola, F. Cesano, D. Scarano (2012).
