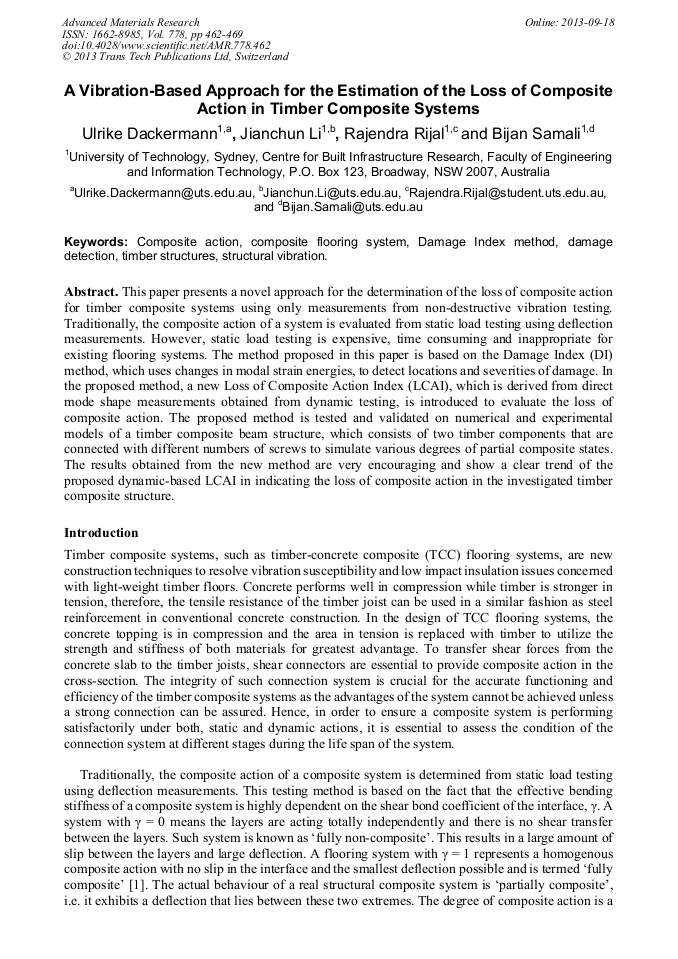

A Vibration-Based Approach for the Estimation of the Loss of Composite Action in Timber Composite Systems

Abstract:

This paper presents a novel approach for the determination of the loss of composite action for timber composite systems using only measurements from non-destructive vibration testing. Traditionally, the composite action of a system is evaluated from static load testing using deflection measurements. However, static load testing is expensive, time consuming and inappropriate for existing flooring systems. The method proposed in this paper is based on the Damage Index (DI) method, which uses changes in modal strain energies, to detect locations and severities of damage. In the proposed method, a new Loss of Composite Action Index (LCAI), which is derived from direct mode shape measurements obtained from dynamic testing, is introduced to evaluate the loss of composite action. The proposed method is tested and validated on numerical and experimental models of a timber composite beam structure, which consists of two timber components that are connected with different numbers of screws to simulate various degrees of partial composite states. The results obtained from the new method are very encouraging and show a clear trend of the proposed dynamic-based LCAI in indicating the loss of composite action in the investigated timber composite structure.

• Periodical: Advanced Materials Research (Volume 778)
• Pages: 462-469
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.778.462
• Online since: September 2013
• Authors: Ulrike Dackermann, Jian Chun Li, Rajendra Rijal, Bijan Samali
• Keywords: Composite Action, Composite Flooring System, Damage Detection, Damage Index Method, Structural Vibration, Timber Structure

References

[1] U. Kuhlmann, J. Schänzlin, A timber-concrete composite slab system for use in tall buildings, Structural Engineering International - Tall Timber Buildings, 18(2) (2007) 174-178.

DOI: 10.2749/101686608784218707

[2] J. Pault, Composite action in glulam timber bridge systems, Master of Science Thesis, Colorado State University, Fort Collins, USA, (1977).

[3] R. Gutkowski, N. Miller, M. Fragiacomo, J. Balogh, Composite wood-concrete beams using utility poles: Time-dependent behaviour, Journal of Structural Engineering, 137(6) (2011) 625-634.

DOI: 10.1061/(asce)st.1943-541x.0000293

[4] S.W. Doebling, C.R. Farrar, M.B. Prime, D.W. Shevitz, Damage identification and health monitoring of structural and mechanical systems from changes in their vibration characteristics: a literature review, Los Alamos National Laboratory Report LA-13070-MS, Los Alamos, USA, (1996).

DOI: 10.2172/249299

[5] H. Sohn, S.R. Farrar, F.N. Hemez, D. Shunk, D.W. Stinemates, B.R. Nadler, J.J. Czarnecki, A review of structural health monitoring literature 1996-2001, Los Alamos National Laboratory Report LA-13976-MS, Los Alamos, USA, (2004).

DOI: 10.1049/ic:19990185

[6] E.P. Carden, P. Fanning, Vibration based condition monitoring: a review, Structural Health Monitoring, 3(4) (2004) 355-377.

DOI: 10.1177/1475921704047500

[7] N. Stubbs, J.T. Kim, K. Topole, An efficient and robust algorithm for damage localization in offshore platforms, Proceedings of the 10th Structures Congress, Antonio, USA, (1992).

[8] F.C. Choi, J. Li, B. Samali, K. Crews, Application of the modified damage index method to timber beams, Engineering Structures, 30(4) (2008) 1124-1145.

DOI: 10.1016/j.engstruct.2007.07.014

[9] J.T. Kim, N. Stubbs, Improved damage identification method based on modal information. Journal of Sound and Vibration, 252(2) (2002) 223-238.

DOI: 10.1006/jsvi.2001.3749

[10] N. Stubbs, J.T. Kim, C.R. Farrar, Field verification of a nondestructive damage localization and severity estimation algorithm, Proceedings of the 13th International Modal Analysis Conference, Nashville, USA, (1995).

[11] N. Stubbs, S. Park, Optimal sensor placement for mode shapes via Shannon's sampling theorem. Microcomputers in Civil Engineering, 11(6) (1996) 411-419.

DOI: 10.1111/j.1467-8667.1996.tb00353.x

[12] U. Dackermann, J. Li, B. Samali, Vibration-based damage identification in timber structures utilising the damage index method and neural network ensembles, Australian Journal of Structural Engineering, 9(3) (2009) 181-194.

DOI: 10.1080/13287982.2009.11465021

[13] Z. Zabihi, B. Samali, R. Shrestha, C. Gerber, K. Crews, Serviceability and ultimate performance of long span timber floor modules, 12th WCTE Conference, Auckland, New Zealand, (2012).

[14] CADA-X, Modal analysis manual, LMS International, Leuven, Belgium, (1996).

[15] R. Rijal, Dynamic performance of timber and timber-concrete composite flooring systems, PhD Thesis, Faculty of Engineering and Information Technology, University of Technology, Sydney, Australia, (2013).
