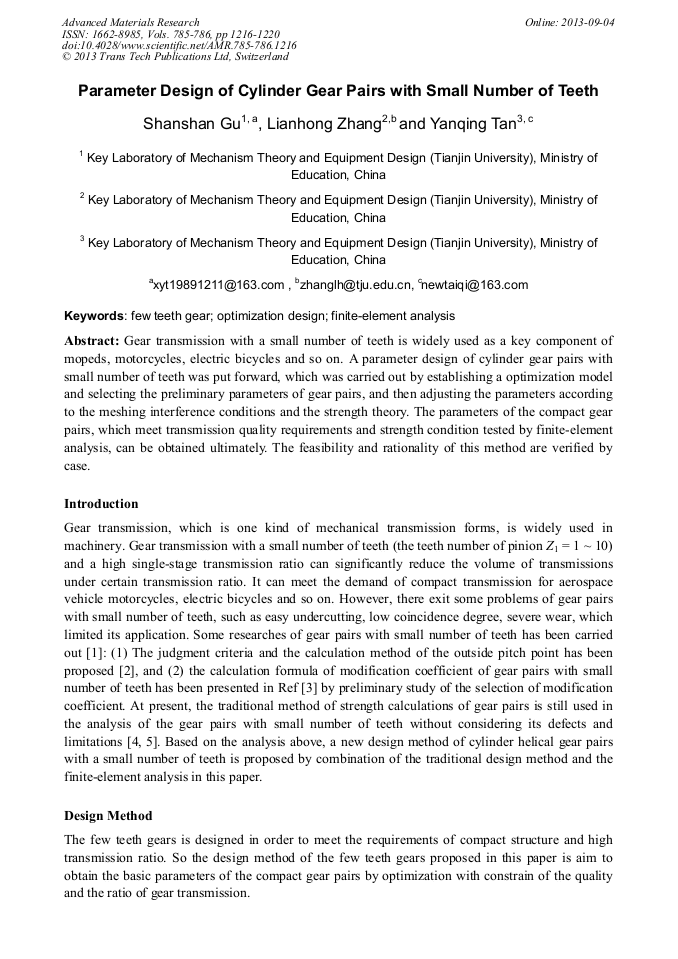

Parameter Design of Cylinder Gear Pairs with Small Number of Teeth

Abstract:

Gear transmission with a small number of teeth is widely used as a key component of mopeds, motorcycles, electric bicycles and so on. A parameter design of cylinder gear pairs with small number of teeth was put forward, which was carried out by establishing a optimization model and selecting the preliminary parameters of gear pairs, and then adjusting the parameters according to the meshing interference conditions and the strength theory. The parameters of the compact gear pairs, which meet transmission quality requirements and strength condition tested by finite-element analysis, can be obtained ultimately. The feasibility and rationality of this method are verified by case.

• Periodical: Advanced Materials Research (Volumes 785-786)
• Pages: 1216-1220
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.785-786.1216
• Online since: September 2013
• Authors: Shan Shan Gu*, Lian Hong Zhang, Yan Qing Tan
• Keywords: Few Teeth Gear, Finite Element Analysis (FEA), Optimization Design
