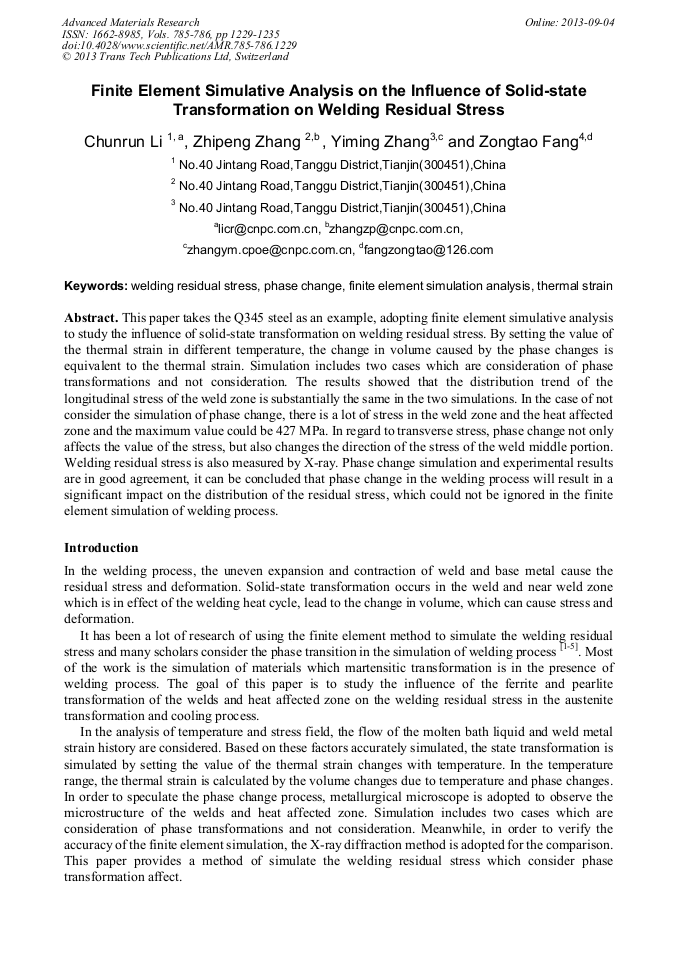

Finite Element Simulative Analysis on the Influence of Solid-State Transformation on Welding Residual Stress

Abstract:

This paper takes the Q345 steel as an example, adopting finite element simulative analysis to study the influence of solid-state transformation on welding residual stress. By setting the value of the thermal strain in different temperature, the change in volume caused by the phase changes is equivalent to the thermal strain. Simulation includes two cases which are consideration of phase transformations and not consideration. The results showed that the distribution trend of the longitudinal stress of the weld zone is substantially the same in the two simulations. In the case of not consider the simulation of phase change, there is a lot of stress in the weld zone and the heat affected zone and the maximum value could be 427 MPa. In regard to transverse stress, phase change not only affects the value of the stress, but also changes the direction of the stress of the weld middle portion. Welding residual stress is also measured by X-ray. Phase change simulation and experimental results are in good agreement, it can be concluded that phase change in the welding process will result in a significant impact on the distribution of the residual stress, which could not be ignored in the finite element simulation of welding process.

• Periodical: Advanced Materials Research (Volumes 785-786)
• Pages: 1229-1235
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.785-786.1229
• Online since: September 2013
• Authors: Chun Run Li, Zhi Peng Zhang, Yi Ming Zhang, Zong Tao Fang
• Keywords: Finite Element Simulation Analysis, Phase Change, Thermal Strain, Welding Residual Stress

References

[1] Dean Deng，FEM prediction of welding residual stress and distortion in carbon steel considering phase transformation effects[J]．Materials and Design，2009，30：359~366.

DOI: 10.1016/j.matdes.2008.04.052

[2] Juwan Kim, SSeyoung Im，Numerical implementation of a thermo-elastic–plastic constitutive equation in consideration of transformation plasticity in welding[J]．International Journal of Plasticity，2005，21：1383~1408.

DOI: 10.1016/j.ijplas.2004.06.007

[3] Dean Deng, Murakawa Hidekazu，Prediction of welding residual stress in multi-pass butt-welded modified 9Cr–1Mo steel pipe considering phase transformation effects[J]．Computational Materials Science，2006，37：209~219.

DOI: 10.1016/j.commatsci.2005.06.010

[4] B. Chen, X.H. Peng, J.H. Fan，A viscous-elastoplastic constitutive equation incorporating phase transformation with the application to the residual stress analysis for welding process[J]．Journal of Materials Processing Technology，2008，205：316~321.

DOI: 10.1016/j.jmatprotec.2007.11.114

[5] Dean Deng, Hidekazu Murakawa，Finite element analysis of temperature field, microstructure and residual stress in multi-pass butt-welded 2. 25Cr–1Mo steel pipes[J]．Computational Materials Science，2008，43：681~695.

DOI: 10.1016/j.commatsci.2008.01.025

[6] Sougata Roy，Experimental and analytical Evaluation of Enhancement in Fatigue Resistance of Welded Details Subjected to Post-Weld Ultrasonic Impact Treatment[D]．PH. D Thesis, Lehigh University，(2006).
