Design and Experiment of Vortex Rings Umbrella Based on Finite Element Method

Abstract:

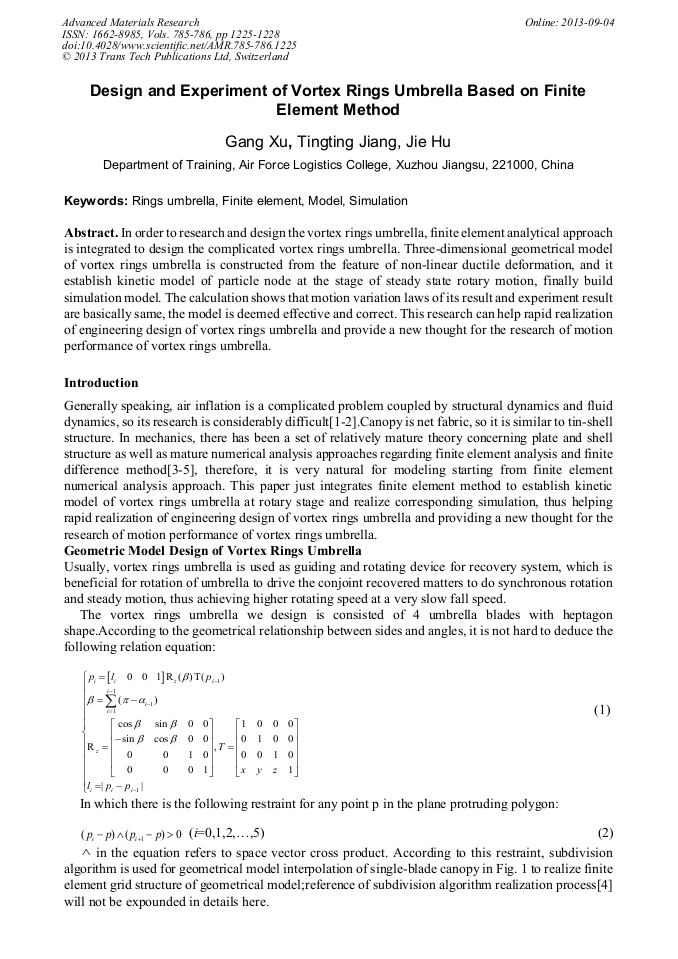

In order to research and design the vortex rings umbrella, finite element analytical approach is integrated to design the complicated vortex rings umbrella. Three-dimensional geometrical model of vortex rings umbrella is constructed from the feature of non-linear ductile deformation, and it establish kinetic model of particle node at the stage of steady state rotary motion, finally build simulation model. The calculation shows that motion variation laws of its result and experiment result are basically same, the model is deemed effective and correct. This research can help rapid realization of engineering design of vortex rings umbrella and provide a new thought for the research of motion performance of vortex rings umbrella.
