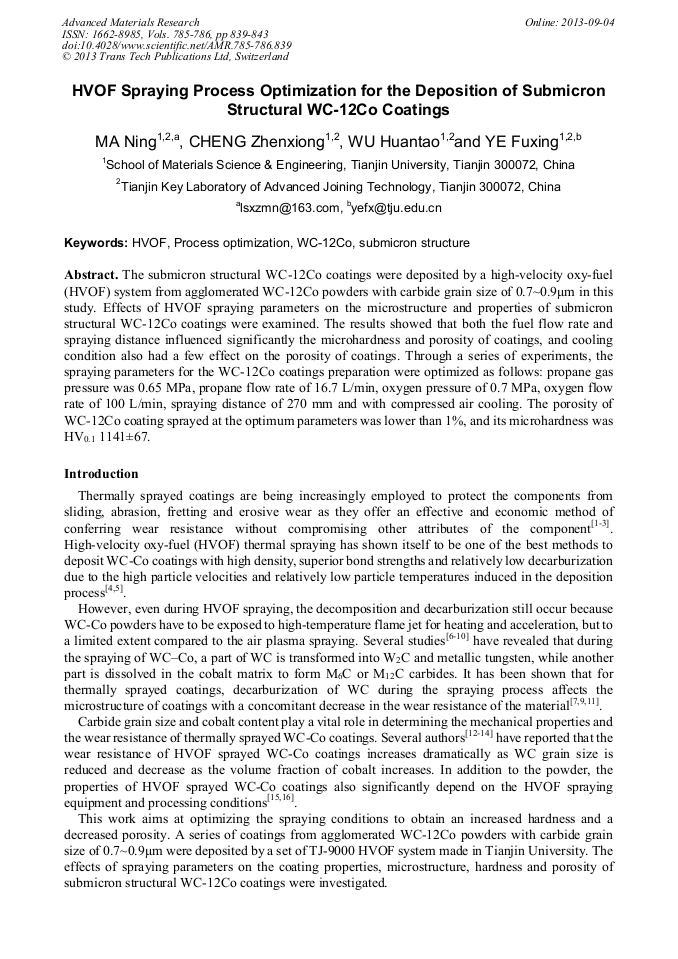

HVOF Spraying Process Optimization for the Deposition of Submicron Structural WC-12Co Coatings

Abstract:

The submicron structural WC-12Co coatings were deposited by a high-velocity oxy-fuel (HVOF) system from agglomerated WC-12Co powders with carbide grain size of 0.7~0.9μm in this study. Effects of HVOF spraying parameters on the microstructure and properties of submicron structural WC-12Co coatings were examined. The results showed that both the fuel flow rate and spraying distance influenced significantly the microhardness and porosity of coatings, and cooling condition also had a few effect on the porosity of coatings. Through a series of experiments, the spraying parameters for the WC-12Co coatings preparation were optimized as follows: propane gas pressure was 0.65 MPa, propane flow rate of 16.7 L/min, oxygen pressure of 0.7 MPa, oxygen flow rate of 100 L/min, spraying distance of 270 mm and with compressed air cooling. The porosity of WC-12Co coating sprayed at the optimum parameters was lower than 1%, and its microhardness was HV_0.1 1141±67.

• Periodical: Advanced Materials Research (Volumes 785-786)
• Pages: 839-843
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.785-786.839
• Online since: September 2013
• Authors: Ning Ma, Zhen Xiong Cheng, Huan Tao Wu, Fu Xing Ye
• Keywords: HVOF, Process Optimization, Submicron Structure, WC-12Co

References

[1] Lech Pawlowski: The Science and Engineering of thermal spray coatings, 2nd ed. (Wiley Publications, England, 2008).

[2] G. Barbezat: Surf. Coat. Technol. Vol. 201 (2006) , p. (2028).

[3] P. Ernst, G. Barbezat: Surf. Coat. Technol. Vol. 202 (2008) , p.4428.

[4] Robert J.K. Wood: Int J Refract Met H. Vol. 28 (2010), p.82.

[5] B. Wielage, A. Wank, H. Pokhmurska, T. Grund and C. Rupprecht: Surf. Coat. Technol. Vol. 201 (2006), p. (2032).

[6] C.J. Li, A. Ohmori, Y. Harada: J. Mater. Sci. Vol. 31 (1996), p.785.

[7] H.L. de Villiers Lovelock: J Therm Spray Techn. Vol. 7(1998), p.357.

[8] C. Verdon, A. Karimi and J. L. Martin: Mat Sci & Eng A-Struct. Vol. 246 (1998), p.11.

[9] D.A. Stewart, P.H. Shipway, D.G. McCartney: Wear. Vol. 225–229(1999), p.789.

[10] D.A. Stewart, P.H. Shipway and D.G. McCartney: Acta Mater. Vol. 48 (2000), p.1593.

[11] C.J. Li and G.J. Yang: Int J Refract Met H. Vol. 39(2013), p.2.

[12] S. Usmani, S. Sampath, D. L. Houck and David L: Tribol T, Vol 40 (1997), p.470.

[13] Q. Yang, T. Senda and A. Ohmori: Wear. Vol. 254 (2003), p.23.

[14] C.J. Li, Y.Y. Wang G.J. Yang, A. Ohmori and K.A. Khor: Mater Sci Tech-lond. Vol. 20 (2004), p.1087.

[15] Y.F. Qiao, T. E. Fischer and A. Dent: Surf. Coat. Technol. Vol. 172 (2003) 24.

[16] Q. Wang, Z.H. Chen, L.X. Li and G.B. Yang. Surf. Coat. Technol. Vol. 206 (2012), p.2233.
