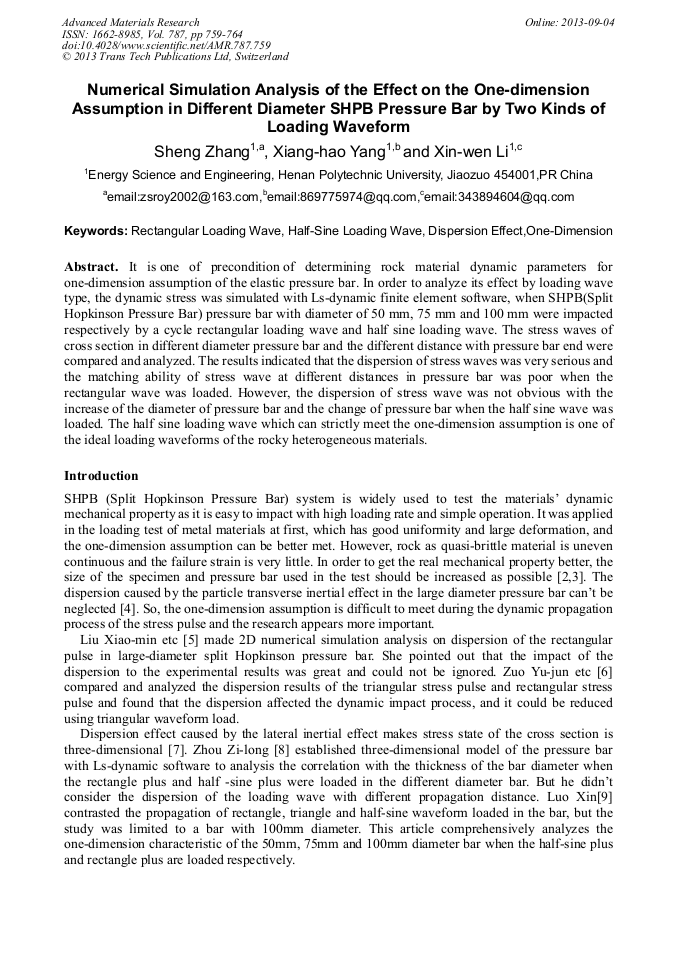

Numerical Simulation Analysis of the Effect on the One-Dimension Assumption in Different Diameter SHPB Pressure Bar by Two Kinds of Loading Waveform

Abstract:

t is one of precondition of determining rock material dynamic parameters for one-dimension assumption of the elastic pressure bar. In order to analyze its effect by loading wave type, the dynamic stress was simulated with Ls-dynamic finite element software, when SHPB(Split Hopkinson Pressure Bar) pressure bar with diameter of 50 mm, 75 mm and 100 mm were impacted respectively by a cycle rectangular loading wave and half sine loading wave. The stress waves of cross section in different diameter pressure bar and the different distance with pressure bar end were compared and analyzed. The results indicated that the dispersion of stress waves was very serious and the matching ability of stress wave at different distances in pressure bar was poor when the rectangular wave was loaded. However, the dispersion of stress wave was not obvious with the increase of the diameter of pressure bar and the change of pressure bar when the half sine wave was loaded. The half sine loading wave which can strictly meet the one-dimension assumption is one of the ideal loading waveforms of the rocky heterogeneous materials.

• Periodical: Advanced Materials Research (Volume 787)
• Pages: 759-764
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.787.759
• Online since: September 2013
• Authors: Sheng Zhang, Xiang Hao Yang, Xin Wen Li
• Keywords: Dispersion Effect, Half-Sine Loading Wave, One-Dimension, Rectangular Loading Wave

References

[1] S.S. Hu: Ordnance Material Science and Engineering, Vol. 11 (1991), p.40.

[2] D.X. Chen, S.S. Hu etc: Journal of Experimental Mechanics, Vol. 20 (2005) No. 3, p.398.

[3] M.D. Feng, Y.J. Peng etc: Progress in Geophysics, Vol. 21 (2006) No. 1, p.273.

[4] X.T. Wu, B.Y. Yang etc: Chinese Journal of Applied Mechanics, Vol. 23 (2006) No. 3, p.431.

[5] X.M. Liu , S.S. Hu: Journal of Experimental Mechanics, Vol. 15 (2000) No. 4, p.372.

[6] Y.J. Zou, C.A. Tang and W.C. Zhu etc: Journal of Northeastern University (Natural Science), Vol. 28 (2007), p.859.

[7] S.F. Sun: Numerical simulation on SHPB experiment for concrete. (MS., Hefei University of Technology, China 2007), p.14.

[8] Z.L. Zhou, X.B. Li etc: Mining and Metallurgical Engineering, Vol. 25 (2005) No. 3, p.18.

[9] X. Luo, J.Y. Xu and W.M. Li etc: Journal of Experimental Mechanics, Vol. 25 (2010) No. 4, p.451.

[10] Rayleigh. Lord: Theory of sound. London. Macmillan Co. 1894.

[11] J. L. Tao: Journal of Southwest University of Science and Technology, Vol. 24 (2009) No. 3, p.27.

[12] K. Man, H.W. Zhou: Metal Mine, Vol. 413 (2010) No. 11, p.27.

[13] K. Gao: Numerical simulation on SHPB experiment for rock. (MS., Central South University. China 2009), p.26.

[14] K. Man: Testing method on dynamic fracture toughness of rock. (MS., China University of Mining Technology. China 2010), p.55.
