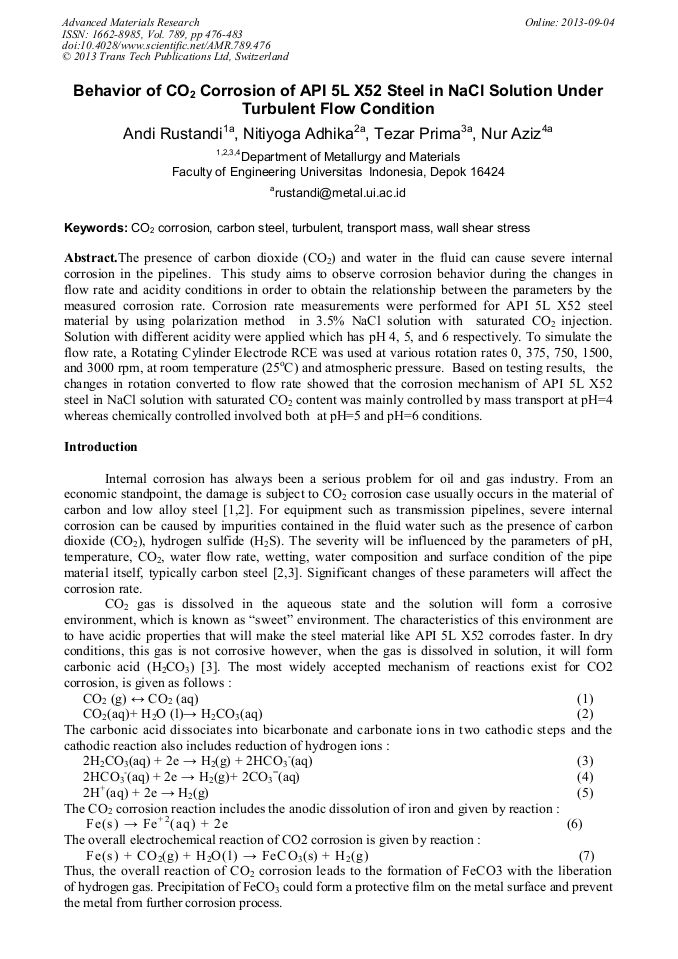

Behavior of CO₂ Corrosion of API 5L X52 Steel in NaCl Solution under Turbulent Flow Condition

Abstract:

The presence of carbon dioxide (CO₂) and water in the fluid can cause severe internal corrosion in the pipelines. This study aims to observe corrosion behavior during the changes in flow rate and acidity conditions in order to obtain the relationship between the parameters by the measured corrosion rate. Corrosion rate measurements were performed for API 5L X52 steel material by using polarization method in 3.5% NaCl solution with saturated CO₂ injection. Solution with different acidity were applied which has pH 4, 5, and 6 respectively. To simulate the flow rate, a Rotating Cylinder Electrode RCE was used at various rotation rates 0, 375, 750, 1500, and 3000 rpm, at room temperature (25°C) and atmospheric pressure. Based on testing results, the changes in rotation converted to flow rate showed that the corrosion mechanism of API 5L X52 steel in NaCl solution with saturated CO₂ content was mainly controlled by mass transport at pH=4 whereas chemically controlled involved both at pH=5 and pH=6 conditions.

• Periodical: Advanced Materials Research (Volume 789)
• Pages: 476-483
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.789.476
• Online since: September 2013
• Authors: Andi Rustandi, Nitiyoga Adhika, Tezar Prima, Nur Aziz
• Keywords: Carbon Steel, CO₂ Corrosion, Transport Mass, Turbulent, Wall Shear Stress (WSS)

References

[1] F. Vitse, S. Nešić, Y. Gunaltun, D. Larrey de Torreben, P. Duchet-Suchaux, Mechanistic model for the prediction of top-of-the-line corrosion risk, Corrosion 59 (2003) 1075.

DOI: 10.5006/1.3277527

[2] Rolf Nyborg, Controlling Internal Corrosion in Oil and Gas Pipelines, Business Briefing : Exploration & Production : The Oil & Gas Review 2005 – Issue 2.

[3] Z.D. Cui, S.L. Wu, S.L. Zhu, X.J. Yang, Study on corrosion properties of pipelines in simulated produced water saturated with supercritical CO2 Applied Surface Science 252 (2006) 2368–2374.

DOI: 10.1016/j.apsusc.2005.04.008

[4] Tebbal, S.; Hackerman, N., "Effect of the Liquid Film Thickness on the Carbon Dioxide Corrosion of Steel". Corrosion 1989, 45 (7), 558-562.

DOI: 10.5006/1.3577872

[5] Nesic, S.; Pots, B. F. M.; Postlethwaite, J.,Thevenot, N., "Superposition of Diffusion and Chemical Reaction Controlled Limiting Currents - Application to CO2 Corrosion". Journal of Corrosion science and Engineering 1995, 1, 1-14.

[6] Y.M. Gunaltun, dan D. Larrey, Correlation of cases of top of line corrosion with calculated water condensation rates, CORROSION/2000, paper no. 71 (Houston, TX: NACE International 2000).

[7] Jones, Denny A., Principles and Prevention of Corrosion (2nd Edition), Prentice Hall, 1995.

[8] Pine Instrumentation, Study of Mass-Transport Limited Corrosion Using Pine Rotating Cylinder Electrodes. (2006).

[9] J.W. Soedarsono, A. Rustandi, S. Husein, Study of Fluid Velocity Effect on UNS G10180 Steel in 3.5% NaCl Using Rotating Cylinder Electrode, Department of Metallurgy and Materials, Faculty of Engineering, Universitas Indonesia, 2010, p.54.

[10] A.Rustandi, M.Adyutatama, E.Fadly, and N.Subekti, Corrosion Rate Of Carbon Steel For Flowline And Pipeline As Transmission Pipe In Natural Gas Production With CO2 Content, Makara, Teknologi, Vol. 16, No. 1, April 2012: 57-62.

DOI: 10.7454/mst.v16i1.1056

[11] F.Nabhani, A. M. Jasim and S.W. Graham: Electrochemical Behaviour of Low Carbon Steel in Aqueous Solutions, Proceedings of the World Congress on Engineering. Vol. II (2007).
