Hot Corrosion of Aluminized 1020 Steel with NaCl Deposit

Mohammad Badaruddin; Sugiyanto Sugiyanto

doi:10.4028/www.scientific.net/AMR.789.463

Paper Titles

Springback Prediction Compensation and Optimization for Front Side Member in Sheet Metal Forming Using FEM Simulation
p.436

Low Speed Electric Machine Used for Electric Generating from Savonius Windmill
p.443

Physics and Chemistry Test on Aluminum-Based Composite Materials as an Alternative Material for the Manufacture of Brake Drum
p.449

Oxidation Characteristics of Various Nickel Composite Coated on Ferritic Stainless Steel
p.455

Hot Corrosion of Aluminized 1020 Steel with NaCl Deposit
p.463

Improvement of Stress Corrosion Resistance in Aluminum Alloy 7075 through Retrogression and Re-Aging Modification
p.467

Behavior of CO₂ Corrosion of API 5L X52 Steel in NaCl Solution under Turbulent Flow Condition
p.476

Effectiveness of Myrmecodia Pendans Extract as Eco-Friendly Corrosion Inhibitor for Material API 5L Grade B in 3,5% NaCl Solution
p.484

Influence of Intermetallic Inclusion to Brittle Fracture of Electric Motor Shaft AISI 1045 under Torsion Loading
p.492

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 789Hot Corrosion of Aluminized 1020 Steel with NaCl...

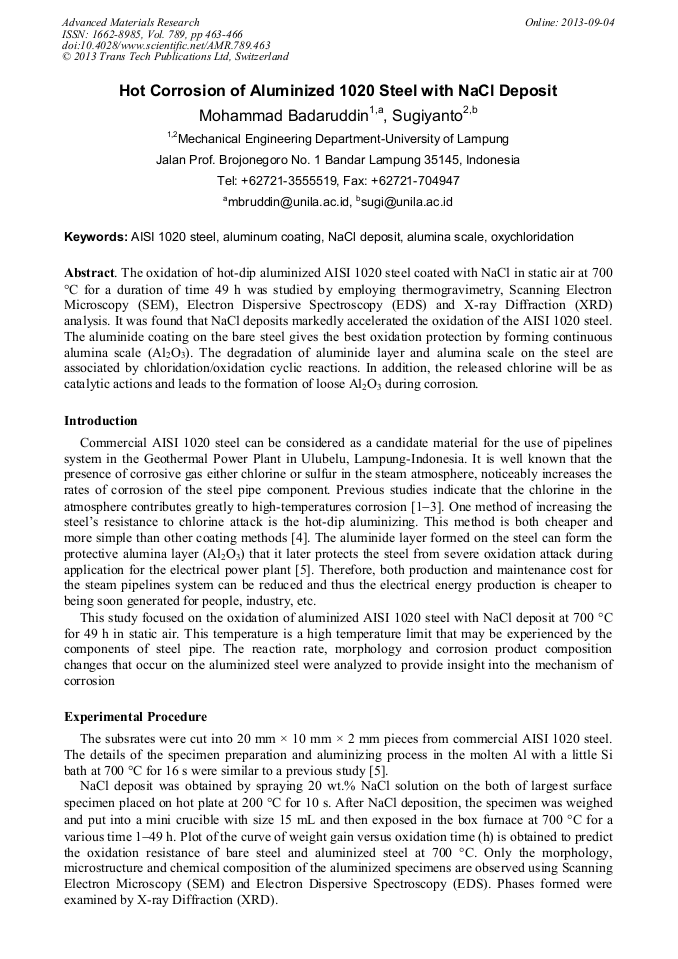

Hot Corrosion of Aluminized 1020 Steel with NaCl Deposit

Abstract:

The oxidation of hot-dip aluminized AISI 1020 steel coated with NaCl in static air at 700°C for a duration of time 49 h was studied by employing thermogravimetry, Scanning Electron Microscopy (SEM), Electron Dispersive Spectroscopy (EDS) and X-ray Diffraction (XRD) analysis. It was found that NaCl deposits markedly accelerated the oxidation of the AISI 1020 steel. The aluminide coating on the bare steel gives the best oxidation protection by forming continuous alumina scale (Al₂O₃). The degradation of aluminide layer and alumina scale on the steel are associated by chloridation/oxidation cyclic reactions. In addition, the released chlorine will be as catalytic actions and leads to the formation of loose Al₂O₃ during corrosion.

You might also be interested in these eBooks

Advances in Materials, Processing and Manufacturing

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 789)

Pages:

463-466

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.789.463

Citation:

Cite this paper

Online since:

September 2013

Authors:

Mohammad Badaruddin, Sugiyanto Sugiyanto

Keywords:

AISI 1020 Steel, Alumina Scale, Aluminum Coating, NaCl Deposit, Oxychloridation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C.J. Wang, J.W. Lee and T.H. Twu: Surf. Coat. Technol. Vol. 163-164 (2003), p.37

Google Scholar

[2] C.J. Wang and C.C. Li Surf. Coat. Technol. Vol. 177-178 (2004), p.37

Google Scholar

[3] G. Han and W.D. Cho: Oxid. Metals Vol. 58(3/4) (2002), p.439

Google Scholar

[4] C.J. Wang and M. Badaruddin: Surf. Coat. Technol. Vol. 205 (2010), p.1200

Google Scholar

[5] M. Badaruddin, Suharno and A.W. Hanif: The Proceeding of National Seminar of Mechanical Engineering XI, October 16-17, Yogyakarta Vol. 1(1) (2012), p.1439

Google Scholar

[6] M. Badaruddin and C.J. Wang: Advanced Materials Research Vol. 79-82 (2009), p.1775

Google Scholar

[7] J.G. Speight: Lange's Handbook of Chemistry, 16thEd. Mc Graw-Hill, (2002), p.18.

Google Scholar

[8] H.H. Liu, W.J. Cheng and C.J. Wang: Appl. Surf. Sci. Vol. 257 (2011), p.10645

Google Scholar
