Effects of Aluminizing on the High Temperature Oxidation Behavior of High Silicon Cast Iron

Meng Bin Lin; Chaur Jeng Wang

doi:10.4028/www.scientific.net/AMR.79-82.2151

Paper Titles

Epoxy Curing System with Liquid 1,3-Bis(3-aminopropyl) tetramethyl Disiloxane as Curing Agent for Advanced Electronic Package
p.2135

Optimization of Annealing Treatment Parameters in a Twin Roll Cast and Warm Rolled Mg-4.5Al-1.0Zn Alloy
p.2139

High Temperature Thermoelectric Properties of Oxide Ca₂Co₂O₅
p.2143

Investigation on the Sound Absorption Properties of MPA/MR
p.2147

Effects of Aluminizing on the High Temperature Oxidation Behavior of High Silicon Cast Iron
p.2151

A Facile Method of Surface Modification Based on the Adhesive Behavior of Poly(dopamine) on Copper
p.2155

Fabrication and Electric Properties of SrTiO_3-δ/Nb-SrTiO₃ Heterjunction
p.2159

Effect of Fluctuation in Fiber Orientation on the Young’s Modulus of Green Composites
p.2163

Multiscale Bone Remodeling Prediction for Fully Porous-Coated (FPC) Dental Implant Supported Prosthesis
p.2167

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 79-82Effects of Aluminizing on the High Temperature...

Effects of Aluminizing on the High Temperature Oxidation Behavior of High Silicon Cast Iron

Abstract:

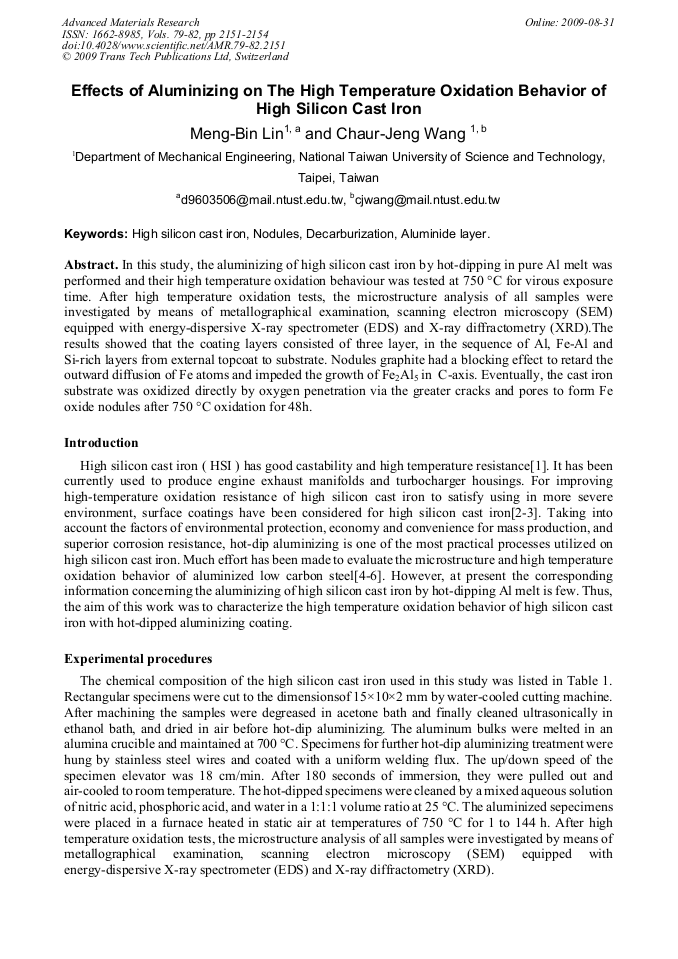

In this study, the aluminizing of high silicon cast iron by hot-dipping in pure Al melt was performed and their high temperature oxidation behaviour was tested at 750 °C for virous exposure time. After high temperature oxidation tests, the microstructure analysis of all samples were investigated by means of metallographical examination, scanning electron microscopy (SEM) equipped with energy-dispersive X-ray spectrometer (EDS) and X-ray diffractometry (XRD).The results showed that the coating layers consisted of three layer, in the sequence of Al, Fe-Al and Si-rich layers from external topcoat to substrate. Nodules graphite had a blocking effect to retard the outward diffusion of Fe atoms and impeded the growth of Fe2Al5 in C-axis. Eventually, the cast iron substrate was oxidized directly by oxygen penetration via the greater cracks and pores to form Fe oxide nodules after 750 °C oxidation for 48h.

You might also be interested in these eBooks

Multi-Functional Materials and Structures II

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 79-82)

Pages:

2151-2154

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.79-82.2151

Citation:

Cite this paper

Online since:

August 2009

Authors:

Meng Bin Lin, Chaur Jeng Wang

Keywords:

Aluminide Layer, Decarburization, High Silicon Cast Iron, Nodule

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C. Labrecque and M. Gagne: Canadian Metallurgical Quarterly Vol. 37 (1998), p.343.

Google Scholar

[2] S. Taniguchi, H. Juso, and T. Shibata: Oxidation of Metals Vol. 49 (1998), p.325.

Google Scholar

[3] W. Retallick, M. Brady, and D. Humphrey: Intermetallics Vol. 6 (1998), p.335.

Google Scholar

[4] C.J. Wang and S.M. Chen: Surface & Coating Technology Vol. 200 (2006), p.6601.

Google Scholar

[5] C.J. Wang and C.C. Li: Surface & Coating Technology Vol. 37 (2003), p.177.

Google Scholar

[6] C.J. Wang, J.W. Lee, and T.H. Twu: Surface & Coating Technology Vol. 37 (2003), p.163.

Google Scholar

[7] D. Naoi and M. Kajihara: Materials Science and Engineering A Vol. 459 (2007), p.375.

Google Scholar

[8] H. Mehrer, M. Eggersmann, A. Gude, M. Salamon and B. Sepiol: Materials Science and Engineering Vol. A239-240 (1997), p.889.

DOI: 10.1016/s0921-5093(97)00680-1

Google Scholar

[9] F. Tholence and A.M. Norell: Oxidation of Metals Vol. 69 (2008) p.13.

Google Scholar

[10] H. D. Merchant: Proceedings of a seminar on Recent Research on Cast Iron (Gordon & Breach, USA 1964).

Google Scholar

[11] K. Hauffe: Dechema Corrosion Handbook, Hot Oxidizing Gases (VCH Publishers, USA 1989).

Google Scholar
