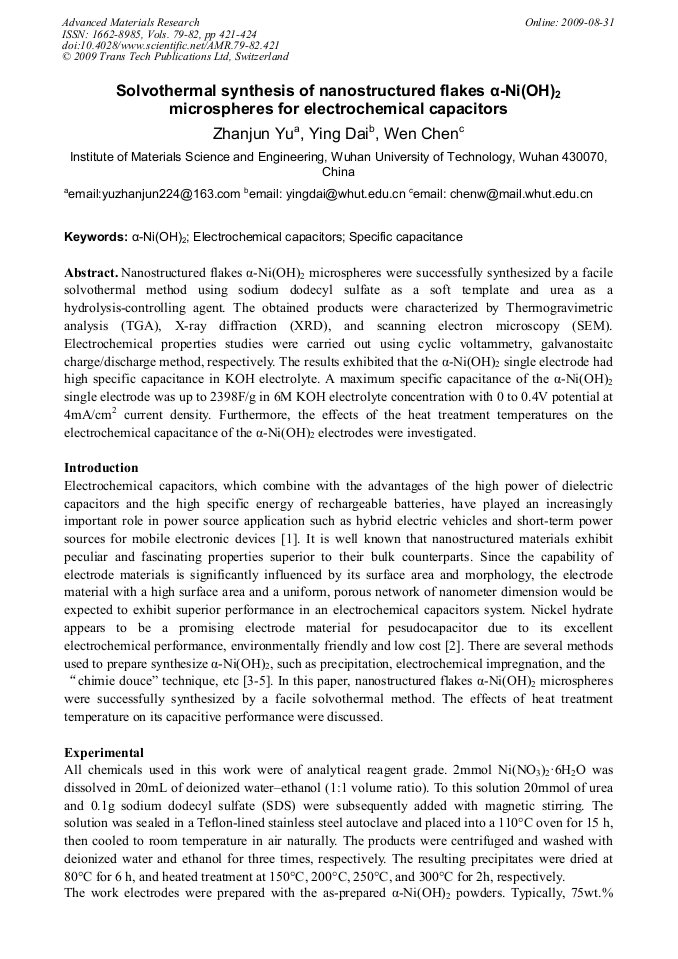

Solvothermal Synthesis of Nanostructured Flakes α-Ni(OH)₂ Microspheres for Electrochemical Capacitors

Abstract:

Nanostructured flakes α-Ni(OH)2 microspheres were successfully synthesized by a facile solvothermal method using sodium dodecyl sulfate as a soft template and urea as a hydrolysis-controlling agent. The obtained products were characterized by Thermogravimetric analysis (TGA), X-ray diffraction (XRD), and scanning electron microscopy (SEM). Electrochemical properties studies were carried out using cyclic voltammetry, galvanostaitc charge/discharge method, respectively. The results exhibited that the α-Ni(OH)2 single electrode had high specific capacitance in KOH electrolyte. A maximum specific capacitance of the α-Ni(OH)2 single electrode was up to 2398F/g in 6M KOH electrolyte concentration with 0 to 0.4V potential at 4mA/cm2 current density. Furthermore, the effects of the heat treatment temperatures on the electrochemical capacitance of the α-Ni(OH)2 electrodes were investigated.

• Periodical: Advanced Materials Research (Volumes 79-82)
• Pages: 421-424
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.79-82.421
• Online since: August 2009
• Authors: Zhan Jun Yu, Ying Dai, Wen Chen
• Keywords: Electrochemical Capacitor, Specific Capacitance, α-Ni(OH)₂

References

[1] Y. Y. Liang, S. J. Bao and H. L. Li: J. Solid. State. Electrochem. Vol. 11(2007), p.571.

[2] B. E. Conway: Electrochemical Supercapacitors (Plenum Press, New York1999).

[3] M. Diyit, P. V. Kamath and J. Gopalakrishnan: J. Electrochem. Soc. Vol. 146(1999), p.79.

[4] B. Liu, X. Y. Wang, H. T. Yuan and Y. S. Zhang: J. Appl. Electrochem. Vol. 29(1999), p.853.

[5] R. S. Jayashree and P. V. Kamath: J. Appl. Electrochem. Vol. 29(1999), p.454.

[6] C. Z. Yuan, X. G. Zhang and B. Gao: Chin. J. Appl. Chem. Vol. 23(2006), p.456.

[7] C. L. Chen, D. R. Chen, X. L. Jiao and C. Q. Wang: Chem. Commun. Vol. 44 (2006), p.4632.

[8] H. Zhu, X. L. Wang, F. Yang, and X. R. Yang: Cryst. Growth. Des. Vol. 8(2008), p.950.

[9] S. H. Yu, H. Colfen and M. Antonietti: Adv. Mater. Vol. 15(2003), p.133.
