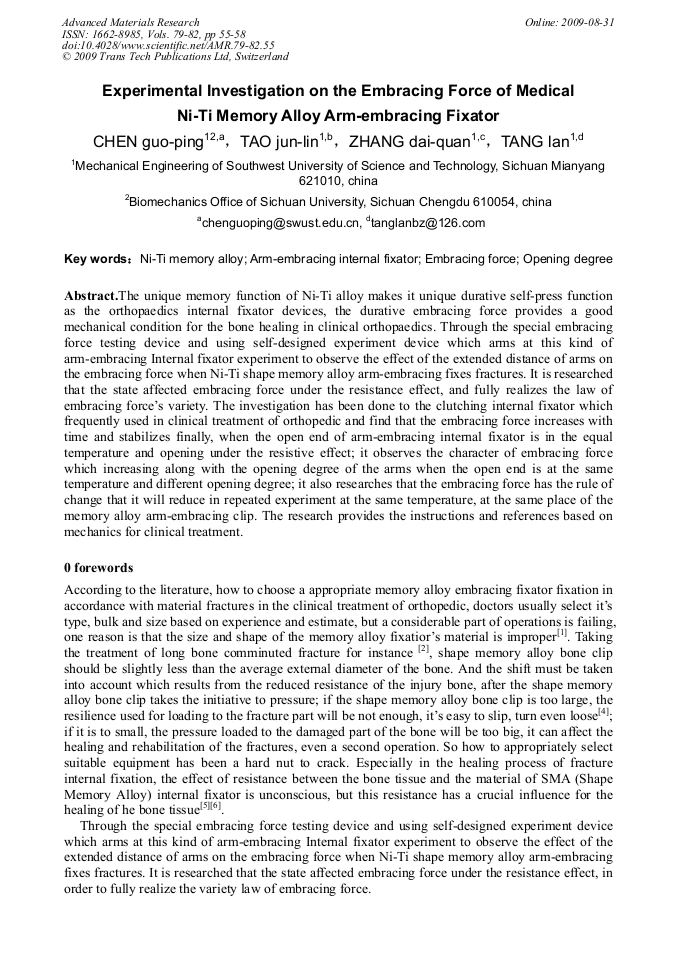

Experimental Investigation on the Embracing Force of Medical Ni-Ti Memory Alloy Arm-Embracing Fixator

Abstract:

The unique memory function of Ni-Ti alloy makes it unique durative self-press function as the orthopaedics internal fixator devices, the durative embracing force provides a good mechanical condition for the bone healing in clinical orthopaedics. Through the special embracing force testing device and using self-designed experiment device which arms at this kind of arm-embracing Internal fixator experiment to observe the effect of the extended distance of arms on the embracing force when Ni-Ti shape memory alloy arm-embracing fixes fractures. It is researched that the state affected embracing force under the resistance effect, and fully realizes the law of embracing force’s variety. The investigation has been done to the clutching internal fixator which frequently used in clinical treatment of orthopedic and find that the embracing force increases with time and stabilizes finally, when the open end of arm-embracing internal fixator is in the equal temperature and opening under the resistive effect; it observes the character of embracing force which increasing along with the opening degree of the arms when the open end is at the same temperature and different opening degree; it also researches that the embracing force has the rule of change that it will reduce in repeated experiment at the same temperature, at the same place of the memory alloy arm-embracing clip. The research provides the instructions and references based on mechanics for clinical treatment.

• Periodical: Advanced Materials Research (Volumes 79-82)
• Pages: 55-58
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.79-82.55
• Online since: August 2009
• Authors: Guo Ping Chen, Jun Lin Tao, Dai Quan Zhang, Lang Tang
• Keywords: Arm-Embracing Internal Fixator, Embracing Force, Ni-Ti Memory Alloy, Opening Degree

References

[1] LI Yong-bin, HE Zhong, WANG Fei-long, et al. Treatment of comminuted fractures of extremity long bone with TiNiSMA encircling bone plate. Chin J Orthop Trauma. 2004, Vol. 6. No. 12: 1429-1430.

[2] WANG Hong-wei, RUAN Mei-shu, SU Xun-tong. Treatment of comminuted femoral shaft fractures with combination of intramedullary interlocking nail and shape memory sawtooth-arm block hoop internal fixator. Chin J Orthop Trauma. 2004, Vol. 6. No. 8: 924-925.

[3] XIAO Liang-bao, LI FO-bao, YANG Zhong-han, et al. Ni-Ti shape memory embracing fixator in treating fractures of extremities. Chin J Orthop Trauma. 2003. Vol. 5. NO. 2: 109～111.

[4] ZHANG Tie-hong, DU Jiang-hong, SHEN Wei-dong, LIAO Rui-xing. Treatment of 32 cases of fracture of femur with Ni Ti shaped memory embracing plate. Chinese Journal of Clinical Healthcare, 2006, Vol. 9. NO. 1: 23~24.

[5] ZHENG Hai, ZHU Zhen-an, XUE Wen-dong. Experimental investigation on the effect of inner diameter and extended distance of arms of shape memory alloy sawtooth-arm fixator(SSEF) on the embracing force. Journal of Medical Biomechanics, 2006, Vol. 21. No. 2: 129~132.

[6] Dai Ke-rong, Ni Cheng, Wu Xiao-tao, et al. An experimental study and preliminary clinical report of shape-memory swatooth-arm embracing internal fixator. Chinese Journal of Surgery. 1994, Vol. 32. No. 10: 629~632.

[7] LIU Xuan, FAN Yu-bo, LI De-yu. the Experimental Study of Influence of Different Resistance to the Recovery Force of Ni-Ti Alloy Inner Fixing Device. Chinese Journal of Biomedical Engineering, 2008, Vo1. 27. No. 4: 557~560.
