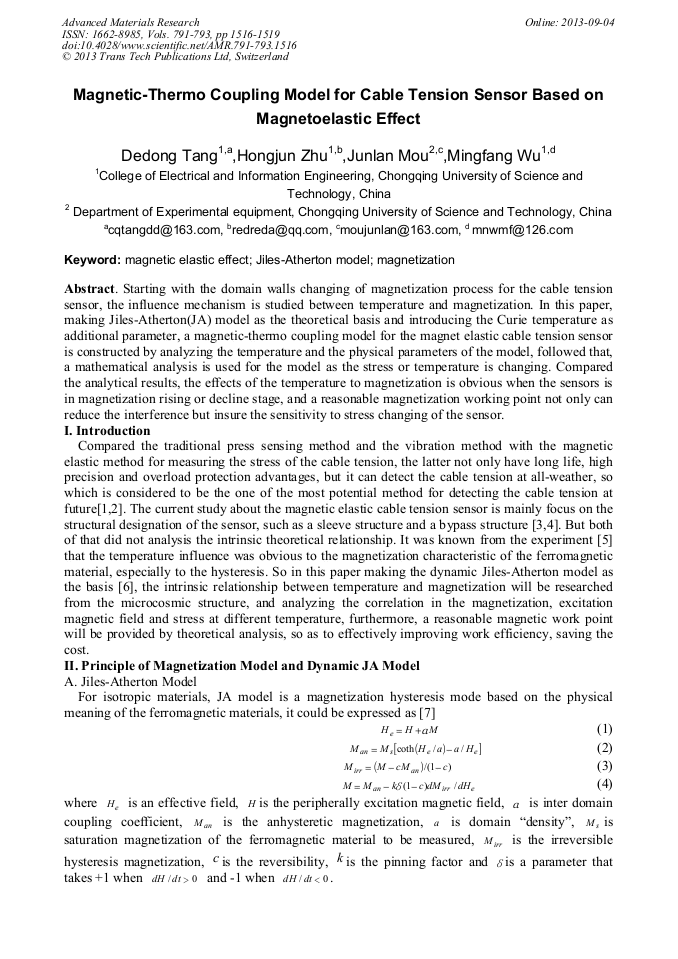

Magnetic-Thermo Coupling Model for Cable Tension Sensor Based on Magnetoelastic Effect

Abstract:

Starting with the domain walls changing of magnetization process for the cable tension sensor, the influence mechanism is studied between temperature and magnetization. In this paper, making Jiles-Atherton (JA) model as the theoretical basis and introducing the Curie temperature as additional parameter, a magnetic-thermo coupling model for the magnet elastic cable tension sensor is constructed by analyzing the temperature and the physical parameters of the model, followed that, a mathematical analysis is used for the model as the stress or temperature is changing. Compared the analytical results, the effects of the temperature to magnetization is obvious when the sensors is in magnetization rising or decline stage, and a reasonable magnetization working point not only can reduce the interference but insure the sensitivity to stress changing of the sensor.

• Periodical: Advanced Materials Research (Volumes 791-793)
• Pages: 1516-1519
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.791-793.1516
• Online since: September 2013
• Authors: De Dong Tang, Hong Jun Zhu, Jun Lan Mou, Ming Fang Wu
• Keywords: Jiles-Atherton Model, Magnetic Elastic Effect, Magnetization

References

[1] ZHANG Peng, LIU Xiao-liang, CHEN Wei-min, etc. Design method of magneto一elastic cable tension sensor[J]. Chinese Journal of Scientific Instrument, 2010, 31(11): 2467-2472.

[2] Sumitro S. True-Stress Measurement of PC Steels by EM Sensor [J]. Journal of Pre-Stressed Concrete Japan, 2001, 43(6): 99-103.

[3] LIU Xiao-liang, CHEN Wei-min, ZHANG Peng, etc. Double by-pass magneto-elastic cable tension sensor[J]. Transducer and Microsystem Technologies, 2011, 30(5): 94-97.

[4] TAND De-dong. Development of New in Situ Cable Tension Sensor[J]. Instrument Technique and Sensor, 2006(8): 1-2, 9.

[5] Lloyd G M, Singh V, Wang M L. Experimental Evaluation of Differential Thermal Errors in Magnetoelastic Stress Sensors for Re<180[J]. Sensors, 2002, 2: 810-81.

DOI: 10.1109/icsens.2002.1037211

[6] D. C. Jiles. Frequency dependence of hysteresis curves in conducting magnetic materials [J]. App. Phys. 1994, 76(10): 5849-5855.

DOI: 10.1063/1.358399

[7] ZHENG Jia-ju, WANG Hong-li, CAO Shu-ying. Frequent-dependent Dynamic Hysteresis M odel of Giant M agnetostrictive Actuator[J]. Chinese Journal of Mechanical Engineering, 2008, 44(7): 38-44.

DOI: 10.3901/jme.2008.07.038

[8] G. Bertotti. Physical interpretation of eddy current losses in ferromagnetic materials[J]. J. Appl. Phys. 1985, 57(6): 2110-2117.

DOI: 10.1063/1.334404

[9] A. Raghunathan, Y. Melikhov, J. E. Snyder, D. C. Jiles. Theoretical Model of Temperature Dependence of Hysteresis Based on Mean Field Theory[J]. IEEE Transactions on Magnetics, 2010, 46(6): 1507-1510.

DOI: 10.1109/tmag.2010.2045351
