Study on Thermal Cycling of Sn0.7Cu Solder

Abstract:

Thermal cycling of a unit Sn0.7Cu solder was studied based on the steady-state creep constitutive equation and Matlab software. The results show that there is a steady-state cycle for the thermal cycling of unit Sn0.7Cu eutectic solder. In steady-state thermal cycling, the shear stress is increased with the increase of temperature. There is a stage of stress relaxation during high temperature. A liner relationship between maximum shear stress and maximum shear strain is observed during thermal cycling. The metastable cycle number is declined greatly with the increase of maximum shear strain.

You might also be interested in these eBooks

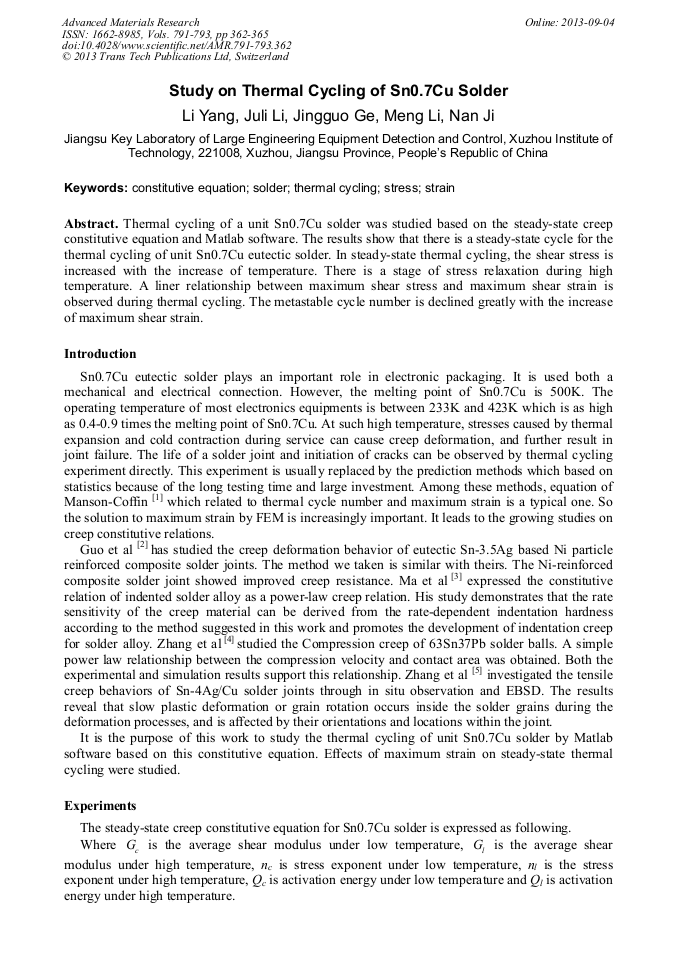

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 791-793)

Pages:

362-365

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.791-793.362

Citation:

Cite this paper

Online since:

September 2013

Authors:

Li Yang, Ju Li Li, Jing Guo Ge, Meng Li, Nan Ji

Keywords:

Constitutive Equation, Solder, Strain, Stress, Thermal Cycling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. S. Manson. Thermal Stress and Low-cycle Fatigue. Mcgraw-Hill, New York, (1966).

Google Scholar

[2] F. GUO, J. LEE, J.P. LUCAS, K.N. SUBRAMANIAN, T.R. BIELER. Creep Properties of Eutectic Sn-3. 5Ag Solder Joints Reinforced with Mechanically Incorporated Ni Particles. Journal of Electronic Materials. 30(9): 1222-1227. (2002).

DOI: 10.1007/s11664-001-0153-5

Google Scholar

[3] Xin Ma, Fusahito Yoshida. Rate-dependent indentation hardness of a power-law creep solder alloy. Applied Physic Letters, 82(2): 188-190. (2003).

DOI: 10.1063/1.1537513

Google Scholar

[4] Ning Zhang, Fuqian Yang, Yaowu Shi, Fu Guo. Compression creep of 63Sn37Pb solder balls. Acta Materilia. 59: 3156-3163. (2011).

DOI: 10.1016/j.actamat.2011.01.055

Google Scholar

[5] Q.K. Zhang, Z.F. Zhang. In situ tensile creep behaviors of Sn–4Ag/Cu solder joints revealed by electron backscatter diffraction. Scripta Materialia. 67: 289-292. (2012).

DOI: 10.1016/j.scriptamat.2012.05.005

Google Scholar
