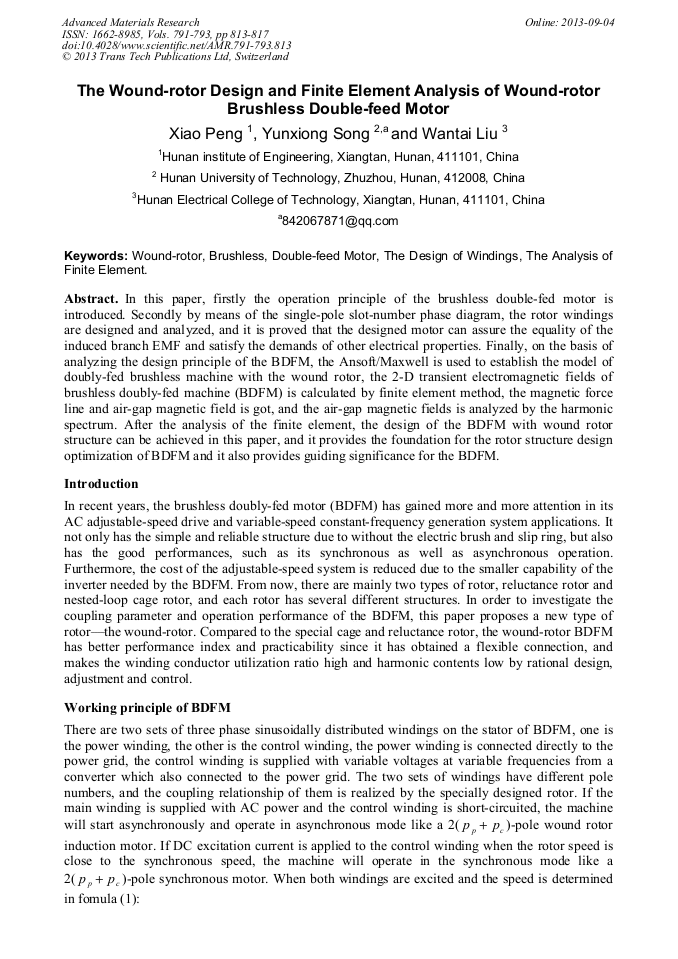

The Wound-Rotor Design and Finite Element Analysis of Wound-Rotor Brushless Double-Feed Motor

Abstract:

In this paper, firstly the operation principle of the brushless double-fed motor is introduced. Secondly by means of the single-pole slot-number phase diagram, the rotor windings are designed and analyzed, and it is proved that the designed motor can assure the equality of the induced branch EMF and satisfy the demands of other electrical properties. Finally, on the basis of analyzing the design principle of the BDFM, the Ansoft/Maxwell is used to establish the model of doubly-fed brushless machine with the wound rotor, the 2-D transient electromagnetic fields of brushless doubly-fed machine (BDFM) is calculated by finite element method, the magnetic force line and air-gap magnetic field is got, and the air-gap magnetic fields is analyzed by the harmonic spectrum. After the analysis of the finite element, the design of the BDFM with wound rotor structure can be achieved in this paper, and it provides the foundation for the rotor structure design optimization of BDFM and it also provides guiding significance for the BDFM.

• Periodical: Advanced Materials Research (Volumes 791-793)
• Pages: 813-817
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.791-793.813
• Online since: September 2013
• Authors: Xiao Peng, Yun Xiong Song, Wan Tai Liu
• Keywords: Analysis of Finite Element, Brushless, Design of Windings, Double-Feed Motor, Wound-Rotor

References

[1] Wang, X, McMahon, R. A, and Tavner, P.J. Design of the brushless doubly-fed (induction), Proceedings of IEEE International Electric Machines and Drives Conference, IEMDC 2007, vol 2, pp.1508-1513.

DOI: 10.1109/iemdc.2007.383651

[2] Y. Liao, L. Xu and L. Zhen, Design of a doubly fed reluctance motor for adjustable-speed drives, IEEE Transactions on Industry Applications, vol. 32, No. 5 1996, pp.1195-1203.

DOI: 10.1109/28.536883

[3] L. Xu, Analysis of a Doubly-excited Brushless Reluctance Machine by Finite Element Method, IEEE industry Application Society Annual Meeting, 1992, Houston, vol. 1, pp.171-177.

DOI: 10.1109/ias.1992.244448

[4] Roberte, Miluting. Theoretical analysis of control properties for the Brushless doubly feed reluctance Machine [J] IEEE Translation on Energy Conversion, 2000, 17, 17(3): 332-339.

DOI: 10.1109/tec.2002.801997

[5] L. J. Hunt. The Cascade Induction Motor, [J]. IEE Vol. 52, 1914, pp.406-426.
