Study on Chemical Mechanical Polishing Parameters of 6H-SiC Crystal Substrate Based on Diamond Abrasive

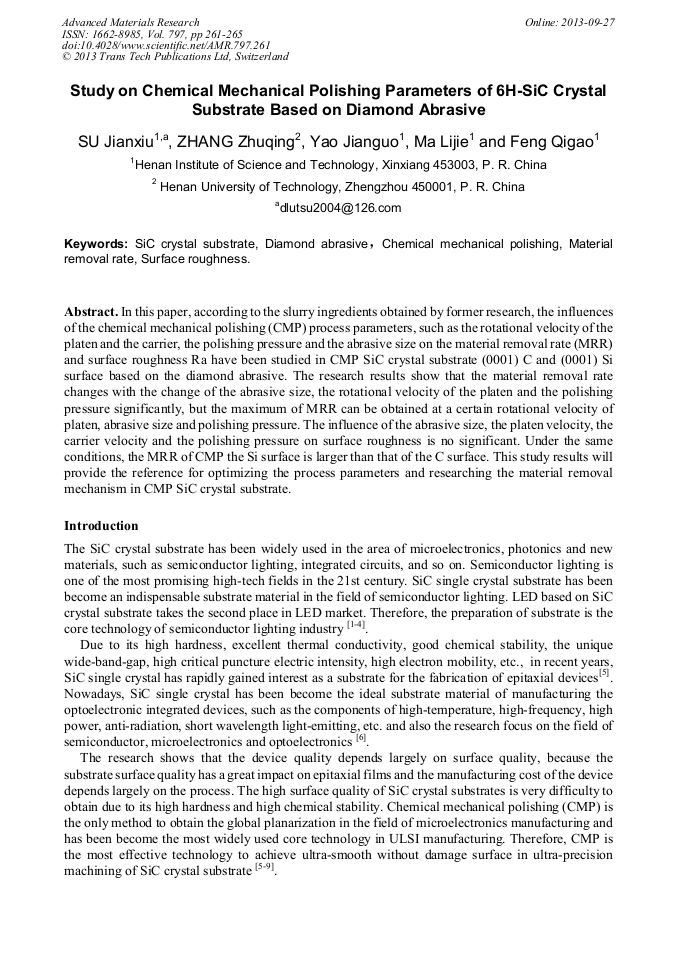

Article Preview

Abstract:

In this paper, according to the slurry ingredients obtained by former research, the influences of the chemical mechanical polishing (CMP) process parameters, such as the rotational velocity of the platen and the carrier, the polishing pressure and the abrasive size on the material removal rate (MRR) and surface roughness Ra have been studied in CMP SiC crystal substrate (0001) C and (0001) Si surface based on the diamond abrasive. The research results show that the material removal rate changes with the change of the abrasive size, the rotational velocity of the platen and the polishing pressure significantly, but the maximum of MRR can be obtained at a certain rotational velocity of platen, abrasive size and polishing pressure. The influence of the abrasive size, the platen velocity, the carrier velocity and the polishing pressure on surface roughness is no significant. Under the same conditions, the MRR of CMP the Si surface is larger than that of the C surface. This study results will provide the reference for optimizing the process parameters and researching the material removal mechanism in CMP SiC crystal substrate.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

261-265

Citation:

Online since:

September 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] W.J. Everson, D.W. Snyder and V.D. Heydemann: Mater. Sci. Forum Vol. 338-342 (2000), p.837.

Google Scholar

[2] L. Canhua, B. Ishwarab, W. Rongiun: J. of Electro. Mater. Vol. 33, No. 5(2004), p.481~486.

Google Scholar

[3] Joon-Ho An, Gi -Sub Lee, Won-Jae Lee, et al. Mater. Sci. Forum Vol. 600-603 (2009), pp.831-834.

Google Scholar

[4] http: /www. nanoclub. tw/research/SiC_on_Si/SiC_on_Si_wafer_materials. htm.

Google Scholar

[5] Hojun Lee, Boumyoung Park, Sukhoon Jeong: J. of Ceramic Processing Research. Vol. 10, No. 3, (2009), p.378~381.

Google Scholar

[6] Y.C. Lin and C.H. Kao. Int. J. Adv. Manuf. Tech. Vol. 25, (2005), pp.33-40.

Google Scholar

[7] H. Hara, Y. Sano, H. Mimura, et al. J. of Electro. Mater., Vol. 35, No. 8(2005) p.11-L14.

Google Scholar

[8] Su Jianxiu, Du Jiaxi, Ma Lijie, et al. J. of Semi. Vol. 33, No. 10 (2012) pp.106003-1~106003-7.

Google Scholar

[9] Su Jianxiu, Chen Xiqu, Du Jiaxi, et al. J. of Semi., Vol. 31, No. 5 (2010), pp.056002-1~056002-6.

DOI: 10.1088/1674-4926/31/5/056002

Google Scholar
