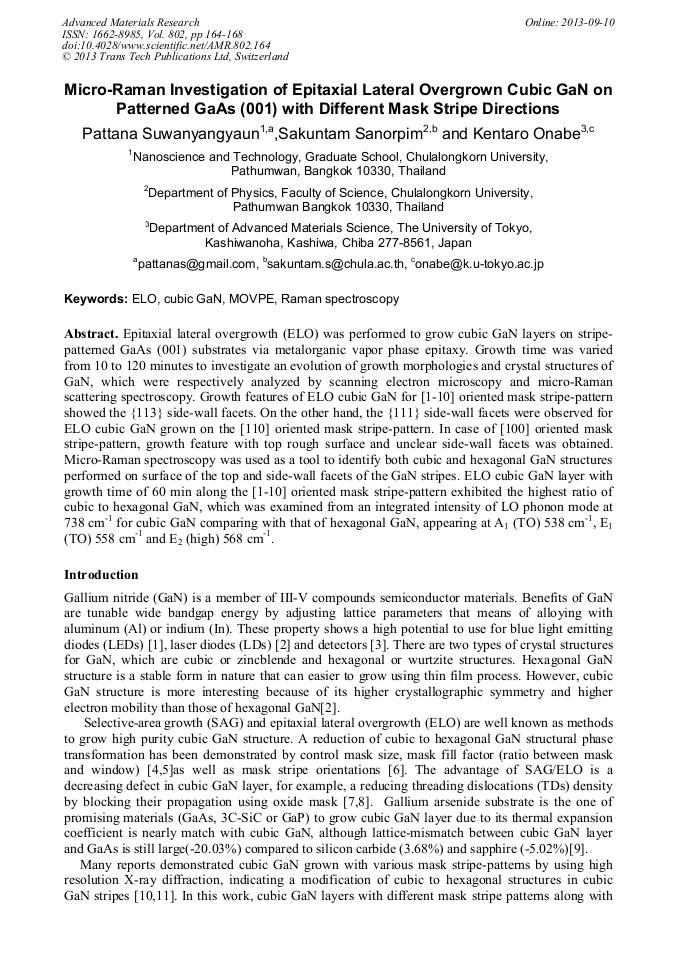

Micro-Raman Investigation of Epitaxial Lateral Overgrown Cubic GaN on Patterned GaAs (001) with Different Mask Stripe Directions

Abstract:

Epitaxial lateral overgrowth (ELO) was performed to grow cubic GaN layers on stripe-patterned GaAs (001) substrates via metalorganic vapor phase epitaxy. Growth time was varied from 10 to 120 minutes to investigate an evolution of growth morphologies and crystal structures of GaN, which were respectively analyzed by scanning electron microscopy and micro-Raman scattering spectroscopy. Growth features of ELO cubic GaN for [1-10] oriented mask stripe-pattern showed the {113} side-wall facets. On the other hand, the {111} side-wall facets were observed for ELO cubic GaN grown on the [110] oriented mask stripe-pattern. In case of [100] oriented mask stripe-pattern, growth feature with top rough surface and unclear side-wall facets was obtained. Micro-Raman spectroscopy was used as a tool to identify both cubic and hexagonal GaN structures performed on surface of the top and side-wall facets of the GaN stripes. ELO cubic GaN layer with growth time of 60 min along the [1-10] oriented mask stripe-pattern exhibited the highest ratio of cubic to hexagonal GaN, which was examined from an integrated intensity of LO phonon mode at 738 cm^-1 for cubic GaN comparing with that of hexagonal GaN, appearing at A₁ (TO) 538 cm^-1, E₁ (TO) 558 cm^-1 and E₂ (high) 568 cm^-1.

You might also be interested in these eBooks

Advances in Material Science and Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 802)

Pages:

164-168

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.802.164

Citation:

Cite this paper

Online since:

September 2013

Authors:

Pattana Suwanyangyaun, Sakuntam Sanorpim, Kentaro Onabe

Keywords:

Cubic GaN, ELO, MOVPE, Raman Spectroscopy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Nakamura, Blue light emitting laser diodes, Thin Solid Films 343-344 (1999) 345-349.

DOI: 10.1016/s0040-6090(98)01690-3

Google Scholar

[2] S. Yoshida, Growth of cubic III-nitride semiconductors for electronics and optoelectronics application, Physica E 7 (2000) 907-914.

DOI: 10.1016/s1386-9477(00)00086-2

Google Scholar

[3] O. Ambacher, Growth and applications of Group III-nitrides, J. Phys. D: Appl. Phys. 31 (1998) 2653-2710.

DOI: 10.1088/0022-3727/31/20/001

Google Scholar

[4] Y. Fu, H. Yang, D.G. Zhao, X.H. Zheng, S.F. Li, Y.P. Sun, Z.H. Feng, Y.T. Wang, L.H. Duan, Epitaxial lateral growth of cubic GaN by metalorganic chemical vapor deposition, J. Cryst. Growth 225 (2001) 45-49.

DOI: 10.1016/s0022-0248(01)01029-6

Google Scholar

[5] K. Hiramatsu, Epitaxial lateral overgrowth techniques used in group III nitride epitaxy, J. Phys: Condens. Matter 13 (2001) 6961-6975.

DOI: 10.1088/0953-8984/13/32/306

Google Scholar

[6] S. Sanorpim, E. Takuma, R. Katayama, K. Onabe, H. Ichinose, Y. Shiraki, Reduction of Planar Defect Density in Laterally Overgrown Cubic-GaN on Patterned GaAs (001) Substrates by MOVPE, Phys. Stat. Sol. (b) 243 No.3 (2002) 840-844.

DOI: 10.1002/1521-3951(200212)234:3<840::aid-pssb840>3.0.co;2-k

Google Scholar

[7] S. Sanorpim, E. Takuma, H. Ichinose, R. Katayama, K. Onabe, Structural transition control of laterally overgrown c-GaN and h-GaN on stripe-patterned GaAs (001) Substrates by MOVPE, Phys. Stat. Sol. (b) 244 No.6 (2007) 1769-1774.

DOI: 10.1002/pssb.200674716

Google Scholar

[8] L. Liu, J.H. Edgar, Substrates for gallium nitride epitaxy, Materials Science and Engineering R 37 (2002) 61-127.

DOI: 10.1016/s0927-796x(02)00008-6

Google Scholar

[9] S.A. Kukushkin, A.V. Osipov, V.N. Bessolov, B.K. Medvedev, V.K. Nevolin, K.A. Tcarik, Substrates for epitaxy of gallium nitride: new materials and techniques, Rev.Adv.Mater.Sc. 17 (2008) 1-32.

Google Scholar

[10] X.L. Sun, Y.T. Wang, H. Yang, J.B. Li, L.X. Zheng, D.P. Xu, Z.G. Wang, The content calculation of hexagonal phase inclusions in cubic GaN films on GaAs (001) substrates grown by metalorganic chemical vapor deposition, Thin Solid Films 368 (2000) 237-240.

DOI: 10.1016/s0040-6090(00)00772-0

Google Scholar

[11] S. Suandon, S. Sanorpim, K. Yoodee, K. Onabe, Effect of growth temperature on polytype transition of GaN from zincblende to wurtzite, Thin Solid Films 515 (2007) 4393-4396.

DOI: 10.1016/j.tsf.2006.07.109

Google Scholar

[12] S. Sanorpim, J. Wu, K. Onabe, Y. Shiraki, Effects of growth temperature in selective-area growth of cubic GaN on GaAs (100) by MOVPE, J. Cryst. Growth 237-239 (2002) 1124-1128.

DOI: 10.1016/s0022-0248(01)02068-1

Google Scholar
