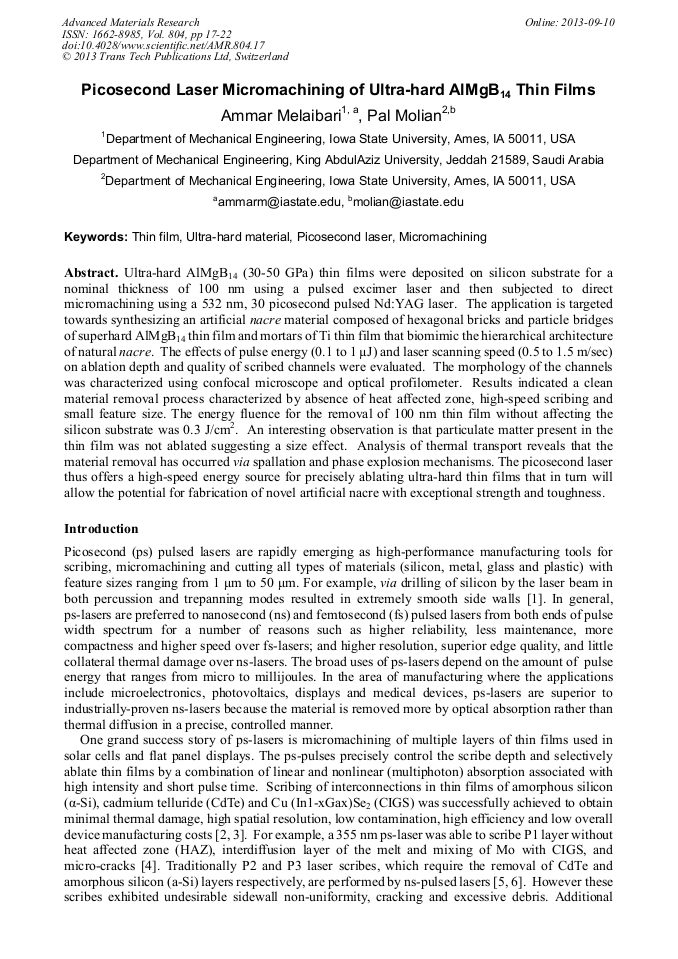

Picosecond Laser Micromachining of Ultra-Hard AlMgB₁₄ Thin Films

Abstract:

Ultra-hard AlMgB₁₄ (30-50 GPa) thin films were deposited on silicon substrate for a nominal thickness of 100 nm using a pulsed excimer laser and then subjected to direct micromachining using a 532 nm, 30 picosecond pulsed Nd:YAG laser. The application is targeted towards synthesizing an artificial nacre material composed of hexagonal bricks and particle bridges of superhard AlMgB₁₄ thin film and mortars of Ti thin film that biomimic the hierarchical architecture of natural nacre. The effects of pulse energy (0.1 to 1 μJ) and laser scanning speed (0.5 to 1.5 m/sec) on ablation depth and quality of scribed channels were evaluated. The morphology of the channels was characterized using confocal microscope and optical profilometer. Results indicated a clean material removal process characterized by absence of heat affected zone, high-speed scribing and small feature size. The energy fluence for the removal of 100 nm thin film without affecting the silicon substrate was 0.3 J/cm². An interesting observation is that particulate matter present in the thin film was not ablated suggesting a size effect. Analysis of thermal transport reveals that the material removal has occurred via spallation and phase explosion mechanisms. The picosecond laser thus offers a high-speed energy source for precisely ablating ultra-hard thin films that in turn will allow the potential for fabrication of novel artificial nacre with exceptional strength and toughness.

• Periodical: Advanced Materials Research (Volume 804)
• Pages: 17-22
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.804.17
• Online since: September 2013
• Authors: Ammar Melaibari, Pal Molian
• Keywords: Micro Machining, Picosecond Laser, Thin Film, Ultra-Hard Material

References

[1] C. Dorman and M. Schulze: LTJ September 2008 No. 4 (WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim).

[2] S. Selleri, A. Cucinotta, F. Poli and D. Passaro: IEEE, (2009), p.1.

[3] H. Booth: Journal of Laser Micro/Nanoengineering, 5(3) (2010), p.183.

[4] P. Gecys, G. Raciukaitis, M. Gedvilas, A. Braun and S. Ragnow: Laser Institute of America, Anaheim, CA, United States, 3 (2010), p.1210.

[5] J. Su, D. Tanner, and C. Eberspacher, Proceedings of 23rd European Photovoltaic Solar Energy Conference, Valencia, Spain (2008), p.2479.

[6] J. Bonse, R. Patel, S. Manuef, R. Desailly, C. Devasia and D. Clark: Proceedings of 23rd European Photovoltaic Solar Energy Conference, Valencia, Spain (2008), p.2325.

[7] B. Baird, Proc. of SPIE, 7580 (2010), pp. 75800Q-1-75800Q-9.

[8] B. Baird, T. Gerke, K. Wieland and N. Paudel: 26th European Photovoltaic Solar Energy Conference and Exhibition, (2011), p.2470.

[9] www. Coherent. com, A Unique Laser Process for Rapid Patterning of Thin Films (2009).

[10] T. Gerke and B. Baird: ICALEO Conference Proceedings (2011), LIA, Florida.

[11] B. Cook, J. Harringa, T. Lewis and A. Russell : Scripta Materalia 42 (6), (2000) p.597.

[12] http: /www. fianium. com/pdf/he-1064-532(v1. 1). pdf.

[13] A. Melaibari and P. Molian: J. Appl. Phys. 112 (2012), p.104303.

[14] E. Leveugle, D. Ivanov and L. Zhigilei: Applied Physics A: Materials Science & Processing 79 (2004) p.1643.

[15] C. Cheng and X. Xu: Physical Review B 72 (2005) p.165415.

[16] F. Vidal, T. Johnston, S. Laville, O. Barthélemy, M. Chaker, B. Le Drogoff, J. Margot and M. Sabsabi: Physical Review Letters 86 (2001) p.2573.

DOI: 10.1103/physrevlett.86.2573

[17] N.N. Nedialkov, S. Imamova and P. Atanasov: Journal of Physics D: Applied Physics, 37 (2004) p.638.
