The Study on Dynamic Characteristics for Heald Frame Designed by New Type Composite of Carbon-Fibre

Abstract:

For reducing heald frames vibration and noise in the process of weaving, composite of Carbon-Fibre was applied to it, and three methods of lay up for laminate was designed in the paper. Finite element model of the heald frame was set up, and element shell 181 was used to simulate different layers of the composite material, then some important natural frequencies and vibration modes were calculated, and the results of that was compared with another heald frame made of aluminium alloy. The analysis result indicated that, the second method for laying had an optimum dynamic characteristics, based on that, fundamental frequency of the heald frame was increased by 19.48Hz, and self-weight of it was lightened about 26.82%. In results, lightweight design of the heald frame was come true, at the same time, vibration resistance of it was also strengthened effectively.

You might also be interested in these eBooks

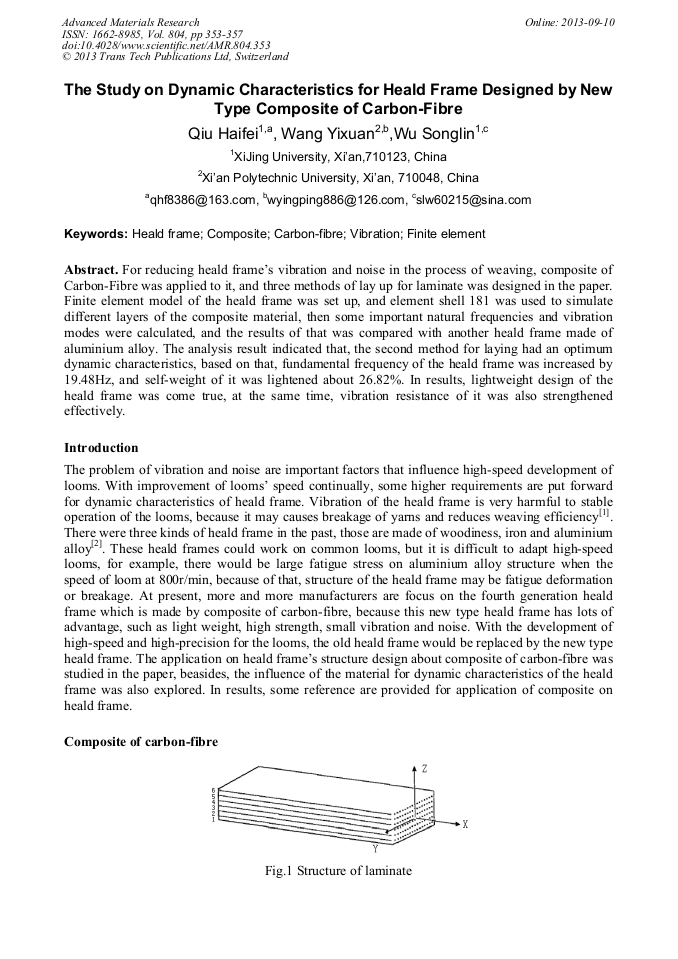

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 804)

Pages:

353-357

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.804.353

Citation:

Cite this paper

Online since:

September 2013

Authors:

Hai Fei Qiu, Yi Xuan Wang, Song Lin Wu

Keywords:

Carbon Fiber (CF), Composite, Finite Element, Heald Frame, Vibration

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xu Shi-qiang, Feng Zhi-hua. Modal Analysis of Heald Frame and Experimental Verification[J]. Journal of SuZhou University(Engineering Science Edition), 2008, 28(2): 34-36.

Google Scholar

[2] Huo Fu-lei. Design and Peparation for Composite Material in Mixed Sandwich Structure Used for Feald Frame [D]. Tianjin Polytechnic University, 2012: 8-15.

Google Scholar

[3] Xu Zhi-wei, Huang Yu-dong, Liu Li, etc. Irregular Section Carbon Fiber and its Effects on Mechanical Properties of Composite[J]. Journal of Aeronautical Materials, 2007, 27(02): 52-57.

Google Scholar

[4] Zhang Yi-he. Composite Materials [M]. BeiJin: Chemical Industry Press, 2011: 58-65.

Google Scholar

[5] Qiu Hai-fei, Wang Yi-xuan, Liu Xin. Optimal Design for Modal Frequency of Heald Frame [J]. Journal of Machine Design, 2012, 29(05): 35-38.

Google Scholar
