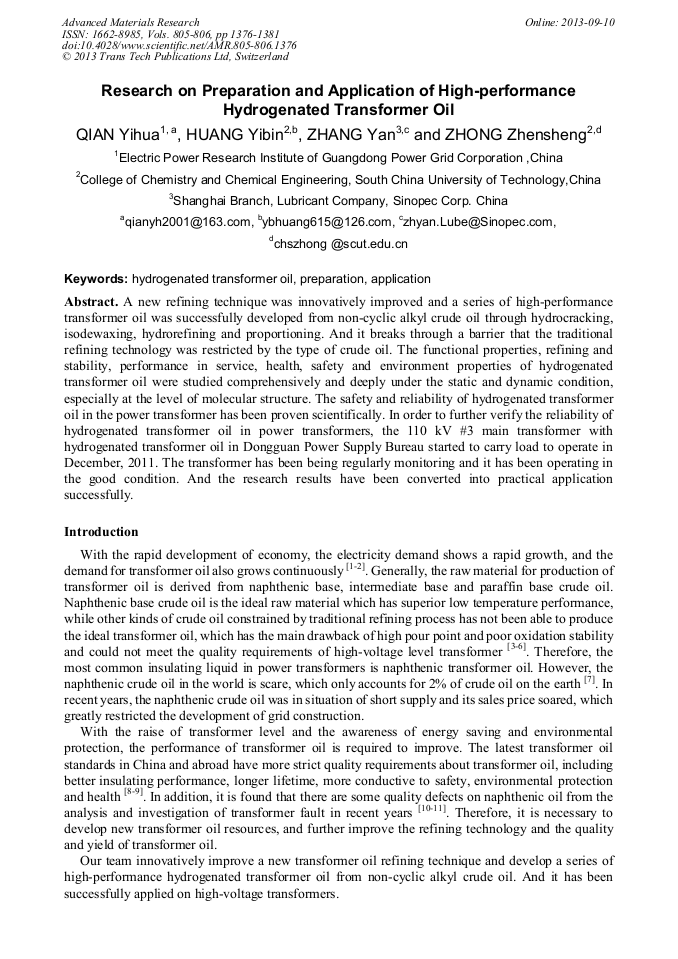

Research on Preparation and Application of High-Performance Hydrogenated Transformer Oil

Abstract:

A new refining technique was innovatively improved and a series of high-performance transformer oil was successfully developed from non-cyclic alkyl crude oil through hydrocracking, isodewaxing, hydrorefining and proportioning. And it breaks through a barrier that the traditional refining technology was restricted by the type of crude oil. The functional properties, refining and stability, performance in service, health, safety and environment properties of hydrogenated transformer oil were studied comprehensively and deeply under the static and dynamic condition, especially at the level of molecular structure. The safety and reliability of hydrogenated transformer oil in the power transformer has been proven scientifically. In order to further verify the reliability of hydrogenated transformer oil in power transformers, the 110 kV #3 main transformer with hydrogenated transformer oil in Dongguan Power Supply Bureau started to carry load to operate in December, 2011. The transformer has been being regularly monitoring and it has been operating in the good condition. And the research results have been converted into practical application successfully.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 1376-1381
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.1376
• Online since: September 2013
• Authors: Yi Hua Qian, Yi Bin Huang, Yan Zhang, Zhen Sheng Zhong
• Keywords: Application, Hydrogenated Transformer Oil, Preparation

References

[1] Ruijin Liao, Fumin Sang, Gang Liu, Lijun Yang. Study on Neutral Acid and Water Dissolved in Oil for Different Types of Oil-paper Insulation Compositions of Transformers in Accelerated Ageing Tests, Proceeding of the CSEE, Vol. 30, No. 4, pp.125-131, (2010).

[2] Chao Tang, Ruijin Liao, Feilong Huang, Lijun Yang, Mengzhao Zhu. The Breakdown Voltage of Power Transformer Insulation Paper After Thermal Aging, Transactions of China Eletrotechnical Slciety, Vol. 25, No. 11, pp.1-8, (2010).

[3] Nianzhu Wen, Technology of Electrical Oil,. Beijing: China Waterpower Press, pp.8-9, (2009).

[4] Hongmei Wang, Power oil (gas) , Beijing: Chemical Industry Press, pp.12-13, (2009).

[5] Shujie Ma, Lingjun Zhang, Junjie Yang. Application of Naphthenic Base Oil to Transformer. Transformer, Vol. 42, No. 3, pp.28-30, (2005).

[6] Liao Ruijin, Jian Hao, Shuaiwei Liang, Mengzhao Zhu, Lijun Yang. Choice of Antioxidants Added in Insulation Oil and Its Anti-oxidant Synergistic Effect, High Voltage Engineering, 124-131. Vol. 38, No. 1, pp.124-131, (2012).

DOI: 10.1109/ichve.2012.6357110

[7] Liu Fenglin, Xu Wei. Characteristic Comparision between Paraffine-Base and Naphthene-Base Transformer Oils, Transformer, Vol. 41, No. 7, pp.27-29, (2004).

[8] GB 2536-2011 Fluids for electrotechnical applications-Unused mineral insulating oils for transformers and switchgear. Standard of China.

DOI: 10.3403/03115282u

[9] IEC 60296-2012 Fluids for electrotechnical applications-Unused mineral insulating oils for transformers and switchgear. International Standard.

DOI: 10.3403/30213529

[10] Yihua Qian, Honghong Hu, Zhi Li. Analysis and Countermeasure of Tranformer Faults Caused by Corrosive Sulfur. GBMCE (2011).

[11] Smith J. R, Sen P.K. Corrosive sulfur in transformer oil, 2010 IEEE Industry Applications Society Annual Meeting.

DOI: 10.1109/ias.2010.5616912

[12] Yihua Qian, Yongpin Lin, Haiyan Wu, Yibin Huang, Zhensheng Zhong. A comparative Study on the Electrical Properties of Hydrogenated Transformer Oil and Napthenic Transformer Oil. 2012 IEEE International Symposium on Electrical Insulation.

DOI: 10.1109/elinsl.2012.6251489
