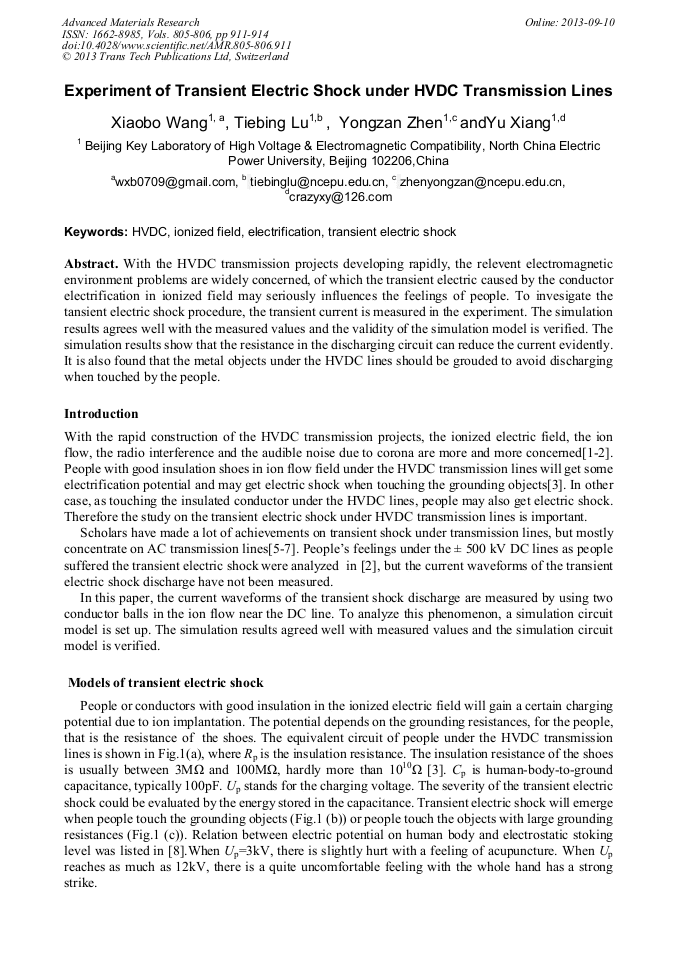

Experiment of Transient Electric Shock under HVDC Transmission Lines

Abstract:

With the HVDC transmission projects developing rapidly, the relevent electromagnetic environment problems are widely concerned, of which the transient electric caused by the conductor electrification in ionized field may seriously influences the feelings of people. To invesigate the tansient electric shock procedure, the transient current is measured in the experiment. The simulation results agrees well with the measured values and the validity of the simulation model is verified. The simulation results show that the resistance in the discharging circuit can reduce the current evidently. It is also found that the metal objects under the HVDC lines should be grouded to avoid discharging when touched by the people.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 911-914
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.911
• Online since: September 2013
• Authors: Xiao Bo Wang, Tie Bing Lu, Yong Zan Zhen, Yu Xiang
• Keywords: Electrification, HVDC, Ionized Field, Transient Electric Shock

References

[1] Sarma M P . Corona performance of high-voltage transmission lines[M]. England: Research Studies PressLtd. 2000: 179-211.

[2] Shunyuan Li. Experimental Research on Electric Field Effect and Human feelings under ± 500 kV DC Transmission Lines[J]. Power System Technology, 1991, 46(1): 25-31(in Chinese).

[3] Yongzan Zhen, Xiang Cui, Tiebing Lu. Calculating Charged Electric Potential of the Conductor in Ionized Field[J]. Proceedings of the CSEE, 2011, 31(27): 8-13(in Chinese).

[4] J. Patrick Reilly. Characteristics of spark discharges from vehicles energized by AC electric fields[J]. Trans. IEEE , 1982, 101(9): 3178-3186.

DOI: 10.1109/tpas.1982.317553

[5] P. S. Maruvada and N. Hylten-Cavallius. Capacitance Calculations for Some Basic High Voltage Electrode Configurations[J]. Trans. IEEE , 1975, 94(5): 1708-1713.

DOI: 10.1109/t-pas.1975.32014

[6] Delaplace L R, Reilly J P. Electric and magnetic field coupling from high voltage AC power transmission lines-classification of short-term effects on people [J]. IEEE Transaction on Power Apparatus and Systems, 1978, 97(6): 2243-2242.

DOI: 10.1109/tpas.1978.354728

[7] J. Patrick Reilly, W. D. Larkin. Human Sensitivity to Electric Shock Induced by Power-Frequency Electric Fields[J]. IEEE Transactions on Electromagnetic Compatibility, 1987, EMC-VOL. 29(3).

DOI: 10.1109/temc.1987.304372

[8] GB 12158—2006 General guideline for preventing electrostatic accidents[S].
