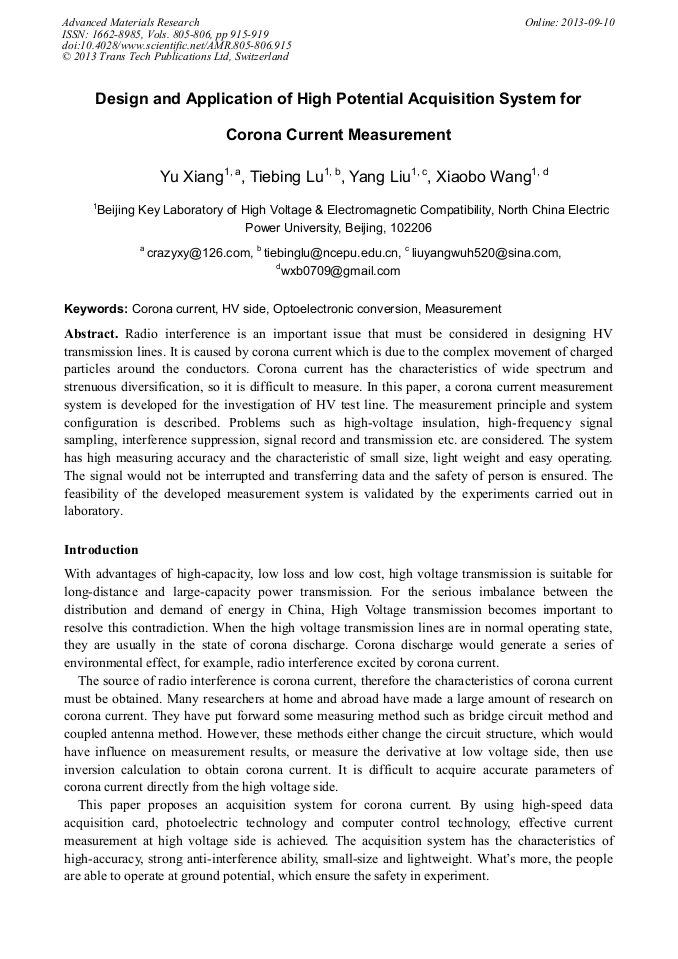

Design and Application of High Potential Acquisition System for Corona Current Measurement

Abstract:

Radio interference is an important issue that must be considered in designing HV transmission lines. It is caused by corona current which is due to the complex movement of charged particles around the conductors. Corona current has the characteristics of wide spectrum and strenuous diversification, so it is difficult to measure. In this paper, a corona current measurement system is developed for the investigation of HV test line. The measurement principle and system configuration is described. Problems such as high-voltage insulation, high-frequency signal sampling, interference suppression, signal record and transmission etc. are considered. The system has high measuring accuracy and the characteristic of small size, light weight and easy operating. The signal would not be interrupted and transferring data and the safety of person is ensured. The feasibility of the developed measurement system is validated by the experiments carried out in laboratory.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 915-919
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.915
• Online since: September 2013
• Authors: Yu Xiang*, Tie Bing Lu, Yang Liu, Xiao Bo Wang
• Keywords: Corona Current, HV Side, Measurement, Optoelectronic Conversion

References

[1] J.G. Anderson: Extra High Voltage Transmission Line. Water Resources and Electric Power Press, 1979, 28(4): 77-81 (in Chinese).

[2] Sarma M P: Corona performance of high voltage transmission lines. Taylor& Francis Group, 2000: 113-114.

[3] Zhao Tiebin: Measurement and calculation of hybrid and HVDC power line corona effects. Ohio State University. (1995).

[4] Lekganyane M J, Ijumba N M, Britten A C: A comparative study of space charge effects on corona current using an indoor corona cage and a monopolar test line. Power Engineering Society Conference and Exposition in Africa. (2007).

DOI: 10.1109/pesafr.2007.4498035

[5] Jonson E S, Pedrow P D and Bai Lin Qin: Influence of voltage and load current on dc bipolar corona pulses, IEEE Transactions on Dielectrics and Electrical Insulation. 1994, 1(2): 284-293.

DOI: 10.1109/94.300261

[6] Xidong Liang, Changyu Chen and Yuanxiang Zhou: High Voltage Engineering. Tsinghua University Press. 2003 (in Chinese).

[7] Guangli Wang, Zhengcai Fu, Jian Chen and Wei Sun: Corona Current Investigation of HVDC Testing Line by Sampling Resistance Method. Electrical Engineering. 2010, 3: 26-28 (in Chinese).

[8] Jianping Luo, Yangqing Zhou, Minjie Liang and Shulin Li : Photoelectric transmission system for high voltage test. High Voltage Engineering. 1984, 12 (in Chinese).

[9] Jinji Yang: Gas Discharge. Science Press. 1983 (in Chinese).
