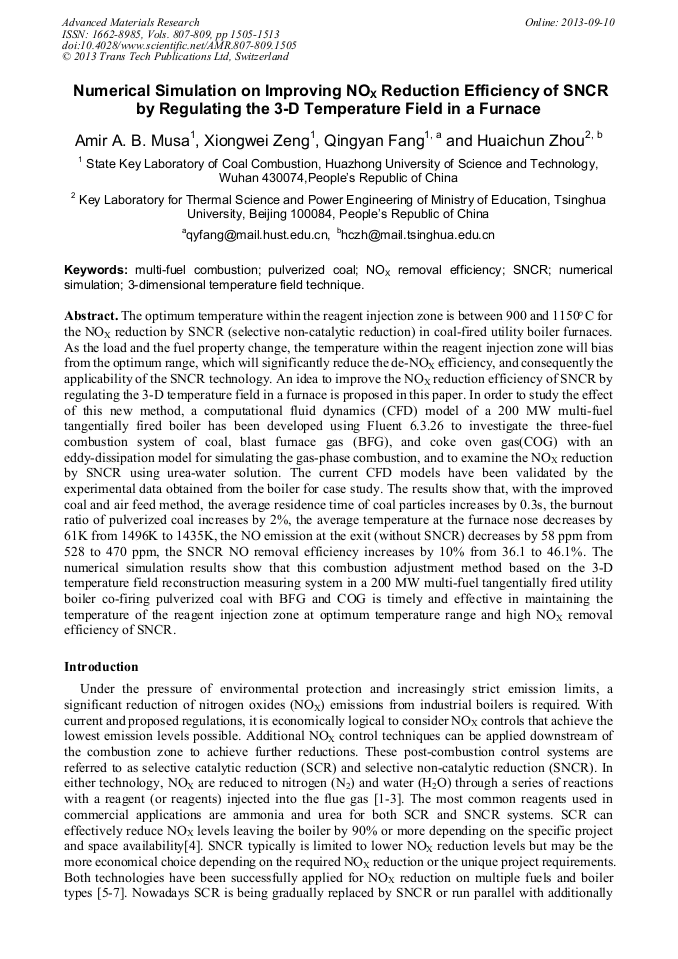

Numerical Simulation on Improving NO_x Reduction Efficiency of SNCR by Regulating the 3-D Temperature Field in a Furnace

Abstract:

The optimum temperature within the reagent injection zone is between 900 and 1150°C for the NO_X reduction by SNCR (selective non-catalytic reduction) in coal-fired utility boiler furnaces. As the load and the fuel property changes, the temperature within the reagent injection zone will bias from the optimum range, which will reduces significantly the de-NO_X efficiency, and consequently the applicability of SNCR technology. An idea to improve the NO_X reduction efficiency of SNCR by regulating the 3-D temperature field in a furnace is proposed in this paper. In order to study the new method, Computational fluid dynamics (CFD) model of a 200 MW multi-fuel tangentially fired boiler have been developed using Fluent 6.3.26 to investigate the three-fuel combustion system of coal, blast furnace gas (BFG), and coke oven gas (COG) with an eddy-dissipation model for simulating the gas-phase combustion, and to examine the NO_X reduction by SNCR using urea-water solution. The current CFD models have been validated by the experimental data obtained from the boiler for case study. The results show that, with the improved coal and air feed method, average residence time of coal particles increases 0.3s, burnout degree of pulverized coal increases 2%, the average temperature at the furnace nose decreases 61K from 1496K to 1435K, the NO emission at the exit (without SNCR) decreases 58 ppm from 528 to 470 ppm, the SNCR NO removal efficiency increases 10% from 36.1 to 46.1%. The numerical simulation results show that this combustion adjustment method based on 3-D temperature field reconstruction measuring system in a 200 MW multi-fuel tangentially fired utility boiler co-firing pulverized coal with BFG and COG is timely and effective to maintain the temperature of reagent injection zone at optimum temperature range and high NO_X removal efficiency of SNCR.

• Periodical: Advanced Materials Research (Volumes 807-809)
• Pages: 1505-1513
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.807-809.1505
• Online since: September 2013
• Authors: Amir A.B. Musa, Xiong Wei Zeng, Qing Yan Fang, Huai Chun Zhou
• Keywords: 3-Dimensional Temperature Field Technique, Multi-Fuel Combustion, NO_X Removal Efficiency, Numerical Simulation, Pulverized Coal, SNCR

References

[1] Zhou, W., et al., Development and implementation of numerical simulation for a selective non-catalytic reduction system design. Industrial & Engineering Chemistry Research, 2009. 48(24): pp.10994-11001.

DOI: 10.1021/ie9004089

[2] Zhou, W., et al., Design and Test of a Selective Non-catalytic Reduction (SNCR) System for Full-Scale Refinery CO Boilers To Achieve High NOX Removal. Energy & Fuels, 2010. 24(7): pp.3936-3941.

DOI: 10.1021/ef100443s

[3] Lv, Y., et al., Full-Scale Numerical Investigation of a Selective Non-catalytic Reduction (SNCR) System in a 100 MW Utility Boiler with Complex Chemistry and Decoupling Approach. Energy & Fuels, 2010. 24(10): pp.5432-5440.

DOI: 10.1021/ef100712e

[4] Sun, L., et al., Flexible NOX Abatement from Power Plants in the Eastern United States. Environmental science & technology, 2012. 46(10): pp.5607-5615.

[5] Saario, A., et al., Comparison of global ammonia chemistry mechanisms in biomass combustion and selective non-catalytic reduction process conditions. Energy & Fuels, 2007. 22(1): pp.297-305.

DOI: 10.1021/ef700238a

[6] Lv, Y., et al., Development and Validation of a Reduced Mechanism for Urea-based SNCR Process based on QSS Graph. Energy & Fuels, 2009. 23(7): pp.3605-3611.

DOI: 10.1021/ef900165k

[7] Nguyen, T.D., et al., Application of urea-based SNCR to a municipal incinerator: On-site test and CFD simulation. Chemical Engineering Journal, 2009. 152(1): pp.36-43.

DOI: 10.1016/j.cej.2009.03.025

[8] M. Tayyeb Javed, et al., Control of combustion-generated nitrogen oxides by selective non-catalytic reduction, J. Environ. Manage. 83 (2007). 251–289.

DOI: 10.1016/j.jenvman.2006.03.006

[9] N.S. Hermine, et al., Developments in NOX abatement and control, IEACR/89, (1996).

[10] S. Zandaryaa, et al., Nitrogen oxides from waste incineration: control by selective non-catalytic reduction Chemosphere 42 (2001) 491–497.

DOI: 10.1016/s0045-6535(00)00221-6

[11] J. Furrer, et al., Balance of NH3 and behavior of polychlorinated dioxins and furans in the course of the selective non-catalytic reduction of nitric oxide at the TAMARA waste incineration plant, Waste Manage. 18 (1998) 417–442.

DOI: 10.1016/s0956-053x(98)00125-1

[12] J. Brouwer, et al., A model for prediction of selective non-catalytic reduction of nitrogen oxides by ammonia, urea and cyanuric acid with mixing limitations in the presence of CO, Twenty-Sixth Symposium (International) on Combustion/The Combustion Institute, 1996, p.2117.

DOI: 10.1016/s0082-0784(96)80036-1

[13] M.S. Skjoth-Rasmunssen, et al., Post-processing of detailed chemical kinetic mechanisms onto CFD simulations, Comput. Chem. Eng. 28(2004) 2351–2361.

[14] B.R. Stanmore, et al., Prediction of NO emissions from a number of coalfired power station boilers, Fuel Process. Technol. 64 (2000) 25–46.

DOI: 10.1016/s0378-3820(99)00069-7

[15] X. Han, et al., Detailed modeling of hybrid reburn/SNCR processes for NOX reduction in coal-fired furnaces, Combust. Flame 132 (2003) 374–386.

DOI: 10.1016/s0010-2180(02)00481-9

[16] H. -S. Kim, et al., Numerical of SNCR application to a full-scale stoker incinerator at Daejon 4th industrial complex, Appl. Therm. Eng. 24 (2004) 2117–2129. 1.

DOI: 10.1016/j.applthermaleng.2004.01.010

[17] J. Chacon, et al., Investigation on the design and optimization of a low NOX-CO emission burner both experimentally and through computational fluid dynamics (CFD) simulations, Energy Fuel 21 (2007) 42–58.

DOI: 10.1021/ef0602473

[18] L.I. Diez, , et al., Numerical investigation of NOX emissions from a tangentially-fired utility boiler under conventional and overfire air operation, Fuel 87 (2008) 1259–1269.

DOI: 10.1016/j.fuel.2007.07.025

[19] H.J. Wang, et al., Measurements on flame temperature and its 3D distribution in a 660 MW arch-fired coal combustion furnace by visible image processing and verification by using an infrared pyrometer, Meas. Sci. Technol., 20 (2009), p.1–12.

DOI: 10.1088/0957-0233/20/11/114006

[20] L. D. Smoot and P. J. Smith, Coal Combustion and Gasification, New York: Plenum Press, (1989).

[21] Q. Y. Fang, et al., Numerical simulation of multi-fuel combustion in a 200 MW tangentially fired utility boiler, Energy and Fuels, Vol. 26, pp.313-323, (2012).

DOI: 10.1021/ef201149p

[22] Choi, C. R., et al., Numerical investigation on the flow, combustion and NOX emission characteristics in a 500MW tangentially fired pulverized-coal boiler. Fuel 2009, 88, 1720–1731.

DOI: 10.1016/j.fuel.2009.04.001

[23] Su, S., et al., Mathematical modeling of nitric oxide destruction by reburning. Energy Fuels 2006, 20, 1434–1443.

DOI: 10.1021/ef060026x

[24] Smoot, L. D.; Smith, P. J. Coal Combustion and Gasification; Plenum Press: New York, (1989).

[25] Fluent, Inc. Fluent 6. 3 User's Guide; Fluent, Inc.: New York, (2006).
