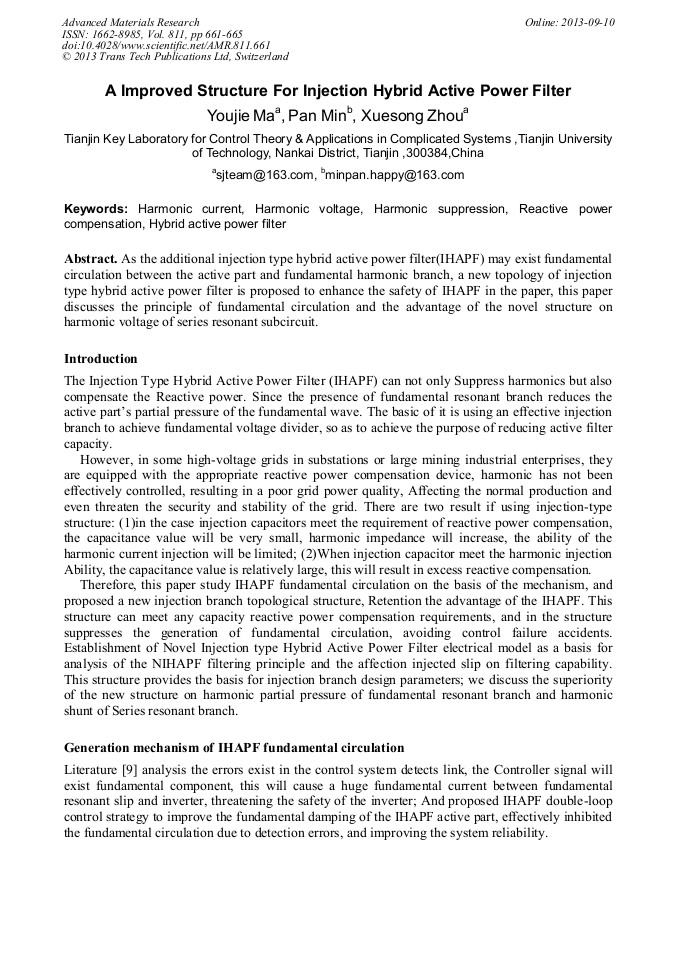

A Improved Structure for Injection Hybrid Active Power Filter

Abstract:

As the additional injection type hybrid active power filter (IHAPF) may exist fundamental circulation between the active part and fundamental harmonic branch, a new topology of injection type hybrid active power filter is proposed to enhance the safety of IHAPF in the paper, this paper discusses the principle of fundamental circulation and the advantage of the novel structure on harmonic voltage of series resonant subcircuit.

• Periodical: Advanced Materials Research (Volume 811)
• Pages: 661-665
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.811.661
• Online since: September 2013
• Authors: You Jie Ma, Pan Min, Xue Song Zhou
• Keywords: Harmonic Current, Harmonic Suppression, Harmonic Voltage, Hybrid Active Power Filter, Reactive Power Compensation

References

[1] IEEE recommended practices and requirements for harmonic control in electrical power system[S]. IEEE, (1993).

[2] Chen Guozhu, Lu Zhengyu, Qian Zhaoming. The general principle of active filter and its application [J]. Proceedings of the CSEE, 2000, 20 (9): 17-21.

[3] Luo An, Fu Qing, Wang Lina, et al . High-capacity hybrid power filter for harmonic suppression and reactive power compensation in the power substation [J]. Proceedings of the CSEE , 2004, 24(9): 115-123.

[4] Tang Zhuoyao, Ren Zhen. Hybrid filter connected in series APF with PF and compensating characteristic analysis [J]. Proceedings of the CSEE, 2000, 20(5): 25-29.

[5] Tang Ci, Luo An, Fan Ruixiang, et al. Problems in application of new injection type hybrid active power filter [J]. Proceedings of the CSEE, 2008, 28(18): 47-53.

[6] Luo An, Zhang Jing, Fu Qing. Development of high-capacity hybrid active power filter[J]. Transactions of China Electro technical Society, 2005, 20(2): 51-55.

[7] Sun Zuo, Wang Nianchun, Xu Weibing. A parallel hybrid active power filter with good cost performance [J]. Proceedings of the CSEE, 2007, 27(36): 79-84.

[8] Sun Xianda, Luo An, Shuai Zhikang, et al. Dual-loop control strategy of hybrid active power filter with injection circuit [J]. Transactions of China Electrotechnical Society, 2009, 24(9): 127-133.

[9] Guo Weifeng, Wu Jian, Xu Dianguo, et al. Hybrid shunt active power filter based on novel sliding mode Control [J]. Proceedings of the CSEE, 2009, 29(27): 29-35.

DOI: 10.1109/iciea.2009.5138741

[10] Tang Xin, Tsang K M, Chan W L. Double closed-loop cascade control for active Power filter[J]. Proceedings of the CSEE, 2008, 28(24): 29-35.

[11] Tu Chunming, Pan Hongbin, Shuai Zhikang, et al. Predictive compensation at different frequency forcurrent phase dalay of resonant impedance typehybrid active filter[J]. Transactions of China Electrotechnical Society, 2008, 23(10): 114-120.

[12] Tang Xin, Luo An, Tu Chunming. Study of new injection type hybrid active power filter [J]. Transactions of China Electrotechnical Society, 2004, 19(11): 50-55, 60.

[13] Yang Jin, Yang Xiangyu, Yu Hui. The simulation of serial hybrid active power filter based on multiplicity of inverter[J]. Transactions of China Electrotechnical Society, 2004, 19(10): 23-26.

[14] Shuai Zhikang, Luo An, Fan Ruixiang, et al. Injectionbranch design of injection type hybrid active power filter[J]. Automation of Electric Power Systems, 2007, 31(5): 1-5.
