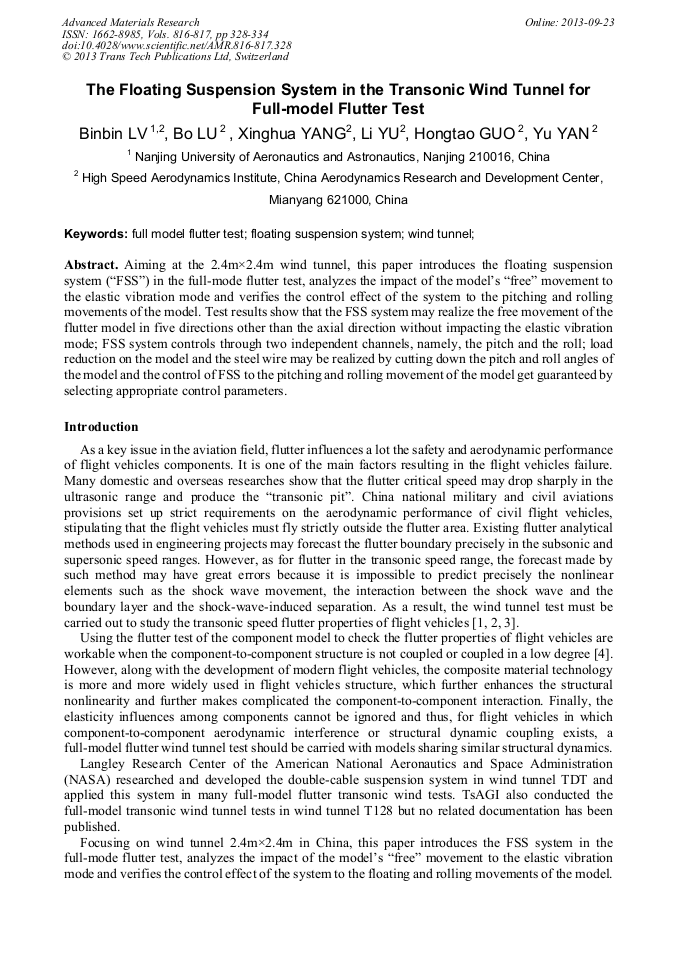

The Floating Suspension System in the Transonic Wind Tunnel for Full-Model Flutter Test

Abstract:

Aiming at the 2.4m×2.4m wind tunnel, this paper introduces the floating suspension system (“FSS”) in the full-mode flutter test, analyzes the impact of the model’s “free” movement to the elastic vibration mode and verifies the control effect of the system to the pitching and rolling movements of the model. Test results show that the FSS system may realize the free movement of the flutter model in five directions other than the axial direction without impacting the elastic vibration mode; FSS system controls through two independent channels, namely, the pitch and the roll; load reduction on the model and the steel wire may be realized by cutting down the pitch and roll angles of the model and the control of FSS to the pitching and rolling movement of the model get guaranteed by selecting appropriate control parameters.

• Periodical: Advanced Materials Research (Volumes 816-817)
• Pages: 328-334
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.816-817.328
• Online since: September 2013
• Authors: Bin Bin Lv, Bo Lu, Xing Hua Yang, Li Yu, Hong Tao Guo, Yu Yan
• Keywords: Floating Suspension System, Full Model Flutter Test, Wind Tunnel

References

[1] Garrick I E, Reed W H. Historical development of aircraft flutter. Journal of Aircraft, 1981, 18 (11): 981994.

[2] Chuck H. Accelerated flutter testing: a possible technique to expedite flutter testing for new Aircraft. AIAA-2004-6822, (2004).

DOI: 10.2514/6.2004-6822

[3] Stanley R C, Jose A R, Nagaraja K S. Flutter study of an advanced composite wing with external Stores. AIAA-1987-880, (1987).

[4] Stanley R C, Thomas E N, Boyd P. Transonic dynamics tunnel aeroelastic testing in support of aircraft development. Journal of Aircraft, 2003, 40 (5): 820-831.

DOI: 10.2514/2.6873

[5] Qian W, Wang B, Zhao T M. Full structure similar transonic model design, manufacture and wind tunnel test. Journal of Vibration Engineering, 2010, 23 (S): 304-308. (in Chinese).
