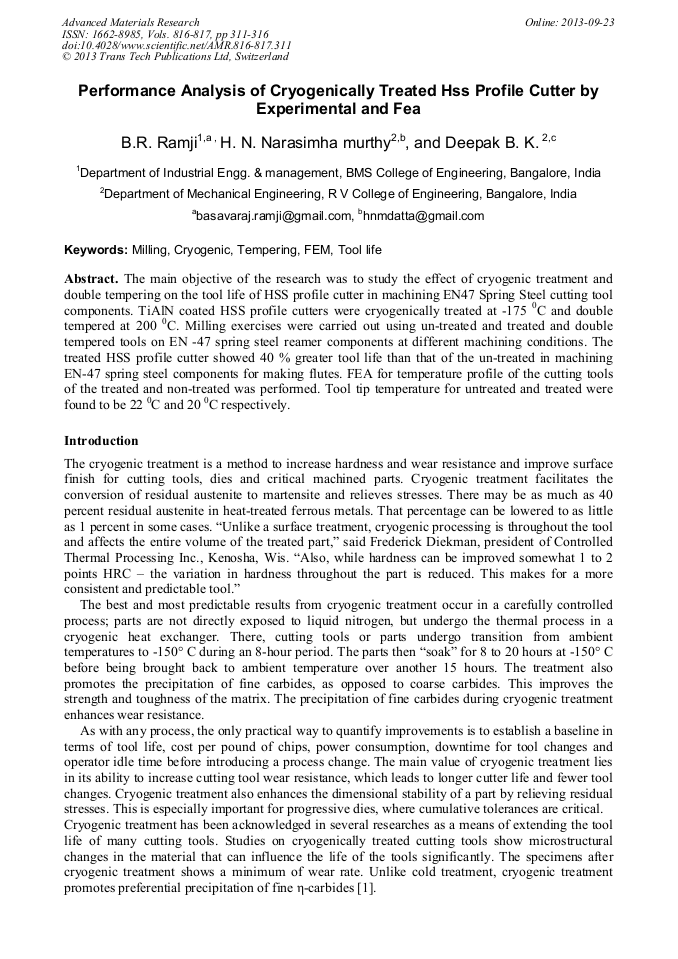

Performance Analysis of Cryogenically Treated HSS Profile Cutter by Experimental and FEA

Abstract:

The main objective of the research was to study the effect of cryogenic treatment and double tempering on the tool life of HSS profile cutter in machining EN47 Spring Steel cutting tool components. TiAlN coated HSS profile cutters were cryogenically treated at-175 °C and double tempered at 200 °C. Milling exercises were carried out using un-treated and treated and double tempered tools on EN-47 spring steel reamer components at different machining conditions. The treated HSS profile cutter showed 40 % greater tool life than that of the un-treated in machining EN-47 spring steel components for making flutes. FEA for temperature profile of the cutting tools of the treated and non-treated was performed. Tool tip temperature for untreated and treated were found to be 22 °C and 20 °C respectively.

• Periodical: Advanced Materials Research (Volumes 816-817)
• Pages: 311-316
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.816-817.311
• Online since: September 2013
• Authors: B.R. Ramji, H.N. Narasimha Murthy, B.K. Deepak
• Keywords: Cryogenic, Finite Element Method (FEM), Milling, Tempering, Tool Life

References

[1] Fenju Meng, Kohsuke Tagashira, Role of Eta-carbide precipitation in the wear resistance improvement of Fe-12-Cr-Mo-V-1. 4-C Tool Steel by cryogenic treatment, ISIJ International Vol. 34 (1994), No. 2, 215-210.

DOI: 10.2355/isijinternational.34.205

[2] C.L. Gogte, Dr. Kumar M. Iyer, Prof. R.K. Paretkar, Correlation between microstructure and wear resistance of high speed steel after deep sub zero treatment, 7th Tooling conference.

[3] Susheel Kalia, Cryogenic Processing: A Study of Materials at Low Temperatures Low Temp Phys (2010) Volume 158: Numbers 5-6, 934–945 DOI10. 1007/s10909-009-0058-x.

DOI: 10.1007/s10909-009-0058-x

[4] A. Y. L. Yong. K. H. W. Seah. M. Rahman, Performance of cryogenically treated tungsten carbide tools in milling operations, Int J Adv Manuf Technol (2007) 32: 638–643.

DOI: 10.1007/s00170-005-0379-0

[5] S. Chatterjee, Performance characteristics of cryogenically treated high speed drills, International Journal of Production Research, Vol 30, No. 4, 773-786, (1992).

DOI: 10.1080/00207543.1992.9728455

[6] V. Firouzdor, E. Nejati and F. Khomamizadeh, Effect of deep cryogenic treatment on wear resistance and tool life of M2 HSS drill, Vol. 206, 467-472, (2008).

DOI: 10.1016/j.jmatprotec.2007.12.072

[7] M.C. Shaw, Metal Cutting Principles, Oxford University Press, Oxford (1986).

[8] D.P. Adler, W.S. Hii, D.J. Michalek, J.W. Sutherland, Examining the role of cutting fluids in machining and efforts to address associated environmental/health concerns, Machining Science and Technology 10, 23–58. (2006).

DOI: 10.1080/10910340500534282

[9] W.A. Carter, Metal Machining, Part VI, Cutting Fluids, Machinery Lloyd, Overseas Edition, (1956).

[10] Shane Y. Hong, and Y. Ding Micro-temperature manipulation in cryogenic machining of low carbon steel Journal of material processing technology Vol 116, Issue 1, 22-30 (2001).

DOI: 10.1016/s0924-0136(01)00836-6
