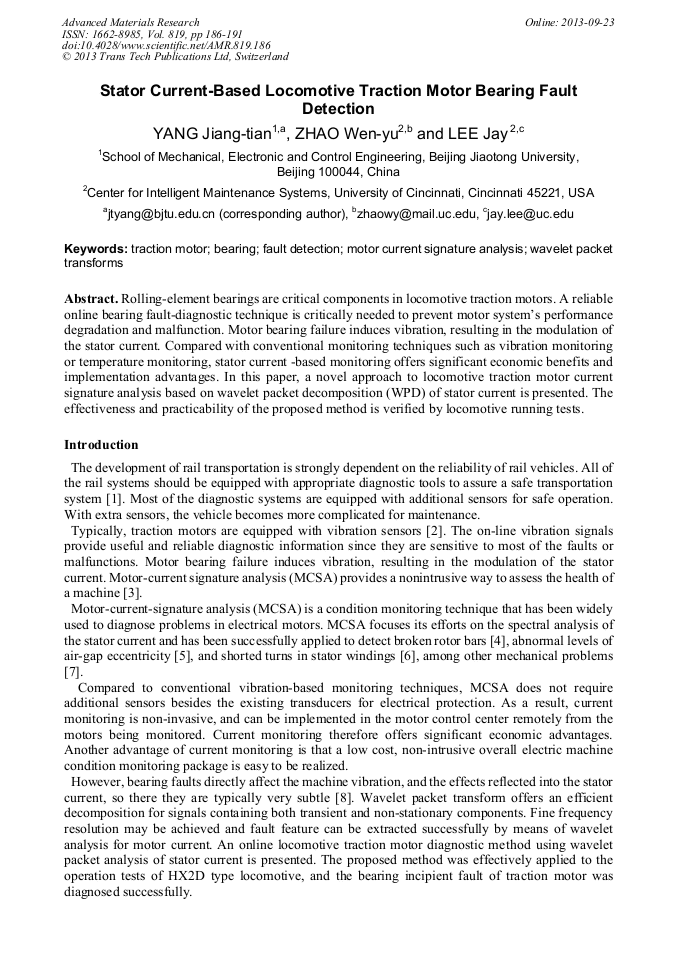

Stator Current-Based Locomotive Traction Motor Bearing Fault Detection

Abstract:

Rolling-element bearings are critical components in locomotive traction motors. A reliable online bearing fault-diagnostic technique is critically needed to prevent motor systems performance degradation and malfunction. Motor bearing failure induces vibration, resulting in the modulation of the stator current. Compared with conventional monitoring techniques such as vibration monitoring or temperature monitoring, stator current-based monitoring offers significant economic benefits and implementation advantages. In this paper, a novel approach to locomotive traction motor current signature analysis based on wavelet packet decomposition (WPD) of stator current is presented. The effectiveness and practicability of the proposed method is verified by locomotive running tests.

• Periodical: Advanced Materials Research (Volume 819)
• Pages: 186-191
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.819.186
• Online since: September 2013
• Authors: Jiang Tian Yang, Wen Yu Zhao, Jay Lee
• Keywords: Bearing, Fault Detection, Motor Current Signature Analysis, Traction Motor, Wavelet Packet Transforms

References

[1] H. Henao, S. Kia Hedayati, G. A Capolino, Torsional-vibration assessment and gear fault diagnosis in railway traction system, IEEE Trans on Industrial Electronics. Vol. 58, No. 5, (2011), pp.1707-1717.

DOI: 10.1109/tie.2011.2106094

[2] S. Nandi, H A. Toliyat, Xiaodong Li, Condition monitoring and fault diagnosis of electrical motors-a review, IEEE Trans on Energy Conversion. Vol. 20, No. 4, (2005), pp.719-729.

DOI: 10.1109/tec.2005.847955

[3] J. H. Jung, J. Lee, B. H. Kwon, Online diagnosis of induction motors using MCSA, IEEE Trans on Industrial Electronics, Vol. 53, No. 6, (2006), p.1842–1852.

DOI: 10.1109/tie.2006.885131

[4] J. Milimonfared, H. M. Kelk, S. Nandi, A novel approach for broken-rotor-bar detection in cage induction motors, IEEE Trans On Industry Applications, Vol. 35, No. 5, (1999), p.1000–1006.

DOI: 10.1109/28.793359

[5] S. Nandi, T. C. Ilamparithi, Sangbin Lee, Detection of eccentricity faults in induction machines based on nameplate parameters. IEEE Trans on Industrial Electronics, Vol. 58, No. 5, (2011), p.1673–1683.

DOI: 10.1109/tie.2010.2055772

[6] S.M.A. Cruz, A.J.M. Cardoso, Diagnosis of stator inter-turn short circuits in DTC induction motor drives, IEEE Trans on Industry Applications, Vol. 40, No. 5, (2004), pp.1349-1360.

DOI: 10.1109/tia.2004.834012

[7] C. C. Lau Enzo, H. W. Ngan, Detection of motor bearing outer raceway defect by wavelet packet transformed motor current signature analysis, IEEE Trans on Instrumentation and Measurement, Vol. 59, No. 10, (2010), p.2683–2690.

DOI: 10.1109/tim.2010.2045927

[8] Fabio Immovilli, Alberto Bellini, Riccardo Rubini, Diagnosis of bearing faults in induction machines by vibration or current signals: a critical comparison, IEEE Trans on Industrial Applications, Vol. 46, No. 4, (2010), p.1350–1359.

DOI: 10.1109/tia.2010.2049623

[9] R. R. Schoen, T. G. Habetler, F. Kamran, Motor bearing damage detection using stator current monitoring, IEEE Trans on Industrial Applications, Vol. 31, No. 6, (1995), p.1274–1279.

DOI: 10.1109/28.475697

[10] Martin Blodt, Pierre Granjon, Bertrand Raison, Models for bearing damage detection in induction motors using stator current monitoring, IEEE Trans on Industrial Electronics, Vol. 45, No. 4, (2008), p.1813–1822.

DOI: 10.1109/tie.2008.917108

[11] Fabio Immovilli, Marco Cocconcelli, Alberto Bellini, Detection of generalized-roughness bearing fault by spectral-kurtosis energy of vibration or current signals, IEEE Trans on Industrial Electronics, Vol. 56, No. 11, (2009), p.4710–4717.

DOI: 10.1109/tie.2009.2025288

[12] J. O. Chapa, R. M. Rao, Algorithms for designing wavelets to match a specified signal, IEEE Trans on Signal Processing, Vol. 48, No. 12, (2000), p.3395–3406.

DOI: 10.1109/78.887001
