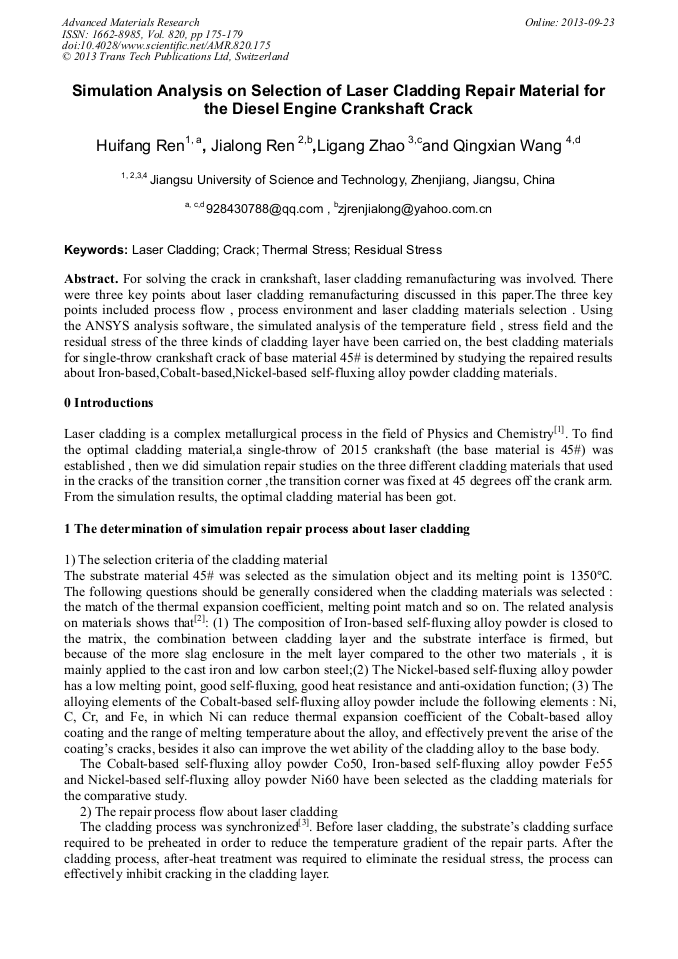

Simulation Analysis on Selection of Laser Cladding Repair Material for the Diesel Engine Crankshaft Crack

Abstract:

For solving the crack in crankshaft, laser cladding remanufacturing was involved. There were three key points about laser cladding remanufacturing discussed in this paper.The three key points included process flow , process environment and laser cladding materials selection . Using the ANSYS analysis software, the simulated analysis of the temperature field , stress field and the residual stress of the three kinds of cladding layer have been carried on, the best cladding materials for single-throw crankshaft crack of base material 45# is determined by studying the repaired results about Iron-based,Cobalt-based,Nickel-based self-fluxing alloy powder cladding materials.

• Periodical: Advanced Materials Research (Volume 820)
• Pages: 175-179
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.820.175
• Online since: September 2013
• Authors: Hui Fang Ren, Jia Long Ren, Li Gang Zhao, Qing Xian Wang
• Keywords: Crack, Laser Cladding, Residual Stress, Thermal Stress

References

[1] Qinglong Yuan, Xudong Feng Xudong, Jingjing Cao, etc. Progress in Laser Cladding [J]. Materials Science, 2010, 24 (2) : 112-116. In Chinese.

DOI: 10.3788/cjl20103708.2116

[2] Dong S Y, Xu B S, Wang Z J, et al. Laser remanufacturing technology and its applications[C]. Beijing: Proceedings of Lasers in Material Processing and Manufacturing III, 2007: 379-384.

[3] Jianbo Lei . Bath temperature field research in the laser remanufacturing based on CCD[D]. Tianjin: Tianjin University of Technology, 2007. In Chinese.

[4] Huishan Li. The light and powder flow interaction mechanism and experimental study in laser remanufacturing[D]. Tianjin: Tianjin University of Technology, 2004. In Chinese.

[5] Yong Zhao, Anguo Huang , Xuenan Lin , etc. laser cladding process simulation [J]. Welding, 2007, 37 (3) : 37-40. In Chinese.

[6] Huishan Li , Chen Yang , Yunshan Wang , etc. The molten pool temperature field numerical simulation in laser remanufacturing process[J]. Journal of Tianjin university of technology, 2003, 22 (5) : 9-12. In Chinese.

[7] Zhaohui Zhang. ANSYS thermal analysis tutorial and examples analysis [M]. Beijing: China railway publishing house, 2007. In Chinese.
