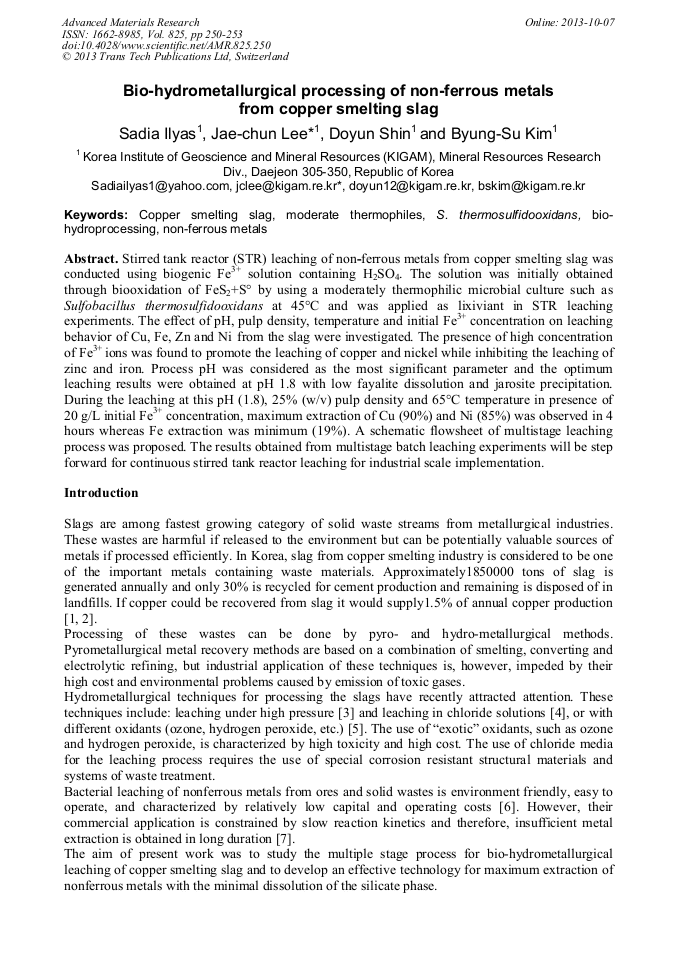

Bio-Hydrometallurgical Processing of Non-Ferrous Metals from Copper Smelting Slag

Abstract:

Stirred tank reactor (STR) leaching of non-ferrous metals from copper smelting slag was conducted using biogenic Fe³⁺ solution containing H₂SO₄. The solution was initially obtained through biooxidation of FeS₂+S° by using a moderately thermophilic microbial culture such as Sulfobacillus thermosulfidooxidans at 45°C and was applied as lixiviant in STR leaching experiments. The effect of pH, pulp density, temperature and initial Fe³⁺ concentration on leaching behavior of Cu, Fe, Zn and Ni from the slag were investigated. The presence of high concentration of Fe³⁺ ions was found to promote the leaching of copper and nickel while inhibiting the leaching of zinc and iron. Process pH was considered as the most significant parameter and the optimum leaching results were obtained at pH 1.8 with low fayalite dissolution and jarosite precipitation. During the leaching at this pH (1.8), 25% (w/v) pulp density and 65°C temperature in presence of 20 g/L initial Fe³⁺ concentration, maximum extraction of Cu (90%) and Ni (85%) was observed in 4 hours whereas Fe extraction was minimum (19%). A schematic flowsheet of multistage leaching process was proposed. The result obtained from multistage batch leaching experiments will be step forward for continuous stirred tank reactor leaching for industrial scale implementation.

• Periodical: Advanced Materials Research (Volume 825)
• Pages: 250-253
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.825.250
• Online since: October 2013
• Authors: Sadia Ilyas, Jae Chun Lee, Do Yun Shin, Byung Su Kim
• Keywords: Bio-Hydroprocessing, Copper Smelting Slag, Moderate Thermophiles, Non-Ferrous Metals, S. thermosulfidooxidans

References

[1] K. Bosecker, Microbial leaching in environmental clean-up programmes, Hydrometallurgy. 59 (2001) 245–248.

DOI: 10.1016/s0304-386x(00)00163-8

[2] J. -c. Lee, B. D. Pandey, Bio-processing of solid wastes and secondary resources for metal extraction, Waste Manag. 32 (2012) 3–18.

DOI: 10.1016/j.wasman.2011.08.010

[3] D. Dreisinger, Copper leaching from primary sulfides: Options for biological and chemical extraction of copper, Hydrometallurgy. 83 (2006) 10–20.

DOI: 10.1016/j.hydromet.2006.03.032

[4] A.N. Banza, E. Gock, K. Kongolo, Base metals recovery from copper smelter slag by oxidizing leaching and solvent extraction, Hydrometallurgy. 67(2002) 63–69.

DOI: 10.1016/s0304-386x(02)00138-x

[5] H.S. Altundogan, M. Boyrazli, F. Tumen, A study on the sulfuric acid leaching of copper converter slag in the presence of dichromate, Miner. Eng. 17(2004) 465–467.

DOI: 10.1016/j.mineng.2003.11.002

[6] J. Petersen, J.G. Dixon, M. Timmins, R. Ruitenberg, Batch reactor studies of the leaching of a pyrite/chalcopyrite concentrate using thermophilic bacteria. In: Ciminelli, V.S.T. Garcia Jr., O. (Eds. ), Biohydrometallurgy: Fundamentals, Technology and Sustainable Development-Part A. Elsevier, Amsterdam, 2001, p.526.

[7] S. Ilyas , M. A. Anwar, S.B. Niazi, M.A. Ghauri, Bioleaching of metals from electronic scrap by moderately thermophilic acidophilic bacteria, Hydrometallurgy. 88 (2007) 180–188.

DOI: 10.1016/j.hydromet.2007.04.007
