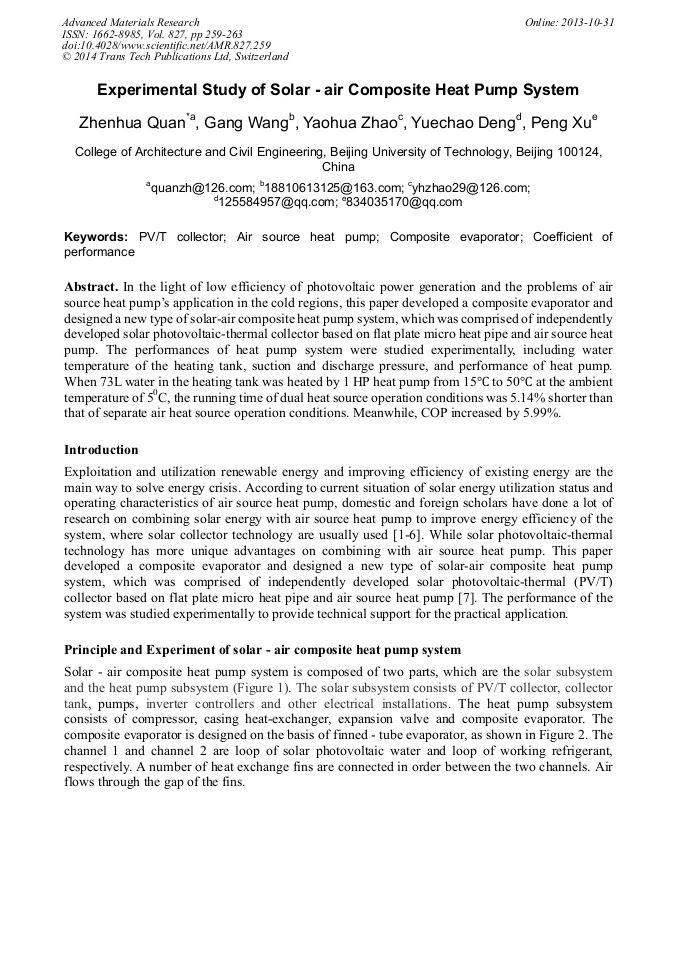

Experimental Study of Solar-Air Composite Heat Pump System

Abstract:

In the light of low efficiency of photovoltaic power generation and the problems of air source heat pumps application in the cold regions, this paper developed a composite evaporator and designed a new type of solar-air composite heat pump system, which was comprised of independently developed solar photovoltaic-thermal collector based on flat plate micro heat pipe and air source heat pump. The performances of heat pump system were studied experimentally, including water temperature of the heating tank, suction and discharge pressure, and performance of heat pump. When 73L water in the heating tank was heated by 1 HP heat pump from 15°C to 50°C at the ambient temperature of 5°C, the running time of dual heat source operation conditions was 5.14% shorter than that of separate air heat source operation conditions. Meanwhile, COP increased by 5.99%.

• Periodical: Advanced Materials Research (Volume 827)
• Pages: 259-263
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.827.259
• Online since: October 2013
• Authors: Zhen Hua Quan, Gang Wang, Yao Hua Zhao, Yue Chao Deng, Peng Xu
• Keywords: Air Source Heat Pump, Coefficient of Performance, Composite Evaporator, PV/T Collector

References

[1] Odeh S, Nijmeh S, Akash B. Performance evaluation of solar-assisted double-tube evaporator heat pump system[J]. International Communications in Heat and Mass Transfer. 2004, 31(2): 191-201.

DOI: 10.1016/s0735-1933(03)00224-0

[2] Liu Y，Zhou G. H，Li A. G，Zhang C. Performance research of solar assistant air source heat pump in low temperature condition [J]. Cryogenics and Superconductivity. 2009, 37(10): 73-75.

[3] Zhong H，Li Z. M，Luo H. L，Tie Y. Experimental Investigation of A Solar Water Heater in Conjunction with Air Source Heat Pump [J]. CONSTRUCTION CONSERVES ENERGY. 2011(3): 36-39.

[4] Liang C. H，Zhang X. S，Zhu X, Li X.W. Performance analysis of heat pump based on a new solar air-source heat pump heating system [J]. Journal of Southeast University. 2010(02): 227-231.

[5] Luo H. L，Tie Y，Li M，Zhong H. Thermal Performance Study on a Solar Energy Water Heating System in Conjunction with Air-source Heat Pump [J]. BUILDING SCIENCE. 2009(02): 52-54.

[6] Zhang H. J Study on solar energy/air-source heat pump compound system [J]. GUANGXI JOURNAL OF LIGHT INDUSTRY. 2011(05): 81-82.

[7] Zhao Y. H，Wang H. Y，Diao Y. H，Wang X. Y, Deng Y.C. Heat transfer characteristics of flat micro-heatpipe array [J]. Journal of Chemical Industry and Engineering. 2011(02): 336-343.

[8] Bakirci K, Ozyurt O, Comakli K, et al. Energy analysis of a solar-ground source heat pump system with vertical closed-loop for heating applications[J]. Energy. 2011, 36(5): 3224-3232.

DOI: 10.1016/j.energy.2011.03.011
