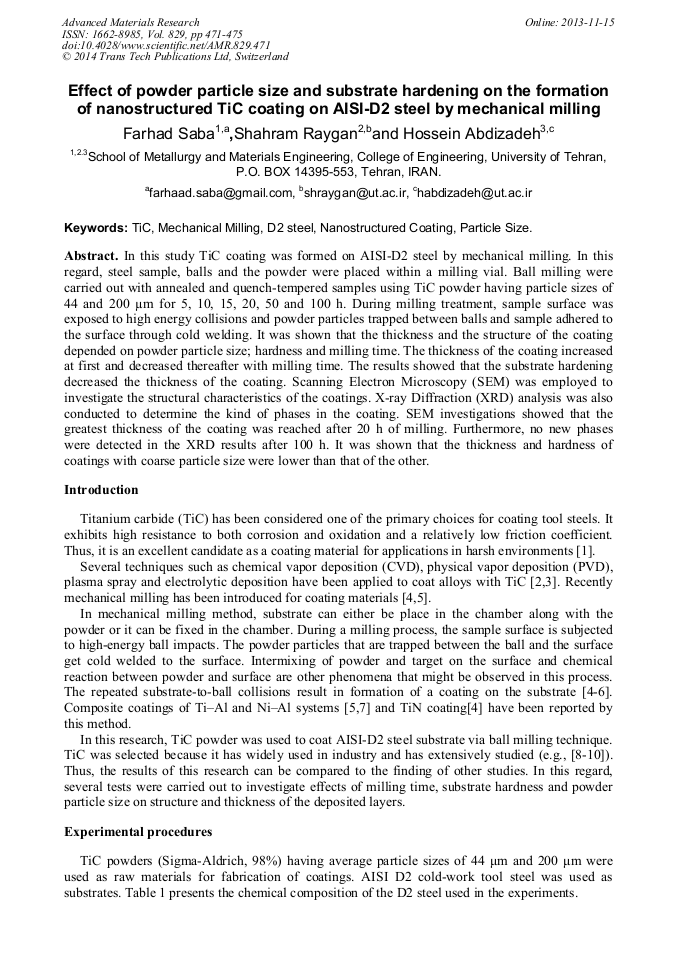

Effect of Powder Particle Size and Substrate Hardening on the Formation of Nanostructured TiC Coating on AISI-D2 Steel by Mechanical Milling

Abstract:

In this study TiC coating was formed on AISI-D2 steel by mechanical milling. In this regard, steel sample, balls and the powder were placed within a milling vial. Ball milling were carried out with annealed and quench-tempered samples using TiC powder having particle sizes of 44 and 200 μm for 5, 10, 15, 20, 50 and 100 h. During milling treatment, sample surface was exposed to high energy collisions and powder particles trapped between balls and sample adhered to the surface through cold welding. It was shown that the thickness and the structure of the coating depended on powder particle size; hardness and milling time. The thickness of the coating increased at first and decreased thereafter with milling time. The results showed that the substrate hardening decreased the thickness of the coating. Scanning Electron Microscopy (SEM) was employed to investigate the structural characteristics of the coatings. X-ray Diffraction (XRD) analysis was also conducted to determine the kind of phases in the coating. SEM investigations showed that the greatest thickness of the coating was reached after 20 h of milling. Furthermore, no new phases were detected in the XRD results after 100 h. It was shown that the thickness and hardness of coatings with coarse particle size were lower than that of the other. It was revealed that lattice parameter of TiC coating increased with milling time.

• Periodical: Advanced Materials Research (Volume 829)
• Pages: 471-475
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.829.471
• Online since: November 2013
• Authors: Farhad Saba*, Shahram Raygan, Hossein Abdizadeh
• Keywords: D2 Steel, Mechanical Milling, Nanostructured Coating, Particle Size, TiC

References

[1] Y. Luo, S. Ge, Z. Jin, J. Fisher, Formation of titanium carbide coating with micro-porous structure, Appl. Phys. A: Mater. Sci. Process. 98 (2010) 765–768.

DOI: 10.1007/s00339-009-5495-5

[2] S. Kinkel, G.N. Angelopoulos, W. Dahl, Formation of TiC coatings on steels by a fluidized bed chemical vapor deposition process, Surf. Coat. Technol. 64 (1994)119–125.

DOI: 10.1016/s0257-8972(09)90012-3

[3] X.M. Li, Y. Han, Mechanical Properties of Ti (C0. 7N0. 3) Film Produced by Plasma Electrolytic Carbonitriding of Ti6Al4V Alloy, Appl. Surf. Sci. 254 (2008) 6350–6357.

DOI: 10.1016/j.apsusc.2008.03.172

[4] S. Romankov, S.V. Komarov, E. Vdovichenko, Y. Hayasaka, N. Hayashi, S.D. Kaloshkin, E. Kasai, Fabrication of TiN coatings using mechanical milling techniques, Int. J. Refract. Met. Hard Mater. 27 (2009) 492–497.

DOI: 10.1016/j.ijrmhm.2008.10.005

[5] S. Romankov, S.D. Kaloshkin, Y. Hayasaka, Zh. Sagdoldina, S.V. Komarov, N. Hayashi, E. Kasai, Structural evolution of the Ti–Al coatings produced by mechanical alloying technique, J. Alloys Compd. 483 (2009) 386–388.

DOI: 10.1016/j.jallcom.2008.07.199

[6] S. Romankov, Y. Hayasaka, G. Kalikova, S.V. Komarov, N. Hayashi, E. Kasai, TEM study of TiN coatings fabricated by mechanical milling using vibration technique, Surf. Coat. Technol. 203 (2009) 1879–1884.

DOI: 10.1016/j.surfcoat.2009.01.011

[7] R. Pouriamanesh, J. Vahdati-Khaki, Q. Mohammadi, Coating of Al substrate by metallic Ni through mechanical alloying, J. Alloys Compd. 488 (2009) 430–436.

DOI: 10.1016/j.jallcom.2009.08.150

[8] L.R. Katipelli, A. Agarwal, N.B. Dahotre, Interfacial strength of laser surface engineered TiC coating on 6061 Al using four-point bend test, Mater. Sci. Eng., A 289(2000) 34–40.

DOI: 10.1016/s0921-5093(00)00920-5

[9] H. Liua, J. Huanga, Reactive flame spraying of TiC–Fe cermet coating using asphalt as a carbonaceous precursor, Surf. Coat. Technol. 200(2006) 5328–5333.

DOI: 10.1016/j.surfcoat.2005.06.016

[10] J. Tanga, L. Fenga, J.S. Zabinski, The effects of metal interlayer insertion on the friction, wear and adhesion of TiC coatings, Surf. Coat. Technol. 99 (1998) 242–247.

DOI: 10.1016/s0257-8972(97)00570-7

[11] F. Saba, S. Raygan, H. Abdizadeh, A. Dolatmoradi, Preparing TiC coating on AISI D2 steel using mechanical milling technique, Powder Technol. 246 (2013) 229–234.

DOI: 10.1016/j.powtec.2013.05.031

[12] B. Podgornik, J. Vižintin, O. Wänstrand, M. Larsson, S. Hogmark, H. Ronkainen, K. Holmberg, Tribological properties of plasma nitrided and hard coated AISI 4140 steel, Wear 249 (2001) 254–259.

DOI: 10.1016/s0043-1648(01)00564-6

[13] C. Suryanarayana, Mechanical alloying and milling, Prog. Mater Sci. 46 (2001) 1–184.

[14] G.K. Williamson, W.H. Hall, X-ray line broadening from field Aluminium and Wolfram, Acta Metall. 1 (1953) 22–31.

DOI: 10.1016/0001-6160(53)90006-6
