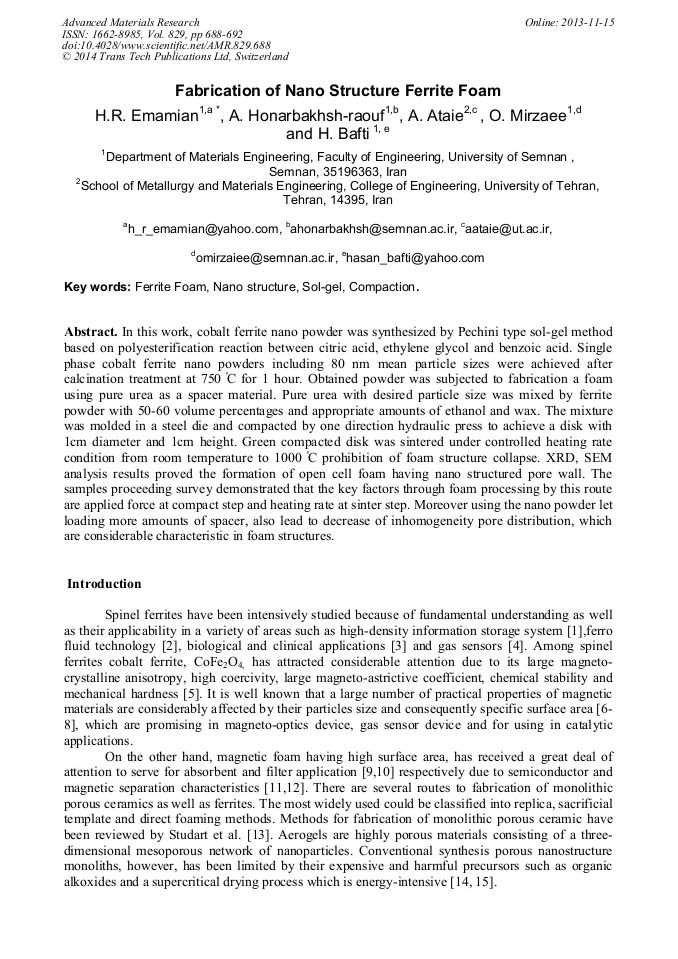

Fabrication of Nanostructure Ferrite Foam

Abstract:

In this work, cobalt ferrite nanopowder was synthesized by Pechini type sol-gel method based on polyesterification reaction between citric acid, ethylene glycol and benzoic acid. Single phase cobalt ferrite nanopowders including 80 nm mean particle sizes were achieved after calcination treatment at 750 ^ͦC for 1 hour. Obtained powder was subjected to fabrication a foam using pure urea as a spacer material. Pure urea with desired particle size was mixed by ferrite powder with 50-60 volume percentages and appropriate amounts of ethanol and wax. The mixture was molded in a steel die and compacted by one direction hydraulic press to achieve a disk with 1cm diameter and 1cm height. Green compacted disk was sintered under controlled heating rate condition from room temperature to 1000 ^ͦC prohibition of foam structure collapse. XRD, SEM analysis results proved the formation of open cell foam having nanostructured pore wall. The samples proceeding survey demonstrated that the key factors through foam processing by this route are applied force at compact step and heating rate at sinter step. Moreover using the nanopowder let loading more amounts of spacer, also lead to decrease of inhomogeneity pore distribution, which are considerable characteristic in foam structures.

• Periodical: Advanced Materials Research (Volume 829)
• Pages: 688-692
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.829.688
• Online since: November 2013
• Authors: Hamid Reza Emamian*, Abbas Honarbakhsh-Raouf, Abolghasem Ataie, Omid Mirzaee, Hasan Bafti
• Keywords: Compaction, Ferrite Foam, Nanostructure, Sol-Gel

References

[1] Wu. Te-Ho, H.W. Huang, Wu. Te-Ho, Evolution of magnetization reversal on patterned magnetic elements, IEEE Trans. Magn. 36 (2000) 2978 - 2980.

DOI: 10.1109/20.908646

[2] K. Raj, B. R. Casciari, Advances in ferrofluid technology, J. Mag. Mag. Mat. 149 (1995) 174-180.

[3] S. Kuckelhaus, V.A.P. Garcia, L.M. Lacava, R.B. Azevedo, Biological investigation of a citrate-coated cobalt ferrite based magnetic fluid, J. Appl. Phys. 93 (2003) 6707 – 6708.

DOI: 10.1063/1.1558665

[4] C.V. Gopal, S.V. Manorama, V.J. Rao, Preparation and characterization of ferrites as gas sensor materials, J. Mater. Sci. Lett. 19 (2000) 775-778.

[5] V. Pallai, and D.O. Shah, Synthesis of high-coercivity cobalt ferrite particles using water-in-oil microemulsions, J. Mag. Mag. Mat. 163 (1996) 243-248.

DOI: 10.1016/s0304-8853(96)00280-6

[6] Chao Liu and Z. John Zhang, Size-dependent superparamagnetic properties of Mn spinel ferrite nanoparticles synthesized from reverse micelles, Chem. Mater. 13 (2001) 2092–(2096).

DOI: 10.1021/cm0009470

[7] B. Bonacchi, D., Innocenti, Cobalt ferrite nanoparticles: The control of the particle size and surface state and their effects on magnetic properties. J. Mag. Mag. Mat. 311 (2007) 10-16.

DOI: 10.1016/j.jmmm.2006.11.157

[8] V.K. Sankaranarayanan, Q.A. Pankhurst, D.P.E. Dickson, C.E. Johnson, An investigation of particle size effects in ultrafine barium ferrite, J. Mag. Mag. Mat. 125 (1993) 199-208.

DOI: 10.1016/0304-8853(93)90838-s

[9] V. Žežulka, P. Straka, P. Mucha, A magnetic filter with permanent magnets on the basis of rare earths, J. Mag. Mag. Mat. 268 (2004) 219-226.

DOI: 10.1016/s0304-8853(03)00502-x

[10] F. G. de Souza, J. A. Marins, A Magnetic Composite for Cleaning of Oil Spills on Water, Macromol. Mater. Eng. 295 (2010) 942–948.

DOI: 10.1002/mame.201000090

[11] B. Ashok, J. Tukaram, and P. N. Vasambekar, Ferrite Gas Sensors, J. IEEE SENS. 11 (2011) 849-861.

[12] Magnetic separation using superconducting magnets, T. Oharaa, H. Kumakuraa, H. Wadaa, Physica C. 357 ( 2001) 1272–1280.

[13] R. Andre´, w. Studart, T. Gonzenbach, E. Tervoort, and L. J. Gauckler, Processing Routes to Macroporous Ceramics: A Review, J. Am. Ceram. Soc. 89 (2006) 1771–1789.

DOI: 10.1111/j.1551-2916.2006.01044.x

[14] A.M. Shobe, S. K. Gill, L. J. Hope-Weeks, Monolithic CuO–NiO aerogels via an epoxide addition route, J. Non-Cryst. Solid. 356 (2010) 1337–1343.

DOI: 10.1016/j.jnoncrysol.2010.03.002

[15] L. Gan, Z. Xu, Y. Feng and L. Chen, Synthesis of Alumina Aerogels by Ambient Drying Method and Control of Their Structures, J. Porous Mater. 12 (2005) 317-321.

DOI: 10.1007/s10934-005-3130-1

[16] M.P. Pechini, Method of preparing lead and alkaline earth titanates and niobates and coating method using the same to form a capacitor, US Patent 3330697, (1967).

[17] B.D. Cullity, Introduction to Magnetic Materials, Addison-Wesley, Reading, MA, (1972).
