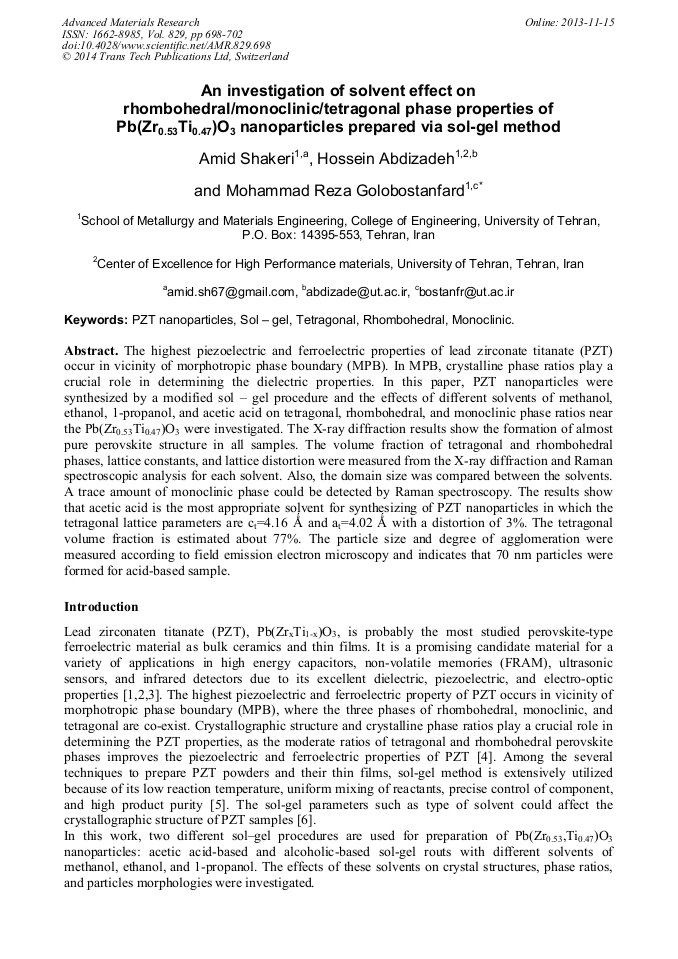

An Investigation of Solvent Effect on Rhombohedral/Monoclinic/Tetragonal Phase Properties of Pb(Zr_0.53Ti_0.47)O₃ Nanoparticles Prepared via Sol-Gel Method

Abstract:

The highest piezoelectric and ferroelectric properties of lead zirconate titanate (PZT) occur in vicinity of morphotropic phase boundary (MPB). In MPB, crystalline phase ratios play a crucial role in determining the dielectric properties. In this paper, PZT nanoparticles were synthesized by a modified sol gel procedure and the effects of different solvents of methanol, ethanol, 1-propanol, and acetic acid on tetragonal, rhombohedral, and monoclinic phase ratios near the Pb (Zr_0.53Ti_0.47)O₃ were investigated. The X-ray diffraction results show the formation of almost pure perovskite structure in all samples. The volume fraction of tetragonal and rhombohedral phases, lattice constants, and lattice distortion were measured from the X-ray diffraction and Raman spectroscopic analysis for each solvent. Also, the domain size was compared between the solvents. A trace amount of monoclinic phase could be detected by Raman spectroscopy. The results show that acetic acid is the most appropriate solvent for synthesizing of PZT nanoparticles in which the tetragonal lattice parameters are c_t=4.16 Ǻ and a_t=4.02 Ǻ with a distortion of 3%. The tetragonal volume fraction is estimated about 77%. The particle size and degree of agglomeration were measured according to field emission electron microscopy and indicates that 70 nm particles were formed for acid-based sample.

You might also be interested in these eBooks

Ultrafine Grained and Nano-Structured Materials IV

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 829)

Pages:

698-702

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.829.698

Citation:

Cite this paper

Online since:

November 2013

Authors:

Amid Shakeri, Hossein Abdizadeh, Mohammad Reza Golobostanfard*

Keywords:

Monoclinic, PZT Nanoparticles, Rhombohedral, Sol Gel, Tetragonal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] G. L. Smith, J. S. Pulskamp, L. M. Sanchez, D. M. Potrepka, R. M. Proie, T. G. Ivanov, R. Q. Rudy, W. D. Nothwang, S. S. Bedair, C. D. Meyer, R. G. Polcawich, PZT-Based Piezoelectric MEMS Technology, J. Am. Ceram. Soc. 95 (2012) 1777–1792.

DOI: 10.1111/j.1551-2916.2012.05155.x

Google Scholar

[2] P. B. Nguyen, S. B. Choi, Compensator design for hysteresis of a stacked PZT actuator using a congruency-based hysteresis model, Smart Mater. Struct. 21 (2012) 015009.

DOI: 10.1088/0964-1726/21/1/015009

Google Scholar

[3] H. Tang, Y. Lin, H. A. Sodano, Enhanced energy storage in nanocomposite capacitors through aligned PZT nanowires by uniaxial strain assembly, Adv. Energy Mater. 2 (2012) 469-476.

DOI: 10.1002/aenm.201100543

Google Scholar

[4] W. Heywang, K. Lubitz, W. Wersing, Piezoelectricity: evolution and future of a technology, Springer, Berlin, (2008).

DOI: 10.1007/978-3-540-68683-5

Google Scholar

[5] Z. D. Qing, W. S. Jun, S. H. Shan, W. X. Li, C. M. Sheng, Synthesis and mechanism research of an ethylene glycol-based sol-gel method for preparing PZT nanopowders, J. Sol- Gel Sci. Techn. 41 (2007) 157–161.

DOI: 10.1007/s10971-006-0521-y

Google Scholar

[6] A. Wu, I. M. M. Salvado, P. M. Vilarinho, J. L. Baptista, Processing and seeding effects on crystallization of PZT thin films from sol-gel method, J. Eur. Ceram. Soc. 17 (1997) 1443-1452.

DOI: 10.1016/s0955-2219(97)00027-7

Google Scholar

[7] A. Shakeri, H. Abdizadeh, M. R. Golobostanfard, Effects of calcination parameters on the microstructure and morphology of PZT nanoparticles prepared by modified sol–gel method", Adv. Mat. Res. 576 (2012) 326-329.

DOI: 10.4028/www.scientific.net/amr.576.326

Google Scholar

[8] C. J. Brinker, G. W. Scherer, Sol-gel science: the physics and chemistry of sol-gel processing", Academic Press, San Diego, (1990).

Google Scholar

[9] W. Yu, Study of PZT thin films coated on metallic substrates using sol-gel method, PhD. Thesis, Auburn University, Alabama, (1999).

Google Scholar

[10] A. G. S. Filho, K. C. V. Lima, A. P. Ayala, I. Guedes, P. T. C. Freire, F. E. A. Melo, J. M. Filho, E. B. Araujo, J. A. Eiras, Raman scattering study of the PbZr1-xTixO3 system: Rhombohedral-monoclinic-tetragonal phase transitions, Phys. Rev. B, 66 (2002).

Google Scholar

[11] B. Noheda, D. E. Cox, G. Shirane, R. Guo, B. Jones, and L. E. Cross, Stability of the monoclinic phase in the ferroelectric perovskite PbZr1-xTixO3, Phys. Rev. B, 63 (2000) 014103.

Google Scholar
