Preparation and Characterizations of Nano-Hybrid TiO₂/ZnO

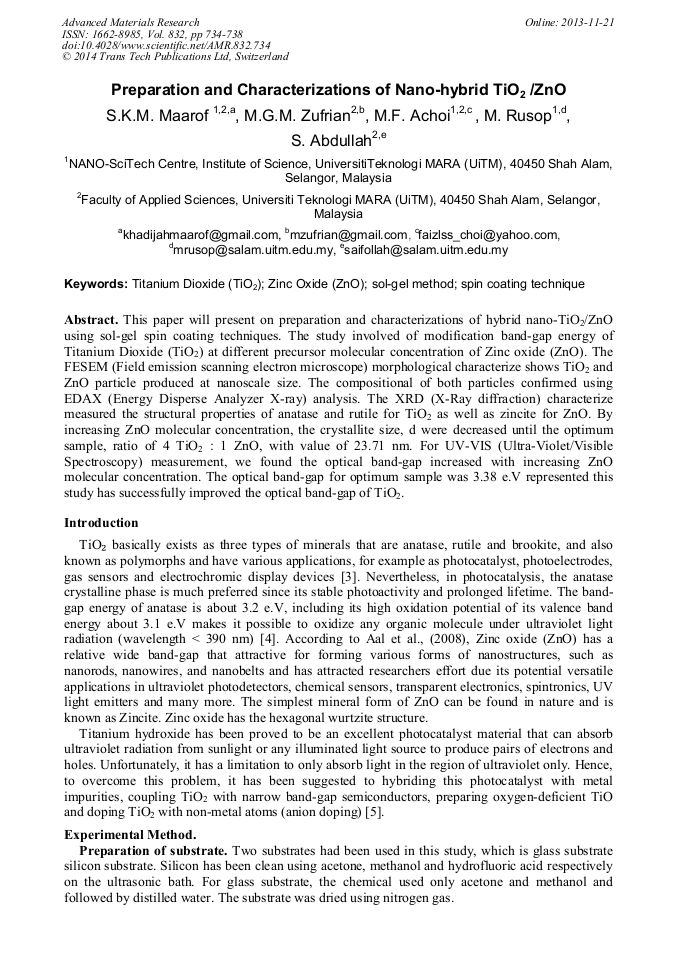

Abstract:

This paper will present on preparation and characterizations of hybrid nanoTiO₂/ZnO using sol-gel spin coating techniques. The study involved of modification band-gap energy of Titanium Dioxide (TiO₂) at different precursor molecular concentration of Zinc oxide (ZnO). The FESEM (Field emission scanning electron microscope) morphological characterize shows TiO₂ and ZnO particle produced at nanoscale size. The compositional of both particles confirmed using EDAX (Energy Disperse Analyzer X-ray) analysis. The XRD (X-Ray diffraction) characterize measured the structural properties of anatase and rutile for TiO₂ as well as zincite for ZnO. By increasing ZnO molecular concentration, the crystallite size, d were decreased until the optimum sample, ratio of 4 TiO₂ : 1 ZnO, with value of 23.71 nm. For UV-VIS (Ultra-Violet/Visible Spectroscopy) measurement, we found the optical band-gap increased with increasing ZnO molecular concentration. The optical band-gap for optimum sample was 3.38 e.V represented this study has successfully improved the optical band-gap of TiO₂.

You might also be interested in these eBooks

Nanoscience, Nanotechnology and Nanoengineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 832)

Pages:

734-738

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.832.734

Citation:

Cite this paper

Online since:

November 2013

Authors:

S.K.M. Maarof, M.G.M. Zufrian, M.F. Achoi, Mohamad Rusop, Saifollah Abdullah

Keywords:

Sol-Gel Method, Spin Coating Technique, Titanium Dioxide (TiO₂), Zinc Oxide (ZnO)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. R. Zainun, S. Tomoya, U. M. Noor, M. Rusop, I. Masaya, New approach for generating Cu2O/TiO2 composite films for solar cell applications. Materials Letters. 66 (2012), 254–256.

DOI: 10.1016/j.matlet.2011.08.032

Google Scholar

[2] R. Ali, S. H. Hassan, Degradation Studies On Paraquat And Malathion Using Tio2/Zno Based Photocatalyst, The Malaysian Journal of Analytical Sciences. 12 (2008) 77-87.

Google Scholar

[3] L. Huang, F. Peng, H. Wang, H. Yu, Z. Li, Preparation and characterization of Cu2O/TiO2 nano–nano heterostructure photocatalysts. Catalysis Communications. 10 (2009) 1839–1843.

DOI: 10.1016/j.catcom.2009.06.011

Google Scholar

[4] T. Lihong, K. Deng, L. Zan., TiO2/carbon nanotube hybrid nanostructures: Solvothermal synthesis and their visible light photocatalytic activity, Journal of Solid State Chemistry. 184 (2011) 1465-1471.

DOI: 10.1016/j.jssc.2011.04.014

Google Scholar

[5] K. Hashimoto, H. Irie, A. Fujishima, TiO2 Photocatalysis: A Historical Overview and Future Prospects, Japanese Journal of Applied Physics. 44 (2005) 8269–8285.

DOI: 10.1143/jjap.44.8269

Google Scholar

[6] J. Tian, L. Chen, Y. Yin, X. Wang, J. Dai, Z. Zhu, X. Liu, P. Wu, Photocatalyst of TiO2/ZnO nano composite film: Preparation, characterization, and photodegradation activity of methyl orange. Surface & Coatings Technology. 204 (2009) 205–214.

DOI: 10.1016/j.surfcoat.2009.07.008

Google Scholar
