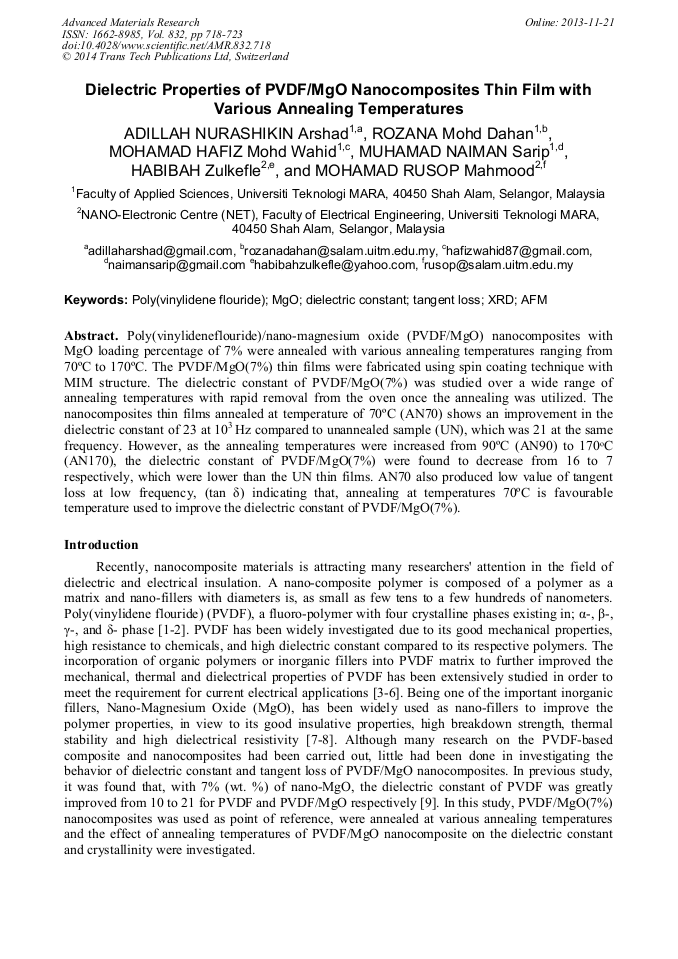

Dielectric Properties of PVDF/MgO Nanocomposites Thin Film with Various Annealing Temperatures

Abstract:

Poly (vinylideneflouride)/nanomagnesium oxide (PVDF/MgO) nanocomposites with MgO loading percentage of 7% were annealed with various annealing temperatures ranging from 70oC to 170oC. The PVDF/MgO(7%) thin films were fabricated using spin coating technique with MIM structure. The dielectric constant of PVDF/MgO(7%) was studied over a wide range of annealing temperatures with rapid removal from the oven once the annealing was utilized. The nanocomposites thin films annealed at temperature of 70oC (AN70) shows an improvement in the dielectric constant of 23 at 10³ Hz compared to unannealed sample (UN), which was 21 at the same frequency. However, as the annealing temperatures were increased from 90oC (AN90) to 170o C (AN170), the dielectric constant of PVDF/MgO(7%) were found to decrease from 16 to 7 respectively, which were lower than the UN thin films. AN70 also produced low value of tangent loss at low frequency˼˰˸̱̈́̾˰δ˹˰̴̷̹̹̳̱̹̾̈́̾˰̸̱̈́̈́˼˰̵̷̱̱̼̹̾̾̾˰̱̈́˰temperatures 70oC is favourable temperature used to improve the dielectric constant of PVDF/MgO(7%).

• Periodical: Advanced Materials Research (Volume 832)
• Pages: 718-723
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.832.718
• Online since: November 2013
• Authors: Adillah Nurashikin Arshad, Rozana Mohd Dahan, Mohamad Hafiz Mohd Wahid, Muhamad Naiman Sarip, Habibah Zulkefle, Mohamad Rusop Mahmood
• Keywords: AFM, Dielectric Constant, MgO, Poly(vinylidene Flouride), Tangent Loss, X-Ray Diffraction (XRD)

References

[1] Ma, W., J. Zhang, and X. Wang, Crystallizaion and surface morphology of poly(vinylidene fluoride)/poly(methylmethacrylate) films by solution casting on different substrates, Appl. Surf. Sci. 254 (2008) 2947-2954.

DOI: 10.1016/j.apsusc.2007.10.037

[2] He, F., J. Fan, and S. Lau, Thermal, mechanical, and dielectric properties of graphite reinforced poly(vinylidene fluoride) composites. Polym. Test. 27 (2008) 964-970.

DOI: 10.1016/j.polymertesting.2008.08.010

[3] Layek, R.K., S. Samantha, D.P. Chatterjee and A.K. Nandi, Physical and mechanical properties of poly (methyl methacrylate)-functionalized graphene/poly (vinylidine fluoride) nanocomposites: Piezoelectric β- polymorph formation, Polymer, 51 (2010) 5846-5856.

DOI: 10.1016/j.polymer.2010.09.067

[4] Manna, S., S.K. Batabyal, and A.K. Nandi, Preparation and Characterization of Silver−Poly(vinylidene fluoride) Nanocomposites:  Formation of Piezoelectric Polymorph of Poly(vinylidene fluoride), J. Phys. Chem. B, 110 (2006) 12318-12326.

DOI: 10.1021/jp061445y

[5] Xu, H.-P. and Z.-M. Dang, Electrical property and microstructure analysis of poly(vinylidene fluoride)-based composites with different conducting fillers, Chem. Phys. Lett. 438 (2007) 196-202.

DOI: 10.1016/j.cplett.2007.02.076

[6] Zak, A.K., W.C. Gan, W.H. Abd. Majid, M. Darroudi, and T.M. Velayutham, Experimental and theoretical dielectric studies of PVDF/PZT nanocomposite thin films. Ceram. Int., 37 (2011) 1653-1660.

DOI: 10.1016/j.ceramint.2011.01.037

[7] Gandhi, S., P. Abiramipriya, N. Pooja, J. Jeyakumari, J.L. Arasi, A. Yelil, V. Dhanalakshmi, M. R. Gopinathan Nair, and R. Anbarasan, Synthesis and characterizations of nano sized MgO and its nano composite with poly(vinyl alcohol). J. Non-Cryst Solids, 357 (2011) 181-185.

DOI: 10.1016/j.jnoncrysol.2010.09.050

[8] Wilson, S.A., R.P.J. Jourdain, Q. Zhang, R.A. Dorey, C.R. Bowen, M. Willander, Q.U. Wahab, S.M. Al-hili, O. Nur, E. Quandt, C. Johanssen, E. Pagounis, M. Kohl, J. Matovic, B. Samel, W. Van Der Wijngaart, E.W.H. Jager, Z. Djinovic, M. Wegener, C. Moldovan, R. Iosub, E. Abad, M. Wendlant, C. Rusu, and K. Persson, New materials for micro-scale sensors and actuators: An engineering review. Mater. Sci. Eng.,: R: Reports, 56 (2007) 1-129.

DOI: 10.1016/j.mser.2007.03.001

[9] Rozana, M.D., A.N. Arshad, M.H. Wahid, Z. Habibah, L.N. Ismail, M.N. Sarip, and M. Rusop, Dielectric constant of PVDF/MgO nanocomposites thin films. IEEE Symposium on ISBEIA (2012) 18-22.

DOI: 10.1109/isbeia.2012.6422866

[10] Natori K., O. Daijiro, and N. Sano, Thickness dependence of the effective dielectric constant in a thin film capacitor. App. Phys. Lett., 30 (1998) 632-634.

DOI: 10.1063/1.121930

[11] Rozana, M.D., M.J. Reece, L. Famiza, M.H. Wahid, A.N. Arshad and M.N. Sarip, Effect of PTFE and OTS on the Ferroelectric Properties of PVDF-TrFE Thin Films. World App. Sci. J., 16 (2012) 1196-1202.

[12] Blythe, T. and D. Bloor, Electrical Properties of Polymers. second edition ed. 2005, United Kingdom: Cambridge University Press. 492.

[13] Rozana, M.D., M.H. Wahid, A.N. Arshad, M.N. Sarip, Z. Habibah, L.N. Ismail, M. Rusop, W.H.A. Majid, and W.C. Gan, Effect of various annealing temperature on the morphological and dielectric properties of Polyvinylidenefluoride-Trifluoroethylene thin film. SHUSER, (2012) 749-753.

DOI: 10.1109/shuser.2012.6268990

[14] Newman, B.A., J.I. Scheinbeim, C.H. Yoon, and K.D. Pae, Polarization mechanisms in phase II poly(vinylidene fluoride) films. Macromolecules, 16 (1983) 60-68.

DOI: 10.1021/ma00235a012

[15] Scheinbeim, J.I., B.A. Newman, and A. Sen, Field-induced crystallization in highly plasticized poly(vinylidene fluoride) films. Macromolecules, 19 (1986) 1454-1458.

DOI: 10.1021/ma00159a029

[16] Patro, T.U., M.V. Mhalgi, D.V. Khakhar, and A. Misra, Studies on poly(vinylidene fluoride)-clay nanocomposites: Effect of different clay modifiers. Polymer, 49 (2008). 3486-3499.

DOI: 10.1016/j.polymer.2008.05.034

[17] Marega, C. and A. Marigo, Influence of annealing and chain defects on the melting behaviour of poly(vinylidene fluoride). Eur. Polym. J., 39 (2003) 1713-1720.

DOI: 10.1016/s0014-3057(03)00062-4

[18] Gregorio Jr, R. and D.S. Borges, Effect of crystallization rate on the formation of the polymorphs of solution cast poly(vinylidene fluoride). Polymer, 49 (2008). 4009-4016.

DOI: 10.1016/j.polymer.2008.07.010

[19] Sutcu, M., S. Akkurt, and S. Okur, Influence of crystallographic orientation on hydration of MgO single crystals. Ceram. Int., 35 (2009) 2571-2576.

DOI: 10.1016/j.ceramint.2009.02.012
