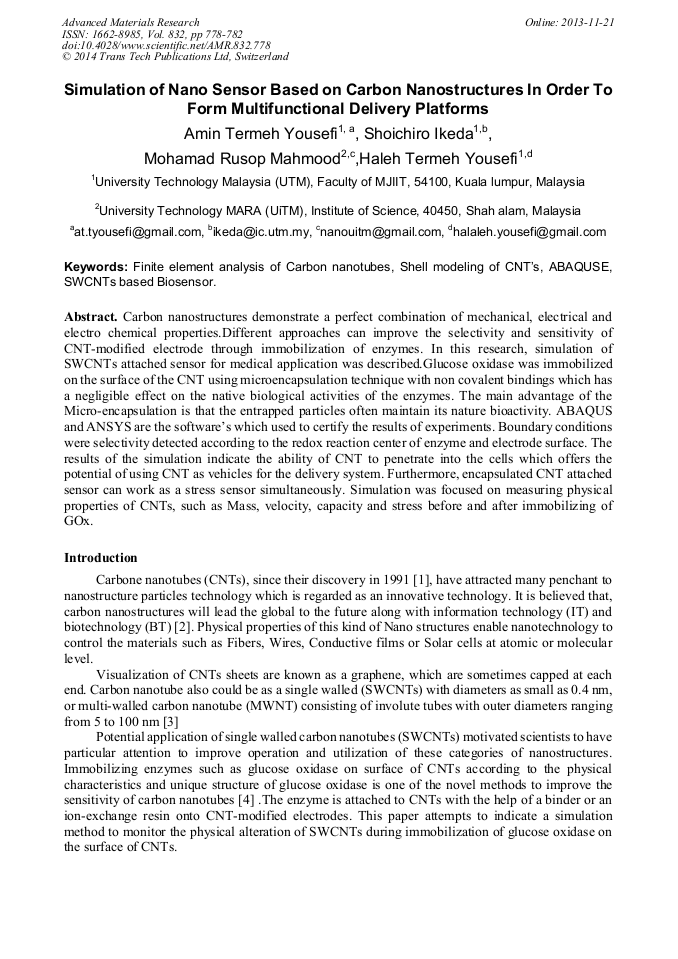

Simulation of Nano Sensor Based on Carbon Nanostructures in Order to Form Multifunctional Delivery Platforms

Abstract:

Carbon nanostructures demonstrate a perfect combination of mechanical, electrical and electro chemical properties.Different approaches can improve the selectivity and sensitivity of CNT-modified electrode through immobilization of enzymes. In this research, simulation of SWCNTs attached sensor for medical application was described.Glucose oxidase was immobilized on the surface of the CNT using microencapsulation technique with non covalent bindings which has a negligible effect on the native biological activities of the enzymes. The main advantage of the Micro-encapsulation is that the entrapped particles often maintain its nature bioactivity. ABAQUS and ANSYS are the softwares which used to certify the results of experiments. Boundary conditions were selectivity detected according to the redox reaction center of enzyme and electrode surface. The results of the simulation indicate the ability of CNT to penetrate into the cells which offers the potential of using CNT as vehicles for the delivery system. Furthermore, encapsulated CNT attached sensor can work as a stress sensor simultaneously. Simulation was focused on measuring physical properties of CNTs, such as Mass, velocity, capacity and stress before and after immobilizing of GOx.

• Periodical: Advanced Materials Research (Volume 832)
• Pages: 778-782
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.832.778
• Online since: November 2013
• Authors: Amin Termeh Yousefi, Shoichiro Ikeda, Mohamad Rusop, Haleh Termeh Yousefi
• Keywords: ABAQUSE, Finite Element Analysis of Carbon Nanotubes, Shell Modeling of CNTs, SWCNTs Based Biosensor

References

[1] Iijima S. Helical microtubules of graphitic carbon. J.Nature; 354: (1991) 56–8.

[2] T. W. Odom, J.-L. Huang, P. Kim, and C. M. Lieber, "Atomic structure and electronic properties of single-walled carbon nanotubes," Nature, vol. 391, no. 6662, (1998). , 62–64.

DOI: 10.1038/34145

[3] Morinobu Endo, Takuaya Hayashi, Yoong Ahm Kim, Mauricio Terrones. Applications of carbon nanotubes in the twenty-first century's. J .The Royal society. 52 , (2004)

[4] R. Wilson . Review article Glucose oxidase: an ideal enzyme , Biwlecrronia (1992) 165-185.

[5] Fulekar, M. H.. Importance & Applications of Nano technology . New Delhi: I. K. International Pvt Ltd. 16 , (2010).

[6] Vít Šmilauer, Petr Hlavácek, Pavel Padevet. Micromechanical Analysis of Cement Paste with Carbon Nanotubes . J. Acta Polytechnica. 52 ( 2012 )

DOI: 10.14311/1670

[7] S. Prabhu1, Shubrajit Bhaumik1 and B. K. Vinayagam2. Finite element modeling and analysis of zigzag and armchair type SWCNT. J . Mechanics and Physics , 4(8), pp., (2012) 260-266

[8] Antonio Pantano, David M.Parks, Mary C.Boyce . Mechanics of deformation of single- and multi-wall carbon nanotubes . J. Mechanics and Physics of Solids 52 (2004) 789 – 821

DOI: 10.1016/j.jmps.2003.08.004

[9] Sunita negi, , molecular dynamics simulations of nanometer sized devices based on carbon nanotubes , Institute for plasma research,J. Plasma research (2010).

[10] K.I. Tserpesa, P. Papanikos . Finite element modeling of single-walled carbon nanotubes, J . Composites: Part B 36 (2005) 468–477.

DOI: 10.1016/j.compositesb.2004.10.003

[11] Jin-Liang Zang, Quanzi Yuan, Feng-Chao Wang, Ya-Pu Zhao. A comparative study of Young's modulus of single-walled carbon nanotube by CPMD, MD and first principle simulations .J. Computational Materials Science 46 (2009) 621–625

DOI: 10.1016/j.commatsci.2009.04.007

[12] Ta-Wei Tsai, Gustavo Heckert, Luı´s F. Neves, Yongqiang Tan, Der-You Kao, Adsorption of Glucose Oxidase onto Single-Walled Carbon Nanotubes and Its Application in Layer-By-Layer Biosensors. J. Anal. Chem. (2009), 81, 7917–7925.

DOI: 10.1021/ac900650r

[13] John F. Peberdy. Nakamura and Fujiki . glucosidase. (1968) 281-303

[14] Patolsky F, Weizmann Y, Willner I Angew Chem , Adsorption of Glucose Oxidase onto Single-Walled Carbon Nao Tubes. J. Int Ed 43: (2004). 2113–2117.

DOI: 10.1002/anie.200353275

[15] Sujet S. Datta,Shin-Hyun Kim,Jayson Paulose,Alireza Abbaspourrad,David R. Nelson, Delayed Buckling and Guided Folding of Inhomogeneous Capsules, PRL 109, 134302 (2012)

DOI: 10.1103/physrevlett.109.134302

[16] C. H. Wong and V. Vijayaraghavan, Nanomechanics of Nonideal Single- and Double-Walled Carbon Nanotubes J, Nanomaterial's 2012 , (2012)

DOI: 10.1155/2012/490872

[17] Parvaneh, V., Shariati, M., and Majd Sabeti, A. M. Investigation of vacancy defects effects on the buckling behavior of SWCNTs via a structural mechanics approach. Solids, 28: (2009) 1072–1078

DOI: 10.1016/j.euromechsol.2009.05.007

[18] Dassault Systmes Simulia Corp., ABAQUS version 6.10 documentation and theory manual; http://abaqus.civil.uwa.edu.au:2080/v6.10/index.html (2011)

[19] X.Y. Wang, X. Wang ,Numerical simulation for bending modulus of carbon nanotubes and some explanations for experiment, 35, Issue 2, ( 2004),79–86

DOI: 10.1016/s1359-8368(03)00084-2

[20] Siva Yellampalli .Carbon Nanotubes – Polymer Nano composites .J. InTech (2011)

[21] Leading Technology for FEA, Design Optimization and Simulation Data Management and ABAQUS version 6.12 documentation. http://www.3ds.com/products/simulia/overview/

[22] High-Performance Abaqus Simulations in Soil Mechanics Reloaded – Chances and Frontiers, Torben Pichler, Tim Pucker, Thorben Hamann, Sascha Henke, Gang Qiu, SIMULIA Community Conference, Homburg (2012).
