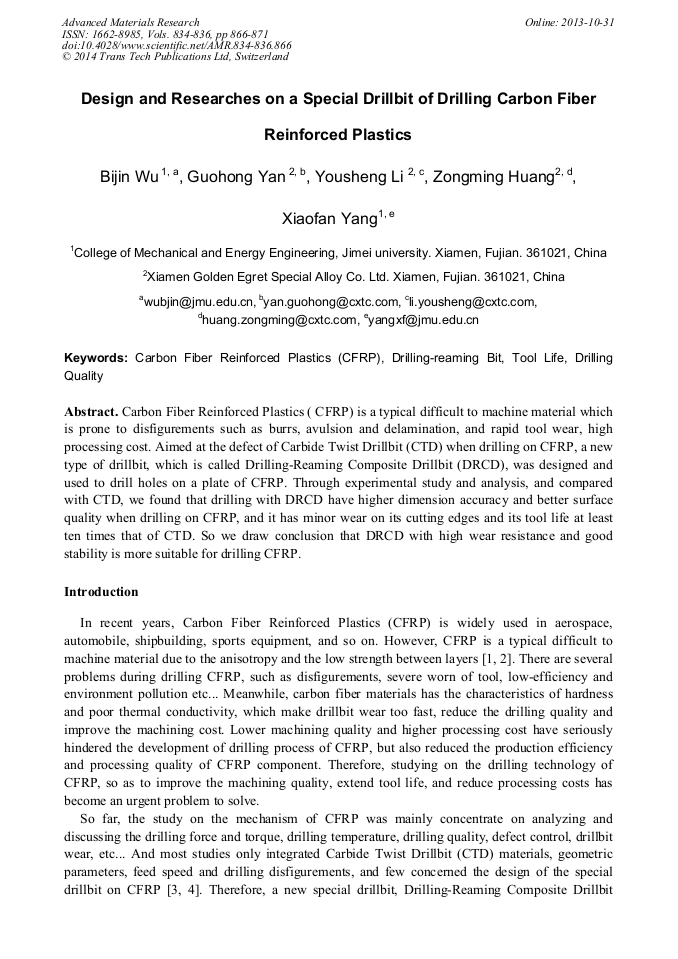

Design and Researches on a Special Drillbit of Drilling Carbon Fiber Reinforced Plastics

Abstract:

Carbon Fiber Reinforced Plastics ( CFRP) is a typical difficult to machine material which is prone to disfigurements such as burrs, avulsion and delamination, and rapid tool wear, high processing cost. Aimed at the defect of Carbide Twist Drillbit (CTD) when drilling on CFRP, a new type of drillbit, which is called Drilling-Reaming Composite Drillbit (DRCD), was designed and used to drill holes on a plate of CFRP. Through experimental study and analysis, and compared with CTD, we found that drilling with DRCD have higher dimension accuracy and better surface quality when drilling on CFRP, and it has minor wear on its cutting edges and its tool life at least ten times that of CTD. So we draw conclusion that DRCD with high wear resistance and good stability is more suitable for drilling CFRP.

• Periodical: Advanced Materials Research (Volumes 834-836)
• Pages: 866-871
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.834-836.866
• Online since: October 2013
• Authors: Bi Jin Wu, Guo Hong Yan, You Sheng Li, Zong Ming Huang, Xiao Fan Yang
• Keywords: Carbon Fiber Reinforced Plastics (CFRP), Drilling Quality, Drilling-Reaming Bit, Tool Life

References

[1] Hocheng H, TsaoC C: Effects of special drillbits on drilling induced delamination of composite materials, International Journal of Machine Tools and Manufacture, 46 (12213), P. 1403-1416. (2006).

DOI: 10.1016/j.ijmachtools.2005.10.004

[2] Jin Z J, BaoY J and Gao H: Disfigurement formation and control in drilling carbon fibre reinforced composites, International Journal of Materials and Product Technology, volume 31, issue 1, (2008).

DOI: 10.1504/ijmpt.2008.015894

[3] Karnik S R, Gaitonde V N: Delamination an alysis in high speed drilling of carbon fiber reinforced plastics using artificial neural network model. Materials and design, volume 29, issue 9, 1768- 1776, (2008).

DOI: 10.1016/j.matdes.2008.03.014

[4] ZHANG Hou-jiang, CHEN Wu-yi: Study on cutting mechanism of Carbon Fibre Reinforced Plastics, Aeronautical Manufacturing Technology, Issue 7, 57-59, (2004).

[5] ZHANG Hou-jiang, CHEN Wu-yi: Investigation of the exit defects in drilling Carbon Fibre Reinforced Plastics, Chinese journal of mechanical engineering, Issue7, 150-155, (2004).

DOI: 10.3901/jme.2004.07.150

[6] WEI Liang-yao, CHENG Yu: Study of drilling thrust force of coated drills in drilling the carbon fiber reinforced plastic, Manufacturing Technology & Machine Tool, issue 1, 141-144, (2013).

[7] Hocheng H, Tsao C C: The path towards delamination-free drilling of composite materials, Journal of Materials Processing Technology, volume 167, 251- 264, (2005).

DOI: 10.1016/j.jmatprotec.2005.06.039

[8] WANG Ming-hai, SUN Guo-qiang: Finite Element Analysis of the Effect of Chisel Edge on Drilling Composite Laminates, Manufacturing Technology & Machine Tool, Issue 6, 137-140, (2013).
