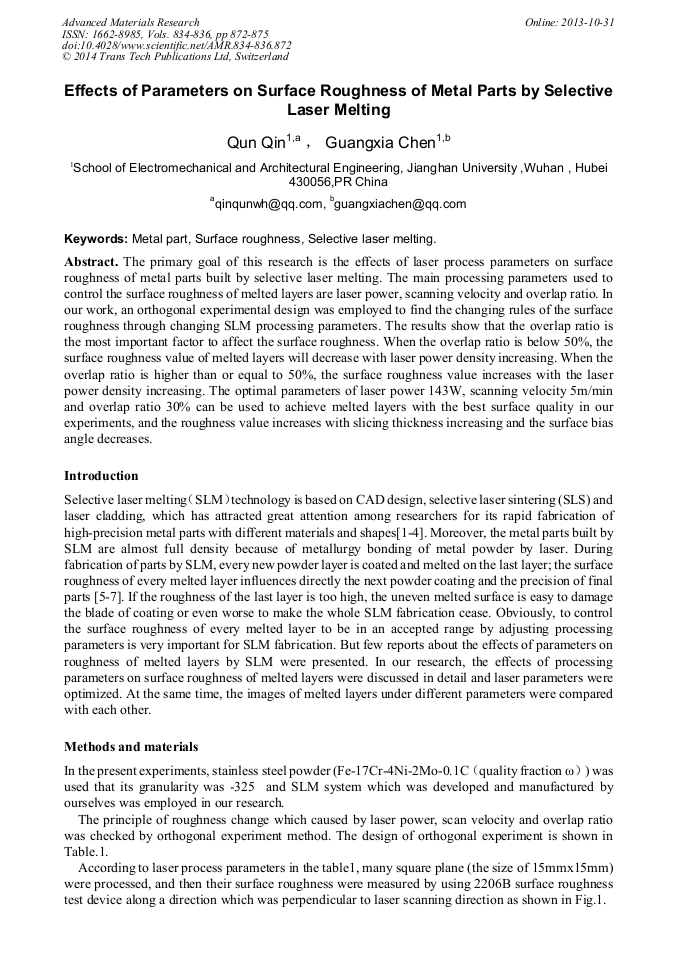

Effects of Parameters on Surface Roughness of Metal Parts by Selective Laser Melting

Abstract:

The primary goal of this research is the effects of laser process parameters on surface roughness of metal parts built by selective laser melting. The main processing parameters used to control the surface roughness of melted layers are laser power, scanning velocity and overlap ratio. In our work, an orthogonal experimental design was employed to find the changing rules of the surface roughness through changing SLM processing parameters. The results show that the overlap ratio is the most important factor to affect the surface roughness. When the overlap ratio is below 50%, the surface roughness value of melted layers will decrease with laser power density increasing. When the overlap ratio is higher than or equal to 50%, the surface roughness value increases with the laser power density increasing. The optimal parameters of laser power 143W, scanning velocity 5m/min and overlap ratio 30% can be used to achieve melted layers with the best surface quality in our experiments, and the roughness value increases with slicing thickness increasing and the surface bias angle decreases.

• Periodical: Advanced Materials Research (Volumes 834-836)
• Pages: 872-875
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.834-836.872
• Online since: October 2013
• Authors: Qun Qin, Guang Xia Chen
• Keywords: Metal Part, Selective Laser Melting (SLM), Surface Roughness (SR)

References

[1] I. Yadroitsev, Ph. Bertrand, I. Smurov. Parametric analysis of the selective laser melting process. Applied Surface Science, 253 (2007): 8064–8069.

DOI: 10.1016/j.apsusc.2007.02.088

[2] D.T. Pham, R.S. Gault. A comparison of rapid prototyping technologies. International Journal of Machine Tools & Manufacture, 1998, (38): 1257-1287.

DOI: 10.1016/s0890-6955(97)00137-5

[3] P.A. Kobryn, E.H. Moore, S.L. Semiatin. The effect of laser power and traverse speed on microstructure, porosity, and build height in laser-deposited Ti-6Al-4V. Script a mater, 2000, 43(4): 299~305.

DOI: 10.1016/s1359-6462(00)00408-5

[4] Li Peng, Ji Shengqin, Zeng Xiaoyan. Direct laser fabrication of nickel alloy samples. International Journal of Machine Tools & Manufacture [J], 2005(45): 1288–1294.

DOI: 10.1016/j.ijmachtools.2005.01.014

[5] F. Wang, J. Mei, H. Jiang, X. Wu. Laser fabrication of Ti6Al4V/TiC composites using simultaneous powder and wire feed. Materials Science and Engineering A 445–446 (2007): 461–466.

DOI: 10.1016/j.msea.2006.09.093

[6] Zhang D Y. Entwicklung des Selective Laser Melting (SLM) fur Aluminum workstoffe: [Ph.D. Disstration] Deutschland, Aachen: RWTH Aachen, (2004).

[7] Over C, Meiners W, W issenbach K, et al. Selective laser melting: a new approach for the direct manufacturing of metal parts and tools. 1st International Conference on Laser assisted Net Shape Engineering, Germany: Frankfurt, (2001).
