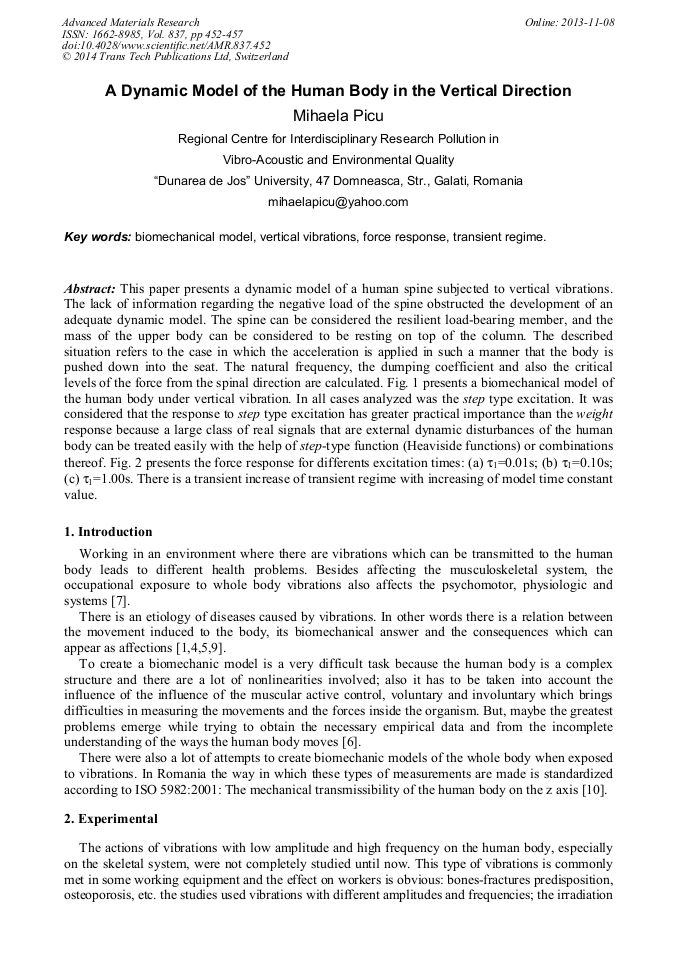

A Dynamic Model of the Human Body in the Vertical Direction

Abstract:

This paper presents a dynamic model of a human spine subjected to vertical vibrations. The lack of information regarding the negative load of the spine obstructed the development of an adequate dynamic model. The spine can be considered the resilient load-bearing member, and the mass of the upper body can be considered to be resting on top of the column. The described situation refers to the case in which the acceleration is applied in such a manner that the body is pushed down into the seat. The natural frequency, the dumping coefficient and also the critical levels of the force from the spinal direction are calculated. Fig. 1 presents a biomechanical model of the human body under vertical vibration. In all cases analyzed was the step type excitation. It was considered that the response to step type excitation has greater practical importance than the weight response because a large class of real signals that are external dynamic disturbances of the human body can be treated easily with the help of step-type function (Heaviside functions) or combinations thereof. Fig. 2 presents the force response for differents excitation times: (a) τ₁=0.01s; (b) τ₁=0.10s; (c) τ₁=1.00s. There is a transient increase of transient regime with increasing of model time constant value. Key words: biomechanical model, vertical vibrations, force response, transient regime.

• Periodical: Advanced Materials Research (Volume 837)
• Pages: 452-457
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.837.452
• Online since: November 2013
• Authors: Mihaela Picu
• Keywords: Biomechanical Model, Force Response, Transient Regime, Vertical Vibrations

References

[1] Bronzino, J.D. (2000), The Biomedical Engineering HandBook, Second Edition, Boca Raton: CRC Press LLC.

[2] Cherian, T. (1990), Characteristics of vibration transmission in the hand–arm system, Biosystems Engineering, Vol. 100, Issue 4, 535-546.

[3] Gekeler, E.W. (2008), Mathematical Methods for Mechanics. A Handbook with MATLAB Experiments, Springer-Verlag Berlin Heidelberg, e-ISBN: 978-3-540-69279-9.

[4] Hall, J.G., Allanson, J.E., Gripp, K.W. & Slavotinek, A.M. (2007), Handbook of Physical Measurements, Second Edition, Oxford University Press, ISBN-13 978-0-19-530149-6.

DOI: 10.1007/s00439-007-0382-7

[5] Hamill, J. şi Knutzen, K.M. (2009), Biomechanical Basis of Human Movement, 3rd Edition, Lippincott Williams & Wilkins.

[6] Liang, C.C. şi Chiang, C.F. (2006), A study on biodynamic models of seated human subjects exposed to vertical vibration, International Journal of Industrial Ergonomics, 36, 869–890.

DOI: 10.1016/j.ergon.2006.06.008

[7] Mansfield, N.J. şi Griffin M.J. (2005), Effect of magnitude of vertical whole-body vibration on absorbed power for the seated human body, Journal of Sound and Vibration, 215, 813-825.

DOI: 10.1006/jsvi.1998.1596

[8] Modiga, M. (2001), Introducere in mecanica mediilor continue si microstructurala, vol. I.

[9] Nastac, S. (2009).

[10] ISO 5982: 2001 – Mechanical vibration and shock - Range of idealized values to characterize seated-body biodynamic response under vertical vibration.

DOI: 10.1006/jsvi.1998.1674

[11] http: /www. vibration. db. umu. se/Kalkylator. aspx?calc=hkv&lang=en.
