Stability Analysis of Highway Tunnel through Mined-Out Area during Excavation Process

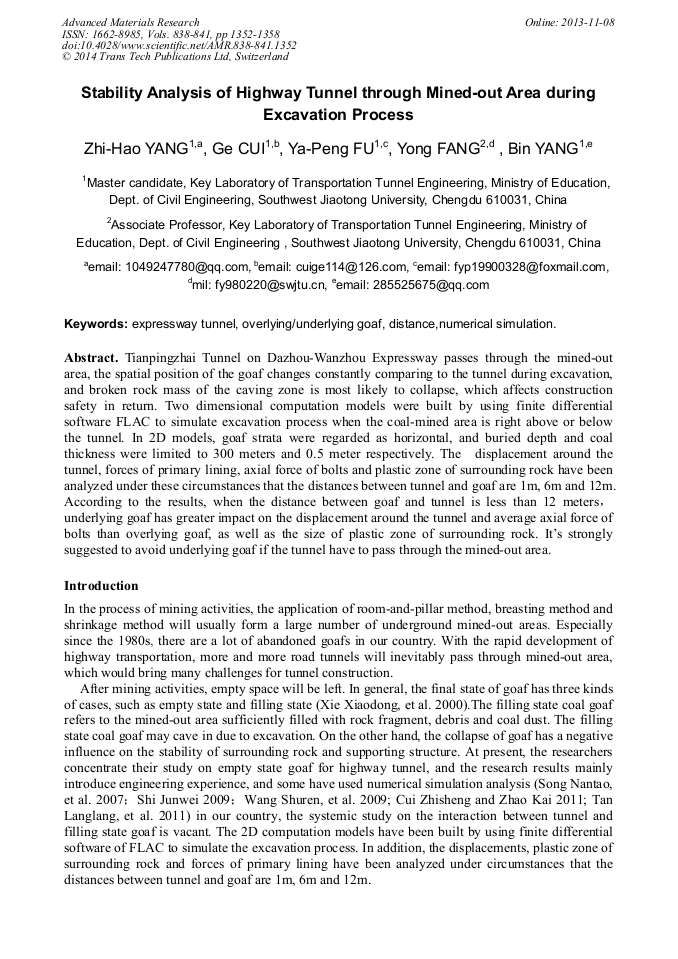

Abstract:

Tianpingzhai Tunnel on Dazhou-Wanzhou Expressway passes through the mined-out area, the spatial position of the goaf changes constantly comparing to the tunnel during excavation, and broken rock mass of the caving zone is most likely to collapse, which affects construction safety in return. Two dimensional computation models were built by using finite differential software FLAC to simulate excavation process when the coal-mined area is right above or below the tunnel. In 2D models, goaf strata were regarded as horizontal, and buried depth and coal thickness were limited to 300 meters and 0.5 meter respectively. The displacement around the tunnel, forces of primary lining, axial force of bolts and plastic zone of surrounding rock have been analyzed under these circumstances that the distances between tunnel and goaf are 1m, 6m and 12m. According to the results, when the distance between goaf and tunnel is less than 12 meters,underlying goaf has greater impact on the displacement around the tunnel and average axial force of bolts than overlying goaf, as well as the size of plastic zone of surrounding rock. Its strongly suggested to avoid underlying goaf if the tunnel have to pass through the mined-out area.

• Periodical: Advanced Materials Research (Volumes 838-841)
• Pages: 1352-1358
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.838-841.1352
• Online since: November 2013
• Authors: Zhi Hao Yang, Ge Cui, Ya Peng Fu, Yong Fang, Bin Yang
• Keywords: Distance, Expressway Tunnel, Numerical Simulation, Overlying/Underlying Goaf

References

[1] The Industry Standard of the People's Republic of China. (2004) Code for Design of Road Tunnel (JTG D70—2004) M. Beijing: China Communications Press. (In Chinese).

[2] Xie Xiaodong, Zhang Xianwei, Li Zhili. (2000) Effect of Coal Seam Gob Area in Tieshan tunnel., Coal Geology of China, 12(4): 44-47. (In Chinese).

[3] Shi Junwei. (2009) Study on Goaf Area Construction Technoogy of Hungshan Tunnel of Nandaliang Express., ChengDu: SouthwestJiaotongUniversity. (In Chinese).

[4] Song Nantao, Chen Huitao, Wang Mingnian, Li Yajun. (2007) Safety Analysis of Tunnelling in Coal-Minded Area., Tunnel/Undergroud Engineering, (3): 48-51. (In Chinese).

[5] Wang Shuren, Zhang Haiqing, Shen Naiqi. (2009).

[6] Cui Zhisheng, Zhao Kai, Gong Jianwu. (2011) Numerical Simulation Analysis on Effect of Underlying Goaf in Road Tunnel Construction., Exploration Engineering(Rock & Soil Drilling and Tunneling), 38(07): 76-79. (In Chinese).

[7] Tan Langlang，Luo Zhouquan，Deng Qiao. (2011) Analysis and visual verification of a typical cavity instability mode., Mineral Engineering Research, 26(4): 40-43. (In Chinese).

[8] Wang Shaobin. (2005) Stability Analysis of Underlying Goaf in Bo Shudi Railway Tunnel Construction., Railway Construction, (12): 30-31. (In Chinese).
