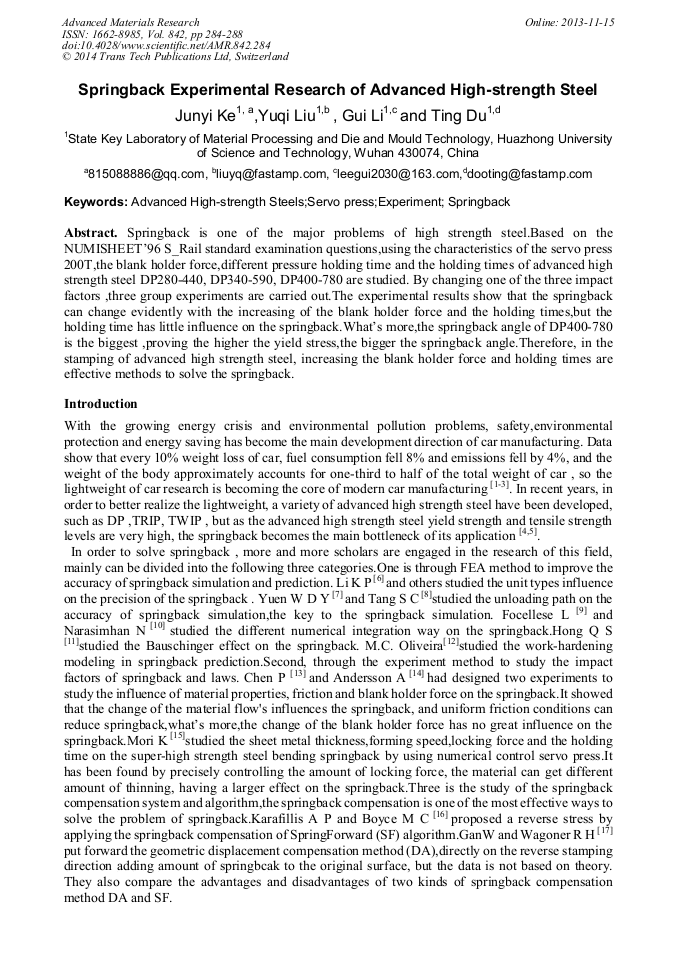

Springback Experimental Research of Advanced High-Strength Steel

Abstract:

Springback is one of the major problems of high strength steel.Based on the NUMISHEET’96 S_Rail standard examination questions,using the characteristics of the servo press 200T,the blank holder force,different pressure holding time and the holding times of advanced high strength steel DP280-440, DP340-590, DP400-780 are studied. By changing one of the three impact factors ,three group experiments are carried out.The experimental results show that the springback can change evidently with the increasing of the blank holder force and the holding times,but the holding time has little influence on the springback.What’s more,the springback angle of DP400-780 is the biggest ,proving the higher the yield stress,the bigger the springback angle.Therefore, in the stamping of advanced high strength steel, increasing the blank holder force and holding times are effective methods to solve the springback.

• Periodical: Advanced Materials Research (Volume 842)
• Pages: 284-288
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.842.284
• Online since: November 2013
• Authors: Jun Yi Ke, Yu Qi Liu, Gui Li, Ting Du*
• Keywords: Advanced High Strength Steel (AHSS), Experiment, Servo Press, Springback

References

[1] Z Cedric Xia, Craig E Miller, Maurice Lou. A Bench-mark Test for Springback: Experimental Procedures and Results of a Slit-Ring Test[J]. SAE Technical Pa-per Series, 2005-01-0083: 1-8.

DOI: 10.4271/2005-01-0083

[2] Zrnik J, Mamuzic I, Dobatkin S V. Recent Progress in High Strength Low Carbon Steels[J]. Metabk，2006，45( 4) : 323.

[3] International Iron& Steel Institute Committee on Automotive Application. Advanced High Stringth Steel (AHSS) Application Guide-lines [J]. International Iron& Steel Institute, 2006: 1-3.

[4] Wagoner R H. Advanced High Strength Steel Workshop. Arlington, Virginia, USA, October 22-23, 2006, 1-122.

[5] Wagoner R H, Lim H, Lee M G. Advanced Issues in springback[J]. International Journal of Plasticity, 2013, 45: 3-20.

[6] Li K P, Geng L, Wagoner R H. Simulation of springback: choice of element. Advanced Technology of Plasticity, vol. III, Springer, Berlin, 1999, 2091-(2098).

[7] Yuen W Y D. Springback in the stretch-bending of sheet metal with non-uniform deformation[J]. Journal of Materials Processing Technology, 1990, 22: 1-20.

DOI: 10.1016/0924-0136(90)90138-k

[8] Tang S C. Analysis of springback in sheet forming operation. Advanced Technology of Plasticity, vol. 1, Springer, Berlin, 1987, 193-197.

[9] Focellese L, Fratini F, Gabrielli M F. The evaluation of springback in 3D stamping and coining processes[J]. Journal of Materials Processing Technology, 1998, 80-81: 108-112.

DOI: 10.1016/s0924-0136(98)00136-8

[10] Narasimhan N, Lovell M. Predicting springback in sheet metal forming: an explicit to implicit sequential solution procedure[J]. Finite Elements in Analysis and Design, 1999, 33(1): 29-42.

DOI: 10.1016/s0168-874x(99)00009-8

[11] Hongqing Shen, Shuhui Li, Guanlong Chen. Numerical analysis of panels'dent resistance considering the Bauschinger effect[J]. Materials and Design, 2010, 31: 870–876.

DOI: 10.1016/j.matdes.2009.07.043

[12] M.C. Oliveira J.L. Alves ,B.M. Chaparro ,L.F. Menezes. Study on the influence of work-hardening modeling in springback prediction[J]. International Journal of Plasticity, 2007, 23: 516–543.

DOI: 10.1016/j.ijplas.2006.07.003

[13] Chen P, Koc M, Wenner M L. Experimental Investigation of Springback Variation in Forming of High Strength Steels[J]. Journal of Manufacturing Science and Engineering, 2008, 130(4): 041006. 1-041006. 9.

DOI: 10.1115/1.2951941

[14] Andersson A. Numerical and Experimental Evaluation of Springback in Advanced High Strength Steel[J]. Journal of Materials Engineering and Performance, 2007, 16(3): 301-307.

DOI: 10.1007/s11665-007-9056-9

[15] Mori K, Akita K, Abe Y. Springback behaviour in bending of ultra-high-strength steel sheets using CNC servo press[J]. International Journal of Machine Tools & Manufacture, 2007, 47(2): 321-325.

DOI: 10.1016/j.ijmachtools.2006.03.013

[16] Karafillis A P, Boyce M C. Tooling design in sheet metal forming using springback calculations[J]. International Journal of Mechanical Sciences, 1992, 34(2): 113-31.

DOI: 10.1016/0020-7403(92)90077-t

[17] Gan W, Wagoner R H. Die design method for sheet springback[J]. International Journal of Mechanical Sciences, 2004, 46(7): 1097-1113.

DOI: 10.1016/j.ijmecsci.2004.06.006
