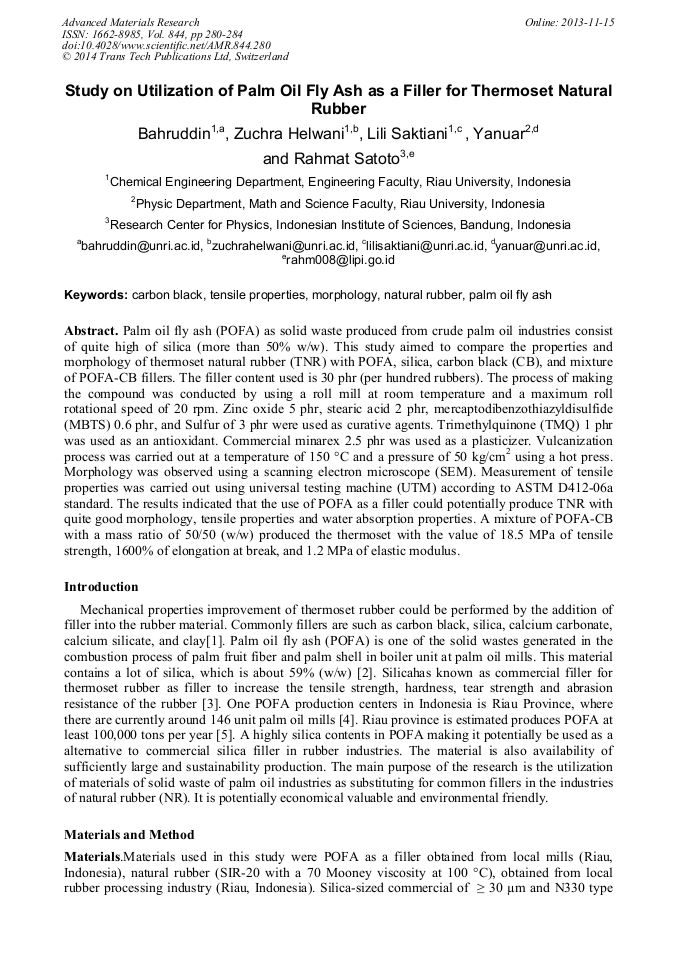

Study on Utilization of Palm Oil Fly Ash as a Filler for Thermoset Natural Rubber

Abstract:

Palm oil fly ash (POFA) as solid waste produced from crude palm oil industries consist of quite high of silica (more than 50% w/w). This study aimed to compare the properties and morphology of thermoset natural rubber (TNR) with POFA, silica, carbon black (CB), and mixture of POFA-CB fillers. The filler content used is 30 phr (per hundred rubbers). The process of making the compound was conducted by using a roll mill at room temperature and a maximum roll rotational speed of 20 rpm. Zinc oxide 5 phr, stearic acid 2 phr, mercaptodibenzothiazyldisulfide (MBTS) 0.6 phr, and Sulfur of 3 phr were used as curative agents. Trimethylquinone (TMQ) 1 phr was used as an antioxidant. Commercial minarex 2.5 phr was used as a plasticizer. Vulcanization process was carried out at a temperature of 150 °C and a pressure of 50 kg/cm² using a hot press. Morphology was observed using a scanning electron microscope (SEM). Measurement of tensile properties was carried out using universal testing machine (UTM) according to ASTM D412-06a standard. The results indicated that the use of POFA as a filler could potentially produce TNR with quite good morphology, tensile properties and water absorption properties. A mixture of POFA-CB with a mass ratio of 50/50 (w/w) produced the thermoset with the value of 18.5 MPa of tensile strength, 1600% of elongation at break, and 1.2 MPa of elastic modulus.

• Periodical: Advanced Materials Research (Volume 844)
• Pages: 280-284
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.844.280
• Online since: November 2013
• Authors: Bahruddin Bahruddin, Zuchra Helwani, Lili Saktiani, Yanuar Yanuar, Rahmat Satoto
• Keywords: Carbon Black (CB), Morpholoy, Natural Rubber (NR), Palm Oil Fly Ash, Tensile Properties

References

[1] D. Moonchai, N. Moryadee, N. Poosodsang, Comparative Properties of Natural Rubber Vulcanizates Filled with Defatted Rice Bran, Clay, and Calcium Carbonate, Maejo International Journal of Science and Technology 6 (2012) 249-258.

[2] Bahruddin, Adrianto Ahmad, AdhyPrayitno, Morphology and Mechanical Properties of Palm Based Fly Ash Reinforced Dynamically Vulcanized Natural Rubber/Polypropylene Blends, Procedia Chemistry 4(2012) 146-153.

DOI: 10.1016/j.proche.2012.06.021

[3] Siswanto, M. Hamzah, A. Mahendra, Fausiah, Engineering of Nanosilika made of Local Silica as Filler Compound Rubber of Air Bag Rubber of Ship Yard Launching, In Proceedings of SINas (2012) 56-59.

[4] Information on http: /www. almasdi. staff. unri. ac. id/2012/09/06/potential-development-industrial-oil-palm.

[5] Information on http: /www. isroi. com/2008/03/12/-utilization of by-products-coconut-palm-as-source-alternative-renewable-energy.

[6] Ismail, H. Salmah, M. Nasir. 2001. Dynamic Vulcanization of Rubberwood Filled Polypropy-lene/Natural Rubber Blend, Polymer Testing, Vol. 20: 819-823.

DOI: 10.1016/s0142-9418(01)00010-1

[7] M.J. Wang, P. Zhang, K. Mahmud, Carbon Silica Dual Phase Filler, A New Generation Reinforcing Agent for Rubber, Wilson Applied Science and Technology. 74 (2001) 124-128.

DOI: 10.5254/1.3547633

[8] P. Ghosh, S. Katare, P. Patkar, J.M. Caruthers, V. Venkatasubramanian, Sulfur Vulcanization of Natural Rubber For Benzothiazole Accelerated Formulations: From Reaction Mechanisms to A Rational Kinetic Model, Rubber Chemistry and Technology. 76 (2003).

DOI: 10.5254/1.3547762

[9] M. Morton, Rubber Technology, third ed., Van Nostrand Reinhold, New York, (1987).

[10] S. Nago, Y. Mizutani, Microporous Polypropylene Fibers Containing CaCO3 Fillers, J. Appl. Polym. Sci. 62 (1996) 6-81.

DOI: 10.1002/(sici)1097-4628(19961003)62:1<81::aid-app11>3.0.co;2-b

[11] T. Saowapark, Reinforcement of Natural Rubber with Silica/Carbon Black Hybrid Filler, Ph. D Thesis, Mahidol University, 2005, p.20.
