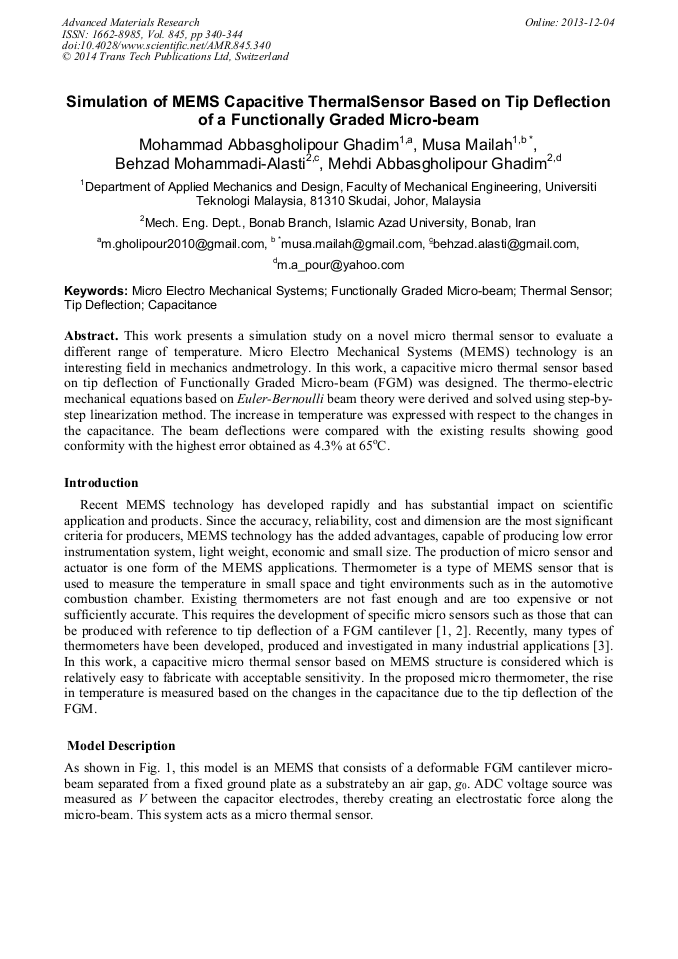

Simulation of MEMS Capacitive Thermal Sensor Based on Tip Deflection of a Functionally Graded Micro-Beam

Abstract:

This work presents a simulation study on a novel micro thermal sensor to evaluate a different range of temperature. Micro Electro Mechanical Systems (MEMS) technology is an interesting field in mechanics andmetrology. In this work, a capacitive micro thermal sensor based on tip deflection of Functionally Graded Micro-beam (FGM) was designed. The thermo-electric mechanical equations based on Euler-Bernoulli beam theory were derived and solved using step-by-step linearization method. The increase in temperature was expressed with respect to the changes in the capacitance. The beam deflections were compared with the existing results showing good conformity with the highest error obtained as 4.3% at 65°C.

• Periodical: Advanced Materials Research (Volume 845)
• Pages: 340-344
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.845.340
• Online since: December 2013
• Authors: Mohammad Abbasgholipour Ghadim, Musa Mailah*, Behzad Mohammadi-Alasti, Mehdi Abbasgholipour Ghadim
• Keywords: Capacitance, Functionally Graded Micro-Beam, Micro Electro Mechanical Systems, Thermal Sensor, Tip Deflection

References

[1] S. Kouravand, G. Rezazadeh. MEMS capacity micro thermometer based on tip deflection of bimetallic cantilever beam, Sensors & Transducers Journal. 70(8) (2006) 637-644.

[2] B.M. Alasti, G. Rezazadeh. On the mechanical behavior of a functionally graded micro-beam subjected to a thermal moment and nonlinear electrostatic pressure, Composite Structures. 93 (2011) 1516–1525.

DOI: 10.1016/j.compstruct.2010.11.013

[3] R.K. Bhangale, N. Ganesan, C. Padmanabhan, Linear thermoelastic buckling and free vibration behavior of functionally graded truncated conical shells, J. Sound & Vibration. 292(1-2) (2006) 341–371.

DOI: 10.1016/j.jsv.2005.07.039

[4] L. Zhou, D. Tang, A functionally graded structural design of mirrors for reducing their thermal deformations in high-power laser systems by finite element method, Optics & Laser Technology. 39(5) (2007) 980–986.

DOI: 10.1016/j.optlastec.2006.06.003

[5] M. Simsek, Fundamental frequency analysis of functionally graded beams by using different higher-order beam theories, Nuclear Engineering and Design. 240 (2010) 697-705.

DOI: 10.1016/j.nucengdes.2009.12.013

[6] F. Erdogan, B.H. Wu, Crack problems in FGM layers under thermal stresses, J. Therm. Stresses. 19 (1996) 237–265.

DOI: 10.1080/01495739608946172

[7] M.H. Sadd, Elasticity: Theory, Applications and Numerics, 2nd Edition, Academic Press, (2009).

[8] G. Anandakumar, J.H. Kim, On the modal behavior of a three-dimensional functionally graded cantilever beam: Poisson's ratio and material sampling effects, J. Compos. Struct. 92 (2010) 1358–1371.

DOI: 10.1016/j.compstruct.2009.11.020

[9] W.H. Chu, M. Mehregany, R.L. Mullen, Analysis of tip deflection and force of a bimetallic cantilever microactuator, J. Micromech. Microeng. 3 (1993) 4-7.

DOI: 10.1088/0960-1317/3/1/002
