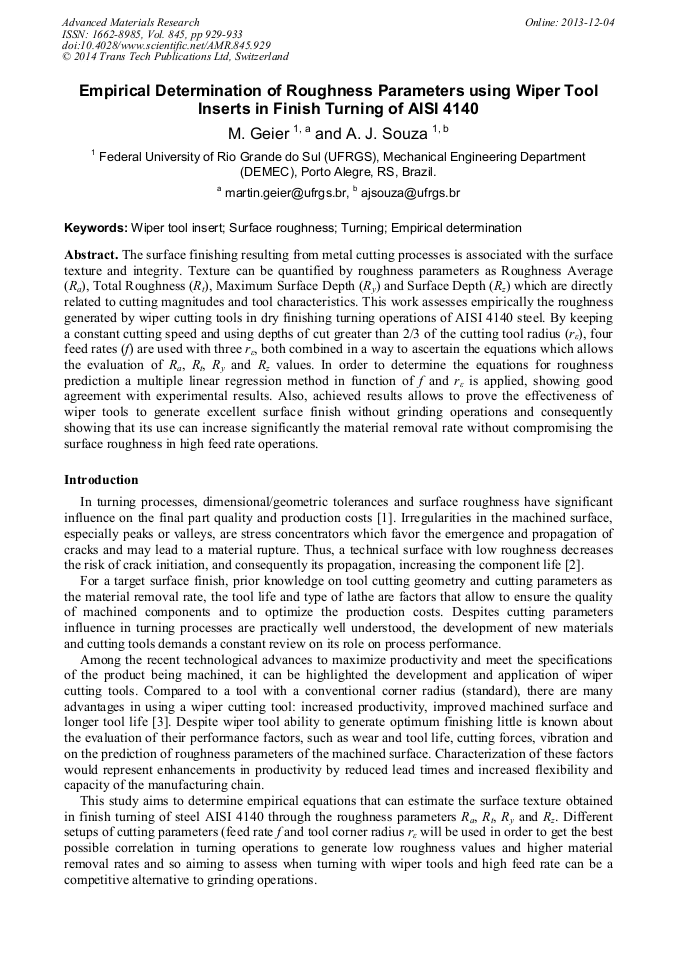

Empirical Determination of Roughness Parameters Using Wiper Tool Inserts in Finish Turning of AISI 4140

Abstract:

The surface finishing resulting from metal cutting processes is associated with the surface texture and integrity. Texture can be quantified by roughness parameters as Roughness Average (R_a), Total Roughness (R_t), Maximum Surface Depth (R_y) and Surface Depth (R_z) which are directly related to cutting magnitudes and tool characteristics. This work assesses empirically the roughness generated by wiper cutting tools in dry finishing turning operations of AISI 4140 steel. By keeping a constant cutting speed and using depths of cut greater than 2/3 of the cutting tool radius (r_ε), four feed rates (f) are used with three r_ε, both combined in a way to ascertain the equations which allows the evaluation of R_a, R_t, R_y and R_z values. In order to determine the equations for roughness prediction a multiple linear regression method in function of f and r_ε is applied, showing good agreement with experimental results. Also, achieved results allows to prove the effectiveness of wiper tools to generate excellent surface finish without grinding operations and consequently showing that its use can increase significantly the material removal rate without compromising the surface roughness in high feed rate operations.

• Periodical: Advanced Materials Research (Volume 845)
• Pages: 929-933
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.845.929
• Online since: December 2013
• Authors: Martin Geier*, André J. Souza
• Keywords: Empirical Determination, Surface Roughness (SR), Turning, Wiper Tool Insert

References

[1] T. R. Thomas, Rough Surface,. London, Longman, 1982, 261p.

[2] J. P. Davim, Machining: Fundamentals and Recent Advances, London, Springer-Verlag, 2008, 361p.

[3] X. He, S. Wu, and H. Kratz, Forces in hard turning of 51CrV4 with wiper cutting tool, Tsinghua Science and Technology, vol. 11, no. 5, p.501–506, (2006).

DOI: 10.1016/s1007-0214(06)70226-7

[4] F. Klocke, Manufacturing Processes 1: Cutting, RWTH Aachen. Springer, 2011, 522p.

[5] W. Grzesik and T. Wanat, Surface finish generated in hard turning of quenched alloy steel parts using conventional and wiper ceramic inserts, International Journal of Machine Tools and Manufacturing., vol. 46, no. 15, p.1988–1995, (2006).

DOI: 10.1016/j.ijmachtools.2006.01.009

[6] E. A. Correia and J. P. Davim, Surface roughness measurement in turning carbon steel AISI 1045 using wiper inserts, Measurement, vol. 44, no. 5, p.1000–1005, (2011).

DOI: 10.1016/j.measurement.2011.01.018

[7] V. P. Astakhov, Geometry of Single Point Turning Tools and Drills – Fundamentals and Practical Applications,. Heidelberg, Springer, 2010, 565p.

[8] G. T. Smith, Cutting Tool Technology, London, Springer, 2008, 600p.

[9] Sandvik, Metal Cutting Technical Guide – General Turning, Sandvik Coromant, 2012, 156p.

[10] ISO 4287, Geometrical Product Specifications (GPS), Surface Texture: Profile Method, Terms, Definitions and Surface Texture Parameters, 1997, 25p.

DOI: 10.3403/30398213u

[11] W. P. Silva and C. M. D. P. S. Silva, LAB Fit Curve Fitting Software, Nonlinear Regression and Treatment of Data Program, V 7. 2. 47 (1999-2010). In: www. labfit. net.
