Adaptive Monopulse Angle Measurement for Meter-Wave Radar Based on Differential Constraints Technique

Abstract:

When detecting low-attitude targets, the angular accuracy of the meter-wave radar will descend because of the multipath reflecting from ground. Since multipath signals can be regarded as multipath jamming coming from the mainlobe, we propose an angle measurement based on the mainlobe multipath jamming suppression through differential constraints technique. The weight of the new approach is obtained through certain constraints on the sum-difference beams, which can suppress the jamming and keep the curve of the monopulse ratio unchanged simultaneously. Then form sum-difference beams and calculate the ratio of the monopulse ratio of the target. Finally, obtain the angle of the target through the determination of the smallest difference between the monopulse ratio of the target and the quiescent monopulse ratio. The method proposed in this paper can preserve good precision of the measurement angle. The result is verified by computer simulation.

You might also be interested in these eBooks

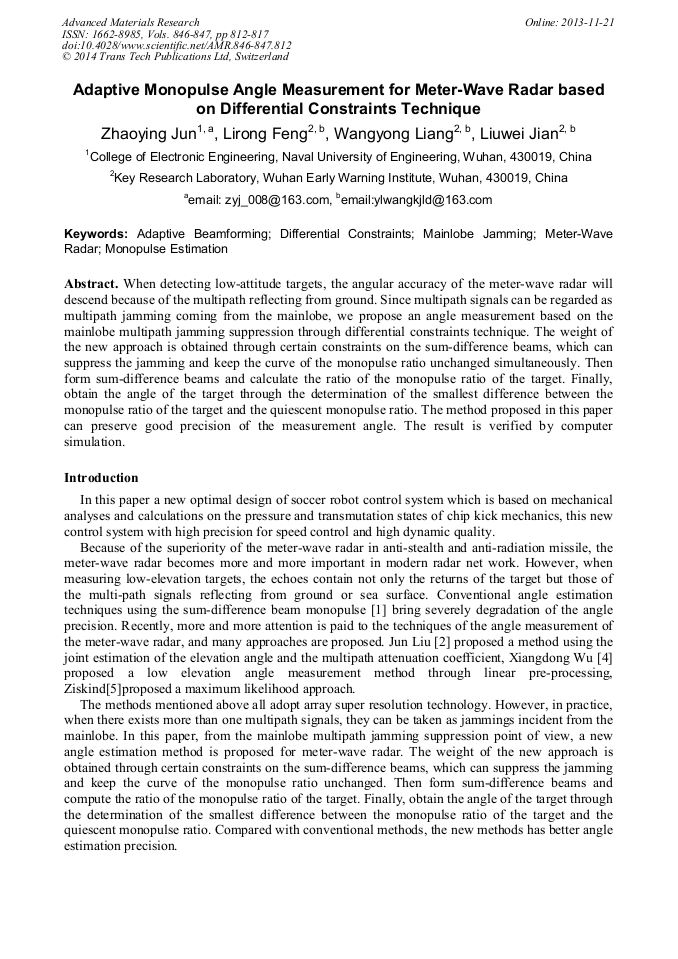

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 846-847)

Pages:

812-817

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.846-847.812

Citation:

Cite this paper

Online since:

November 2013

Authors:

Zhao Ying Jun*, Li Rong Feng, Wang Yong Liang, Liu Wei Jian

Keywords:

Adaptive Beamforming, Differential Constraints, Mainlobe Jamming, Meter-Wave Radar, Monopulse Estimation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Kai-Bor Y, Murrow D J. Adaptive digital beamforming for angle estimation in jamming [J]. IEEE Trans Aerosp Electron Syst. 2001: 37(2): 508-523.

DOI: 10.1109/7.937465

Google Scholar

[2] Jun Liu, Zheng Liu, Yunfo Liu. Elevation Angle and Multipath Fading Coefficient Joint Estimation Algorithm in VHF Radar[J]. Journal of Electronics & Information Technology, 2011: 33(1) : 33-37.

Google Scholar

[3] Xiangdong Wu, Shouhong Zhang, Dong Mei. An aigorithm based on liner preprocessing for meter-wave rada to a target at low altitude[J]. Acta Electronica Sinica. 2006: 34(9): 1668-1671.

Google Scholar

[4] Ziskind I, Wax M. Maximum likelihood localization of multiple sources by alternating projection[J]. IEEE Transaction on Acoustics. Speech and Signal Processing. 1988: 36(10): 1553-1560.

DOI: 10.1109/29.7543

Google Scholar

[5] Zoltowski M, Haber F. A vector space approach to direction finding in a coherent multipath environment [J]. IEEE Transaction on Antennas and Propagation. 1986: 34(9): 1069-1079.

DOI: 10.1109/tap.1986.1143956

Google Scholar

[6] Yicheng Jiang, Chunxi Yu. A Novel Approach for Angle Measuring Precision Improvement in Monopulse Radar System [J]. Radar Science and Tecnology. 2009: 7(5): 380-381.

Google Scholar
