Corrosion Behavior of Zn and Cu as Grounding Material in Shanbei Soil Solution

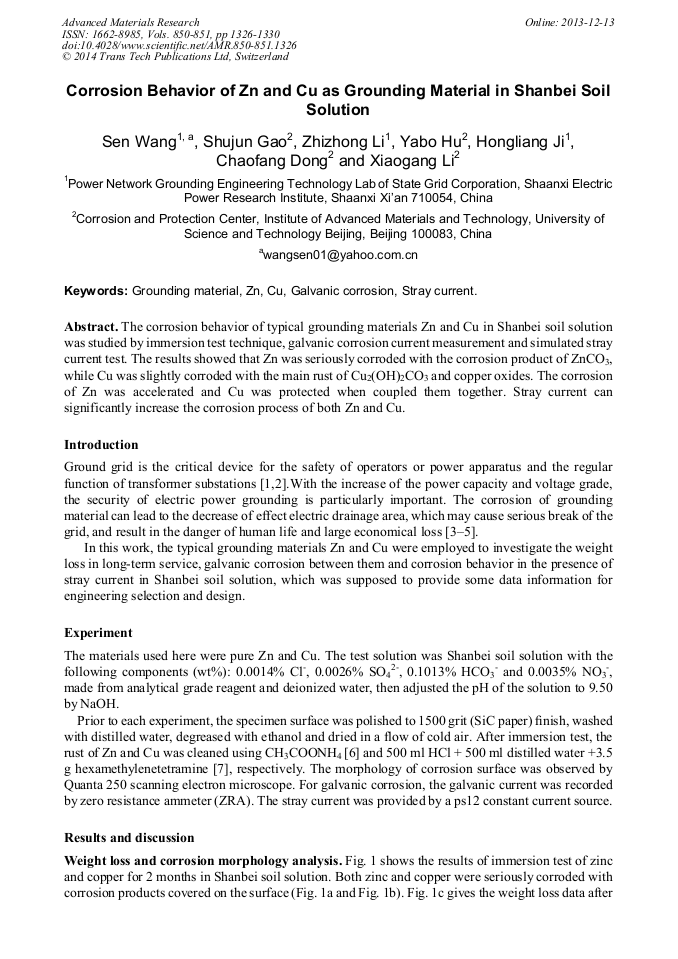

Article Preview

Abstract:

The corrosion behavior of typical grounding materials Zn and Cu in Shanbei soil solution was studied by immersion test technique, galvanic corrosion current measurement and simulated stray current test. The results showed that Zn was seriously corroded with the corrosion product of ZnCO₃, while Cu was slightly corroded with the main rust of Cu₂(OH)₂CO₃ and copper oxides. The corrosion of Zn was accelerated and Cu was protected when coupled them together. Stray current can significantly increase the corrosion process of both Zn and Cu.

You might also be interested in these eBooks

Advances in Applied Sciences and Manufacturing

Info:

Periodical:

Advanced Materials Research (Volumes 850-851)

Pages:

1326-1330

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.850-851.1326

Citation:

Cite this paper

Online since:

December 2013

Authors:

Seng Wang, Shu Jun Gao*, Zhi Zhong Li, Ya Bo Hu, Hong Liang Ji, Chao Fang Dong, Xiao Gang Li

Keywords:

Cu, Galvanic Corrosion, Grounding Material, Stray Current, Zn

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Y. Liu, X. Cui, Z.B. Zhao, A magnetic detecting and evaluation method of substation's grounding grids with break and corrosion, Frontiers of Electrical and Electronic Engineering in China, 5 (2010) 501-504.

DOI: 10.1007/s11460-010-0096-9

[2] S.C. Lim, C. Gomes, M.Z.A. Ab Kadir, Electrical earthing in troubled environment, Electrical Power and Energy Systems 47 (2013) 117-128.

DOI: 10.1016/j.ijepes.2012.10.058

[3] E.S. Ibrahim, Corrosion control in electric power systems, Electric Power Systems Research 52 (1999) 9-17.

DOI: 10.1016/s0378-7796(98)00133-3

[4] A.P. Akol'zin, L.A. Beketaeva, A. D. Davydov, V. E. Kopytin, K. V. Rybalka, Anodic grounding electrodes made of electroconducting elastomers: Estimating their electrochemical parameters and reliability by the operational impedance method, Russian Journal of Electrochemistry, 6 (2000).

DOI: 10.1007/bf02757534

[5] L.J. Feng, A.J. YAN, Y.Q. Meng, J.L. Hou, Investigation on corrosion of yttrium-doped magnesium-based sacrificial anode in ground grid protection, Journal of Rare Earths, 28 (2010) 389-392.

DOI: 10.1016/s1002-0721(10)60351-1

[6] X.L. Shang, B. Zhang, E.H. Han, W. Ke, The effect of 0. 4wt. % Mn addition on the localized corrosion behaviour of zinc in a long-term experiment, Electrochimica Acta 65 (2012) 294-304.

DOI: 10.1016/j.electacta.2012.01.078

[7] C.L. Li, Y.T. Ma, Y. Li, F.H. Wang, EIS monitoring study of atmospheric corrosion under variable relative humidity, Corrosion Science 52 (2010) 3677-3686.

DOI: 10.1016/j.corsci.2010.07.018

[8] T.H. Merkel, H.J. Groß, W. Werner, T. Dahlke, S. Reicherter, G. Beuchle, S.H. Eberle, Copper corrosion by-product release in long-term stagnation experiments, Water Research, 36 (2002) 1547-1555.

DOI: 10.1016/s0043-1354(01)00366-9

[9] V. Lair, H. Antony, L. Legrand, A. Chaussé, Electrochemical reduction of ferric corrosion products and evaluation of galvanic coupling with iron, Corrosion Science, 48 (2006) 2050-(2063).

DOI: 10.1016/j.corsci.2005.06.013

[10] E. Tada, K. Sugawara, H. Kaneko, Distribution of pH during galvanic corrosion of a Zn/steel couple, Electrochimica Acta 49 (2004) 1019-1026.

DOI: 10.1016/j.electacta.2003.10.012

[11] W.B. Xue, C. Wang, H. Tian, Y.C. Lai, Corrosion behaviors and galvanic studies of microarc oxidation films on Al–Zn–Mg–Cu alloy, Surface and Coatings Technology 201 (2007) 8695-8701.

DOI: 10.1016/j.surfcoat.2006.10.029

[12] Luca Bertolini, Maddalena Carsana, Pietro Pedeferri, Corrosion behaviour of steel in concrete in the presence of stray current, Corrosion Science 49 (2007) 1056-1068.

DOI: 10.1016/j.corsci.2006.05.048

[13] D.K. Kim, S. Muralidharan, T.H. Ha, J.H. Bae, Y.C. Ha, H.G. Lee, J.D. Scantlebury, Electrochemical studies on the alternating current corrosion of mild steel under cathodic protection condition in marine environments, Electrochimica Acta, 51 (2006).

DOI: 10.1016/j.electacta.2006.01.054

[14] A. Drach, I. Tsukrov, J. DeCew, J. Aufrecht, A. Grohbauer, U. Hofmann, Field studies of corrosion behaviour of copper alloys in natural seawater, Corrosion Science 76 (2013) 453-464.

DOI: 10.1016/j.corsci.2013.07.019

[15] C.H. Lu, W.L. Jin, R.G. Liu, Reinforcement corrosion-induced cover cracking and its time prediction for reinforced concrete structures, Corrosion Science 53 (2011) 1337-1347.

DOI: 10.1016/j.corsci.2010.12.026
