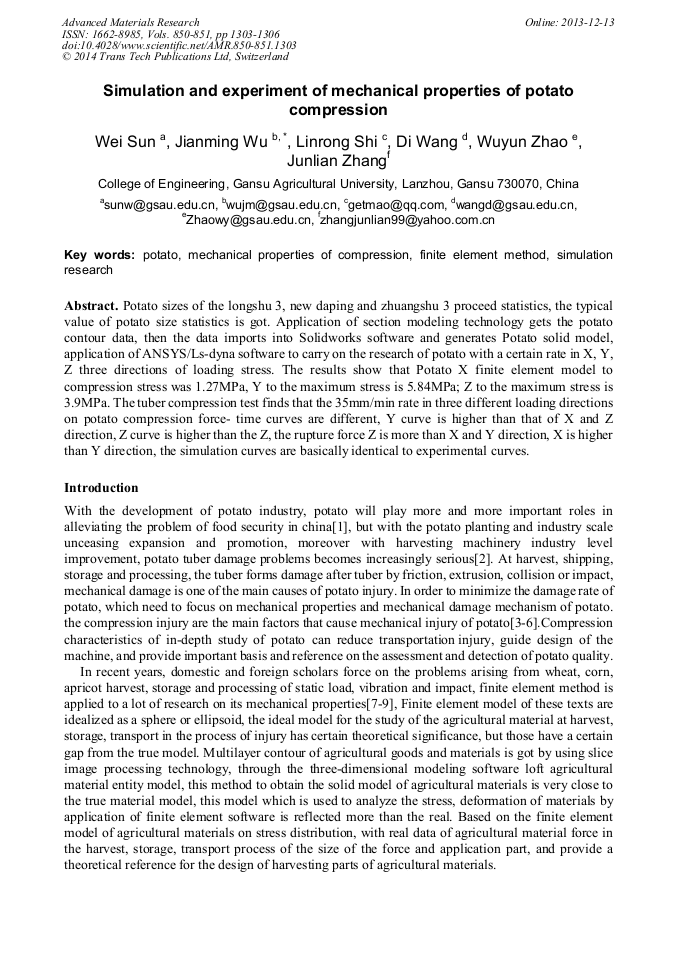

Simulation and Experiment of Mechanical Properties of Potato Compression

Abstract:

Potato sizes of the longshu 3, new daping and zhuangshu 3 proceed statistics, the typical value of potato size statistics is got. Application of section modeling technology gets the potato contour data, then the data imports into Solidworks software and generates Potato solid model, application of ANSYS/Ls-dyna software to carry on the research of potato with a certain rate in X, Y, Z three directions of loading stress. The results show that Potato X finite element model to compression stress was 1.27MPa, Y to the maximum stress is 5.84MPa; Z to the maximum stress is 3.9MPa. The tuber compression test finds that the 35mm/min rate in three different loading directions on potato compression force-time curves are different, Y curve is higher than that of X and Z direction, Z curve is higher than the Z, the rupture force Z is more than X and Y direction, X is higher than Y direction, the simulation curves are basically identical to experimental curves.

• Periodical: Advanced Materials Research (Volumes 850-851)
• Pages: 1303-1306
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.850-851.1303
• Online since: December 2013
• Authors: Wei Sun, Jian Ming Wu*, Lin Rong Shi, Di Wang, Wu Yun Zhao, Jun Lian Zhang
• Keywords: Finite Element Method (FEM), Mechanical Properties of Compression, Potato, Simulation Research

References

[1] D.Y. Qu, Xie Kaiyun, L.P. Jin, et al: Chinese agricultural science, vol. (2005) no. 2, pp.358-362. (In Chinese).

[2] J.H. Zhang, L.P. Jin, K.Y. Xie, et al: Chinese agricultural science, vol. 42 (2009) no. 1, pp.198-203. (In Chinese).

[3] W.B. Guo, C.G. Wang, F. Wang, et al: Journal of Chinese Agricultural Mechanization, (2009) no. 12, pp.133-137. (In Chinese).

[4] Q.Z. Li, W.J. Ma, Z.C. Feng: Agricultural economy, (2008) no. 3, pp.77-81. (In Chinese).

[5] J.C. Liu: Mechanical Research & Applications, (2007) no. 5, pp.6-7. (In Chinese).

[6] R. Parks, G. Anderson, Z. Dou: Advances in Mechanics, vol. 20 (1990) no. 3, pp.425-430. (In Chinese).

[7] K.P. Zhang, J.L. Huang, M. Yang, et al: Transactions of the CSAE, vol. 26 (2010) no. 6, pp.352-356. (In Chinese).

[8] X.P. Li, L.X. Gao, F.L. Ma: Transactions of the Chinese Society for Agricultural Machinery, vol. 38 (2007) no. 10, pp.64-67. (In Chinese).

[9] X.Z. Wang, M. Wang: Transactions of the Chinese Society for Agricultural Machinery, vol. 39 (2008) no. 8, pp.84-88. (In Chinese).

[10] J.X. Jia: Key part of potato harvester design and experimental study (China Agricultural University, China 2006).

[11] J.O. Chesson, M. Brien: American Society Agriculture Engineering, (1969) no. 69, p.628.

[12] Y.Y. Sang, D.X. Zhang, M.M. Zhang: Journal of China Agricultural University. (2008) no. 1, pp.81-84. (In Chinese).

[13] H.Y. Yu, J.L. Qiao, Y.K. Xiao, et al: Journal of Jinlin University (Engineering and Technology Editon), vol. 41 (2011) no. 1, pp.283-284. (In Chinese).

[14] W.D. Guang, S.X. Jiang: Journal of Yunnan Agricultural University, vol. 5 (1990) no. 3, pp.171-176. (In Chinese).

[15] Mohsenin NN. Physical properties of plant and animal material. 2nd ed. New York: Gordon and Breach Science Pub, 1986. 154-169.
